Reassembling the Workstation 5

The following procedure describes how to reassemble the Workstation 5.
If the optional Integrated Fingerprint Reader or other option is installed in
1.
the top cover, refer to Figure 4-31, below and connect the interface cable to
J10. Proceed to Step 2 if no options are installed in the top cover. Place the
cable between the chassis heatsink and base to ensure it does not interfere
with the LCD/Touchscreen Assembly. The cable can also be placed on the
right side of the base if desired. Place the top cover directly behind the
base.

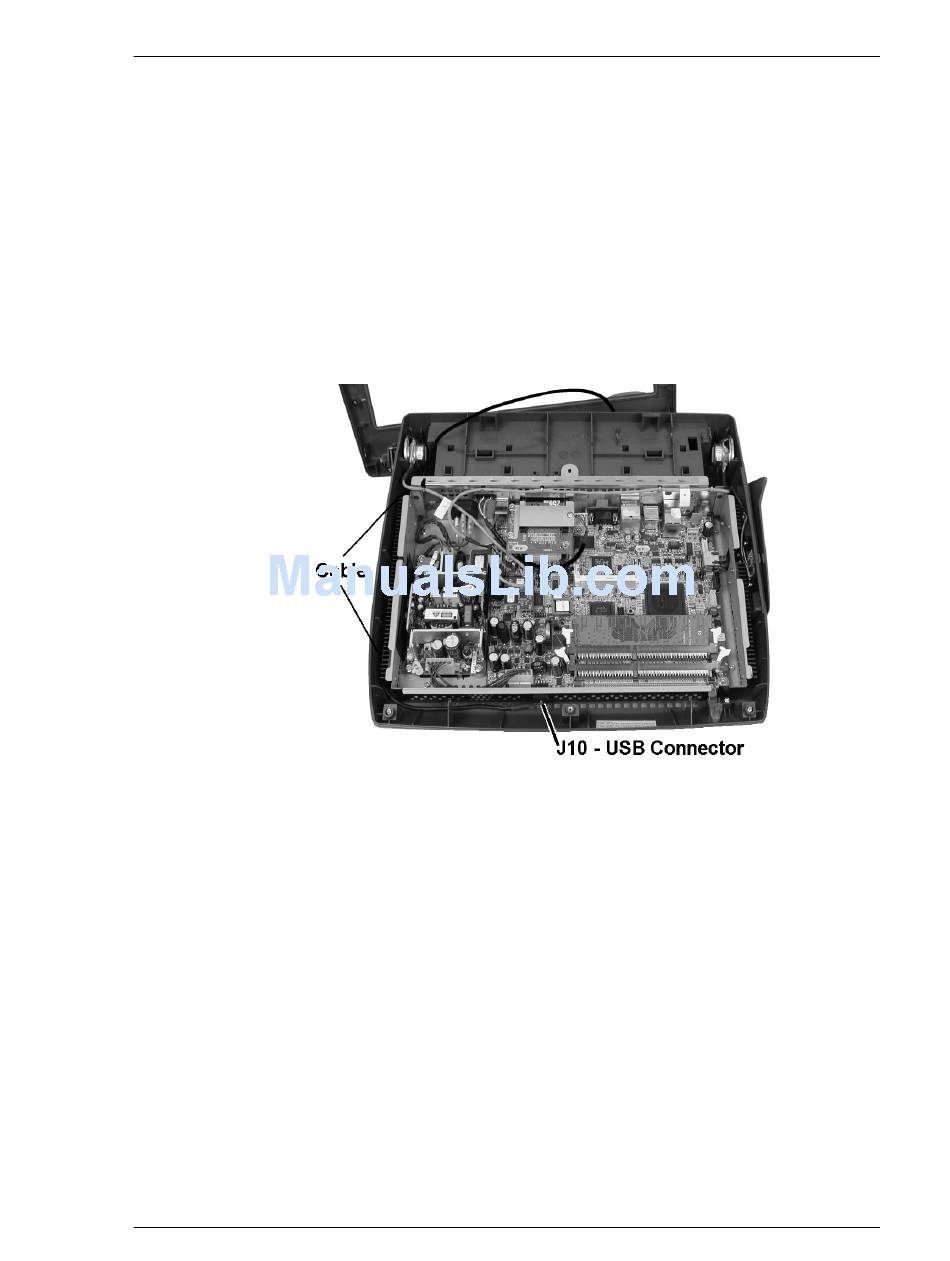

Figure 4-31: Installing the Optional Finger Print Reader Cable
2. Place the LCD/Touchscreen assembly to the right of the base and install the
LCD/Touchscreen Assembly Cables. Refer to Figure 4-32, on the next
page.
