Remove and Replace the Workstation 5 FRUs
The System Board

Mini-PCI Wireless Card

This section describes how to remove the wireless card and move it to a
different new. Two cards, the obsolete EZAIX or replacement Abocom may be
found.
Removing the Wireless Card
Remove the antenna cable(s) from the Wireless Card, then release the side
1.
retention clips to allow the board to 'flip-up' to a position where it can be
removed from the connector.

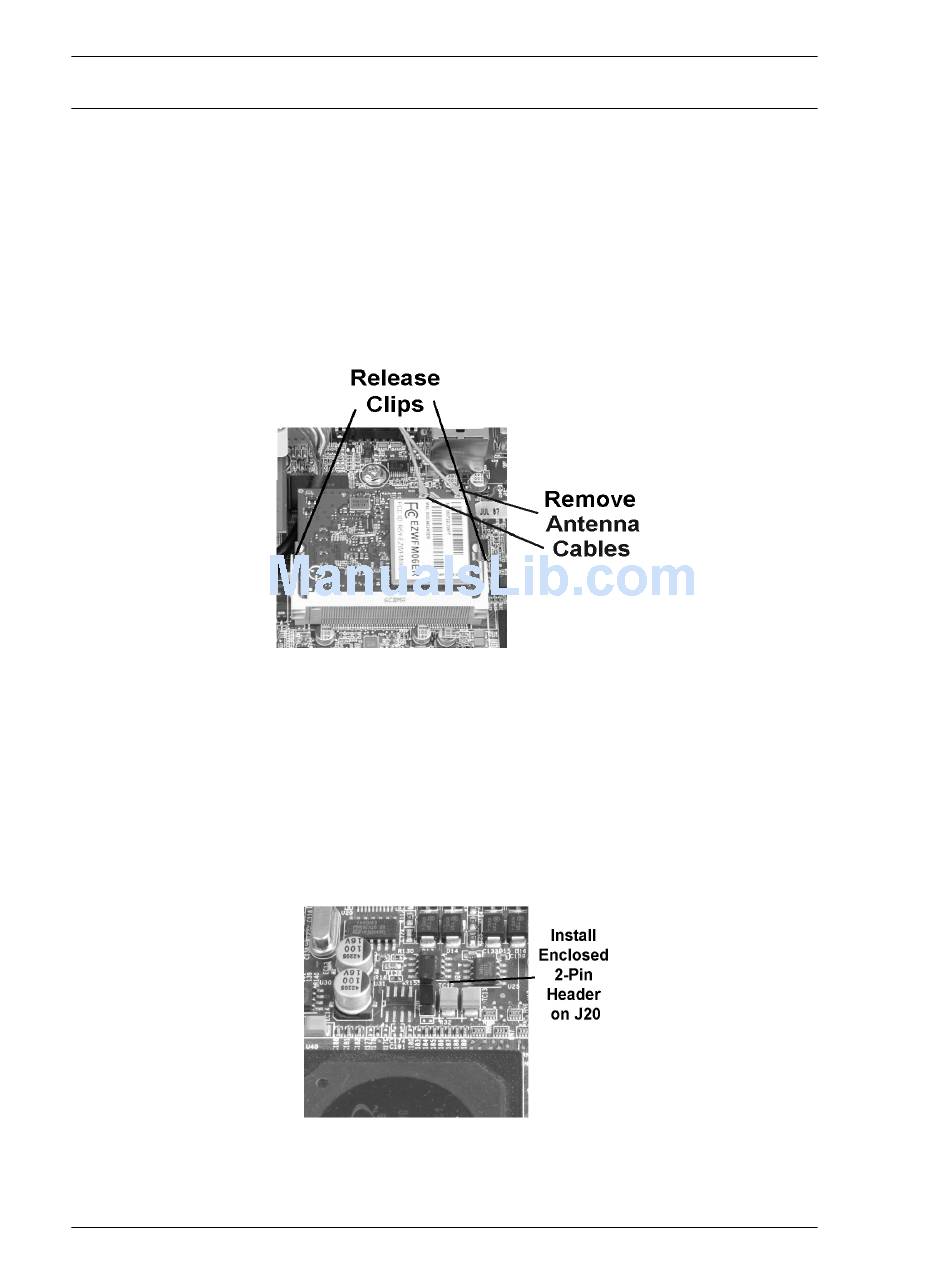

Figure 4-27: Removing the Mini-PCI Wireless Card
Remove the the 2-pin header from J20, located near the processor.
2.
Install the wireless card in the replacement system by starting the board at a
3.
30 degree angle relative to the socket. When the card is fully seated, rotate
it downward until the side rails of the socket lock the card in place.
For wireless either card, you must move the 2-pin header to J20 on the
4.
replacement board, as shown in the image below.
Figure 4-28: Installing the PCI Configuration Jumper
4-24 Workstation 5 Field Service Guide
