DDR Memory

This section describes how to remove or replace a DDR DIMM.
Refer to Figure 4-22, below. Rotate each retention clip away from the
1.
socket. As you do this, the DIMM will lift out of the socket.

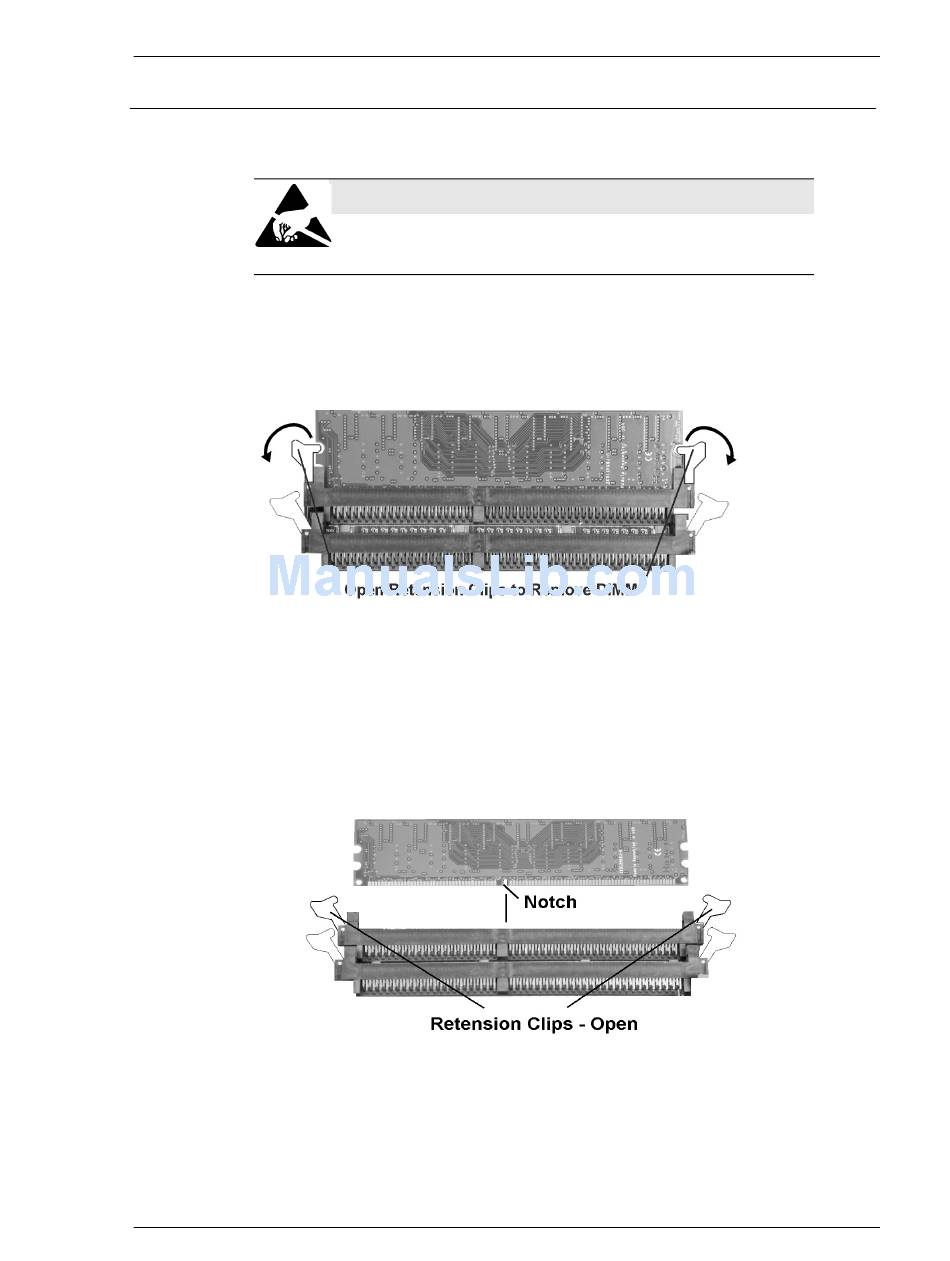

Figure 4-22: Removing a DIMM from the System Board
To install a DIMM, make sure each retention clip is in the open position.
2.
The notch on the DIMM must line up with a corresponding land in the
socket. Place the DIMM in the socket. Press down on each side of the
DIMM to lock the retention clips in place
Workstation 5 Field Service Guide
Remove and Replace the Workstation 5 FRUs
STATIC SENSITIVE DEVICES
Always follow ESD procedures when installing or
removing DIMMs.
Figure 4-23: Installing a DIMM
The System Board
4-21
