Casework and Mag Card Reader

Figure 1-1, below illustrates all plastic components and the Mag Stripe Reader
Assembly.

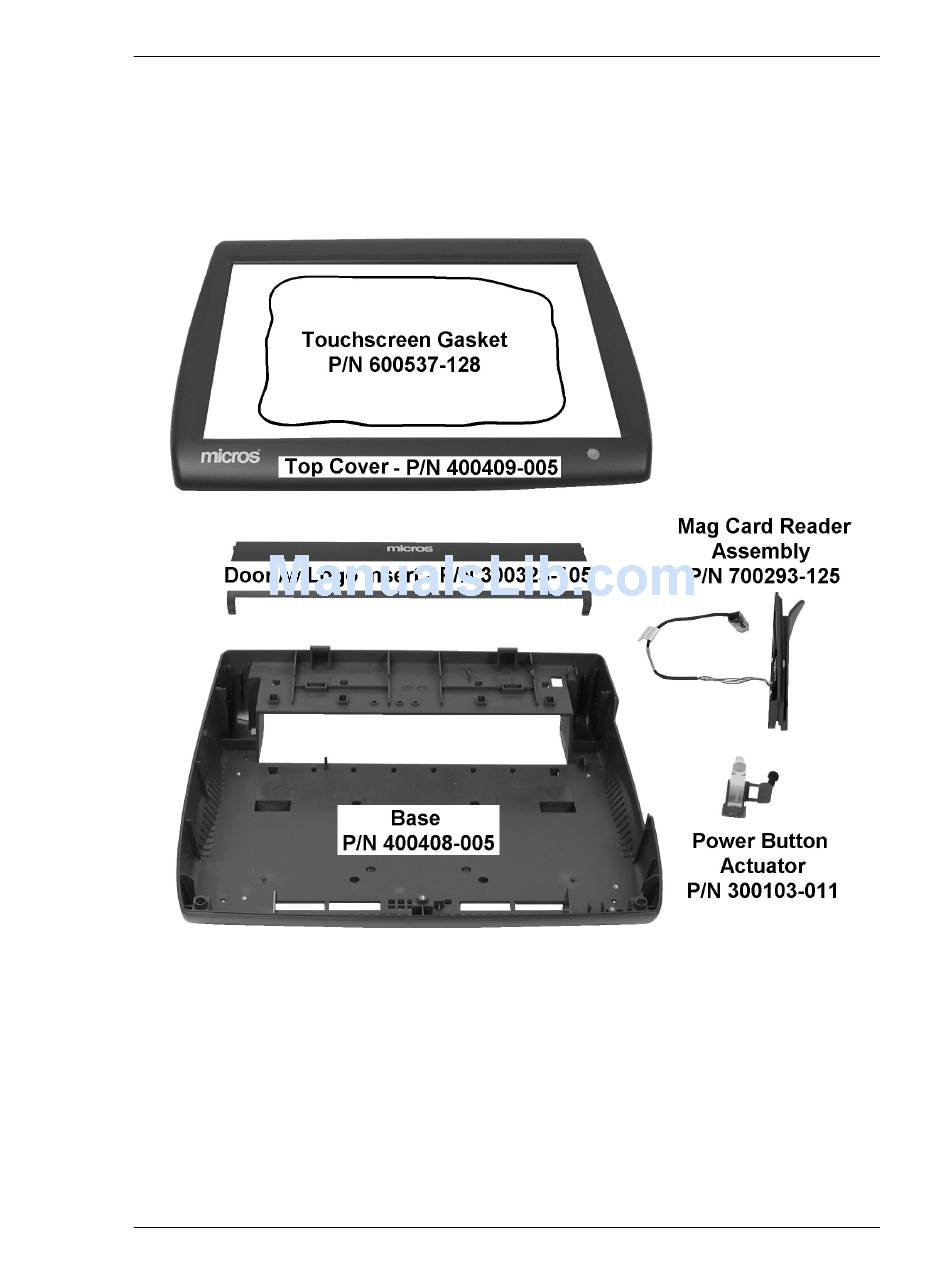

Figure 1-1: Workstation 5 Casework and Mag Card Reader
•
Touchscreen Gasket, Workstation 5 - P/N 600537-128
The touchscreen gasket is pressed into a groove around the inside of the

Top Cover.

•
Top Cover, Workstation 5 - P/N 400409-005
Includes Operator LED lens and captive mounting screws pre-installed.
Touchscreen Gasket not included.
Workstation 5 Field Service Guide
Introduction to the WS5 FRUs

Casework and Mag Card Reader

1-3
