Workstation 5 System Board Technical Descriptions
LX800 Processor and TFT Controller
LX800 Processor and TFT Controller
REF: ABRD88 - Sheets 1, 2, 5 and 6

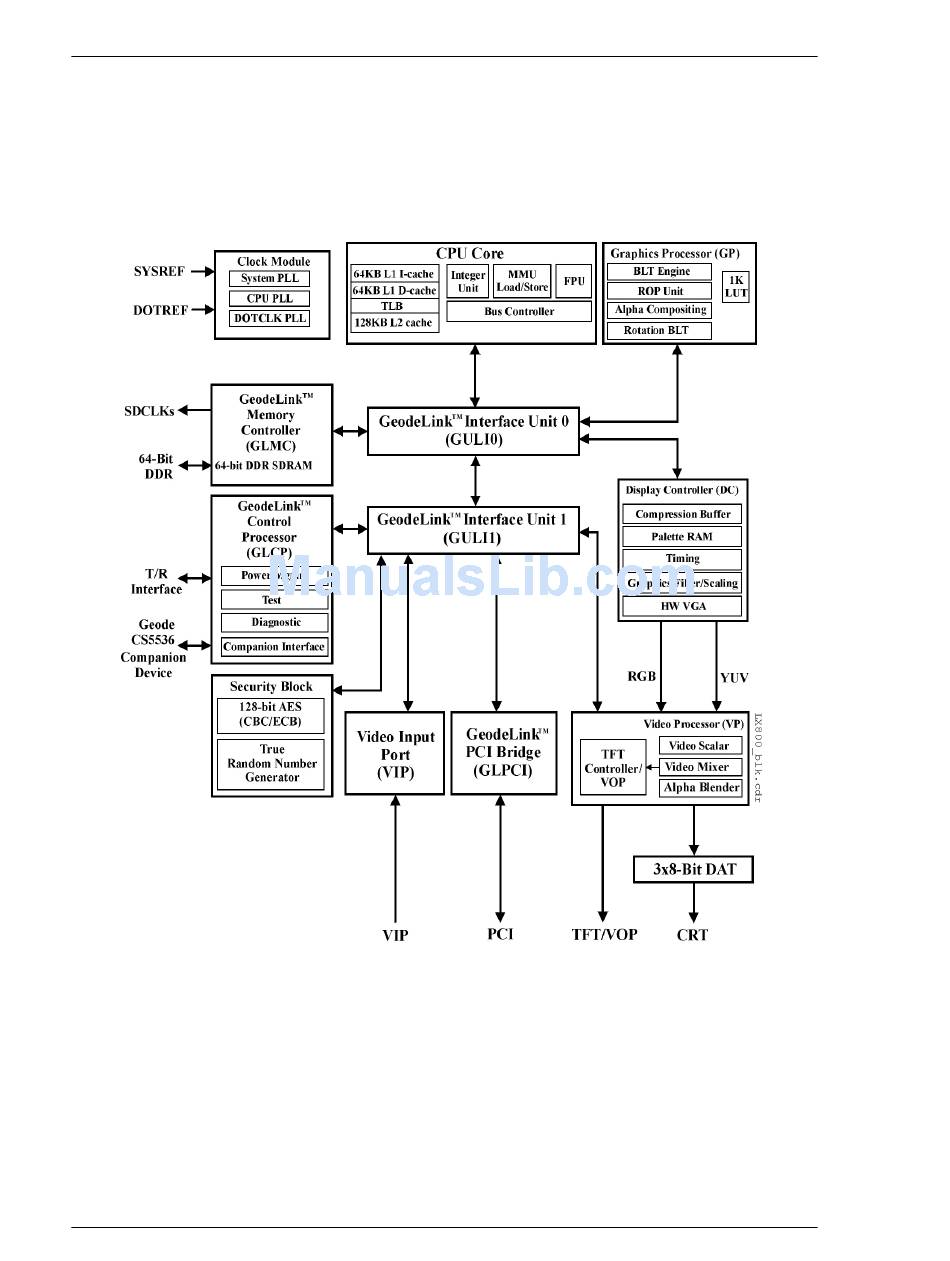

Figure 2-3 displays a block diagram of the LX800 processor.
Figure 2-3: AMD Geode LX800 Processor/TFT Controller Block Diagram
2-4
Workstation 5 Field Service Guide
