Remove and Replace the Workstation 5 FRUs
LCD/Touchscreen Procedures

LCD Panel

Removal
Figure 4-12 below shows three how to remove the LCD Panel from the
LCD/Touchscreen assembly.
Place assembly face down. Remove (2) Backlight Inverter Cables from the
1.
Backlight Inverter Board, and the LCD Data Cable from the LCD Panel.
Remove the Touchscreen Ribbon cable from the cable guide underneath
the Backlight Inverter Board.
Loosen the four captive screws that fasten the bracket to the LCD Plate.
2.
Separate the LCD Panel and Bracket from the LCD Plate, carefully feeding
3.
the backlight cables through each cut-out in the plate.
4-12

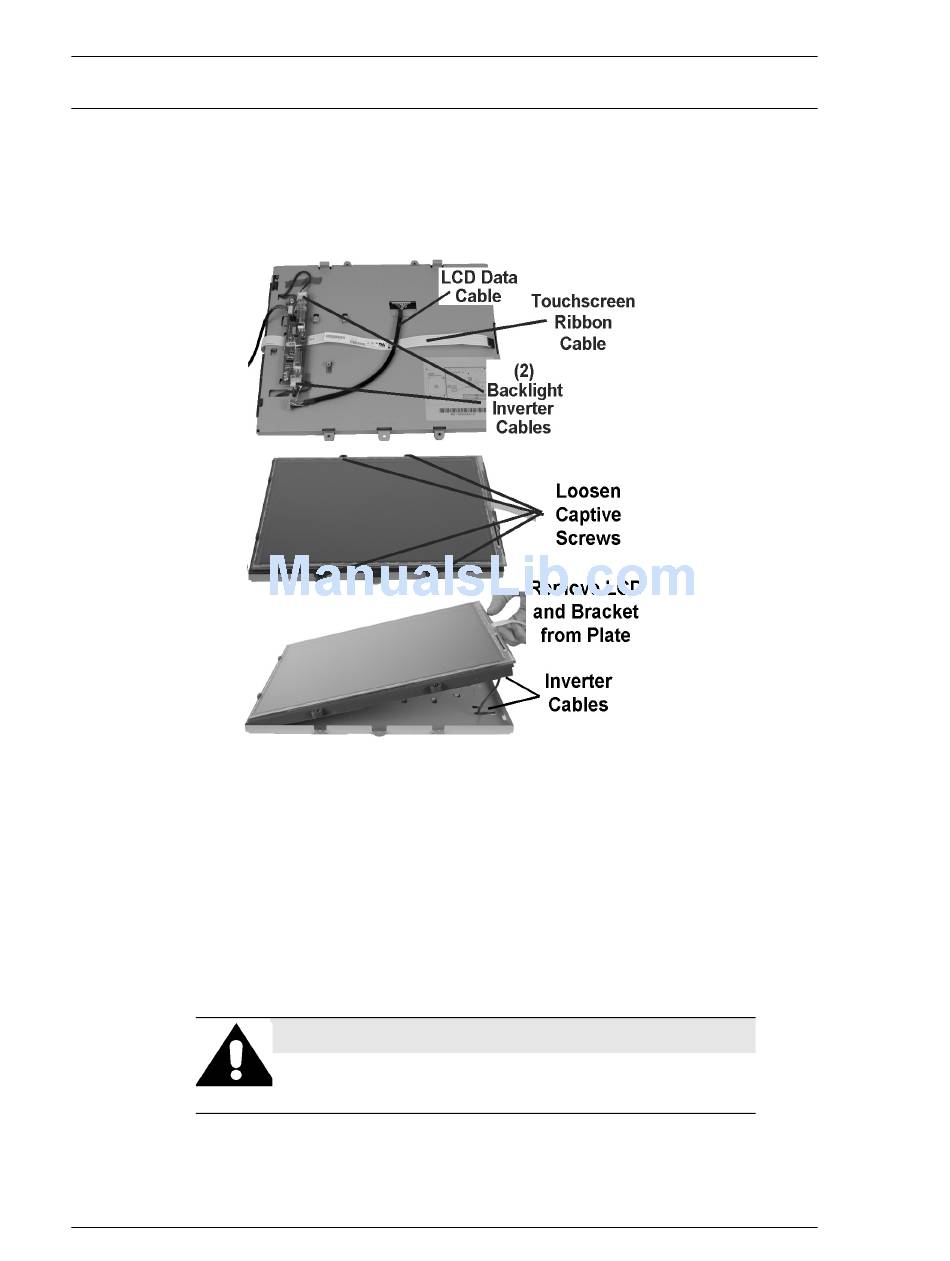

Figure 4-12: Removing the LCD Panel
VERMONT LCD NOTICE
This product contains mercury and may only be disposed
of after proper removal and disposal of the lamps.
Workstation 5 Field Service Guide
