Remove and Replace the Workstation 5 FRUs
LCD/Touchscreen Procedures

Touchscreen

Removal
This procedure applies to both the resistive and optional capacitive
touchscreen glass. Refer to Figure 4-10, and work from the top towards the
bottom of the illustration.
Place the assembly face down and remove the touchscreen ribbon cable
1.
from the cable guide under the Backlight Inverter Board.
If the Capacitive Touchscreen option is installed, remove the
o
touchscreen ribbon cable from Capacitive Touchscreen Interface
Board.
Place the assembly face up, release the plastic tab and remove the
2.
touchscreen glass.
4-10

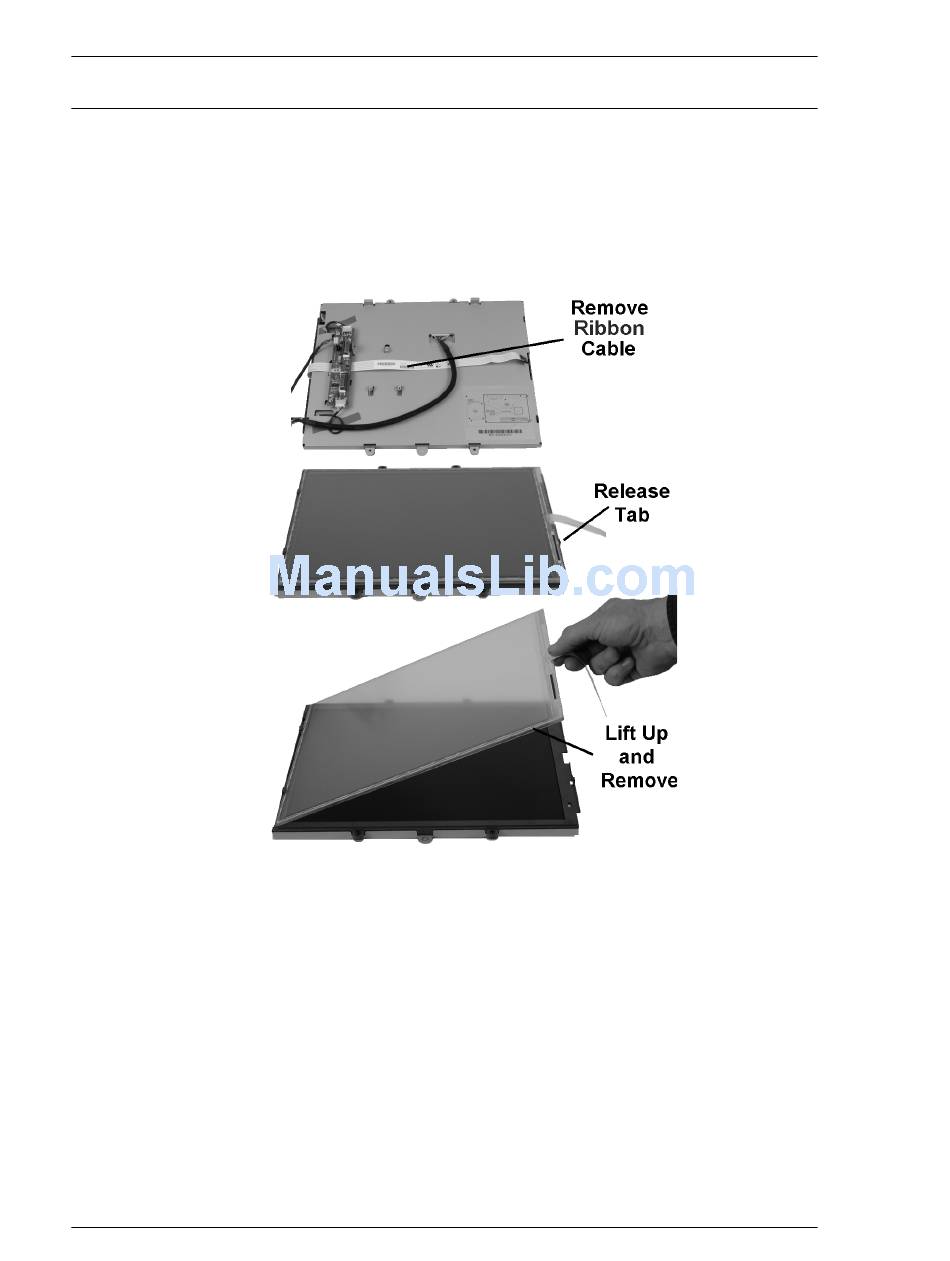

Figure 4-10: Removing the Touchscreen
Workstation 5 Field Service Guide
