Installation
1. Orient the touchscreen glass with the touch sensitive surface and cable on
the top side as shown below.
Place the glass panel in the bracket as shown at the bottom of Figure 4-10
2.
then rotate downward until the clip locks the glass in place.
3. Be sure to route the touchscreen ribbon cable through the cable guide under
the Backlight Inverter Board. Failure to do this can cause the cable to come
in contact with the Backlight Inverter Board. Refer to another view of this
cable.
If the Capacitive Touchscreen option is installed, place the ribbon cable
o
under the Capacitive Interface Board and connect it to J1 as shown in
Figure 4-9.
See page 4-27 to reinstall the LCD/Touchscreen Assembly.
4.
Workstation 5 Field Service Guide
Remove and Replace the Workstation 5 FRUs

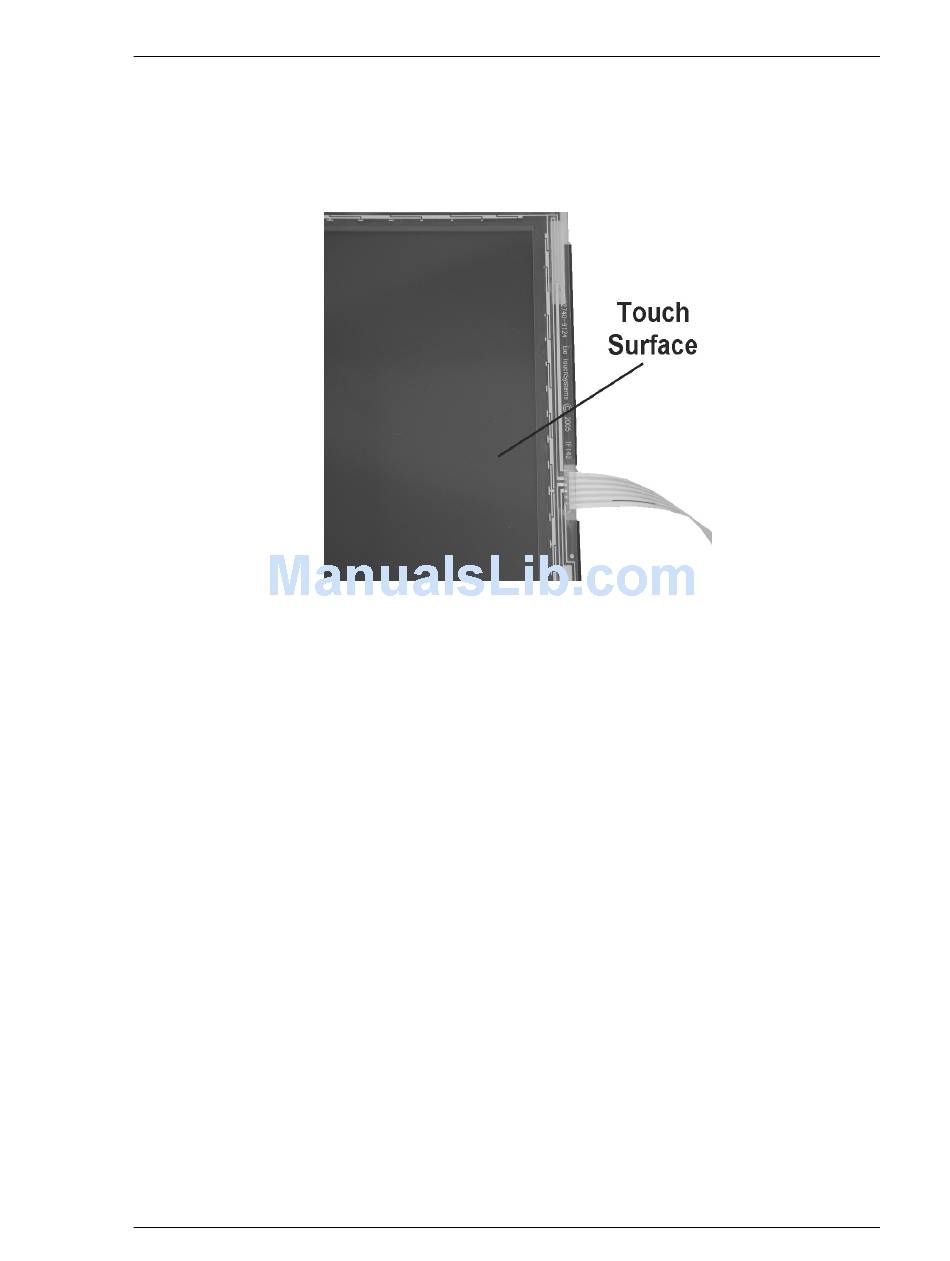

Figure 4-11: Touchscreen Orientation
LCD/Touchscreen Procedures
4-11
