Touchscreen Interface

Touchscreen Interface

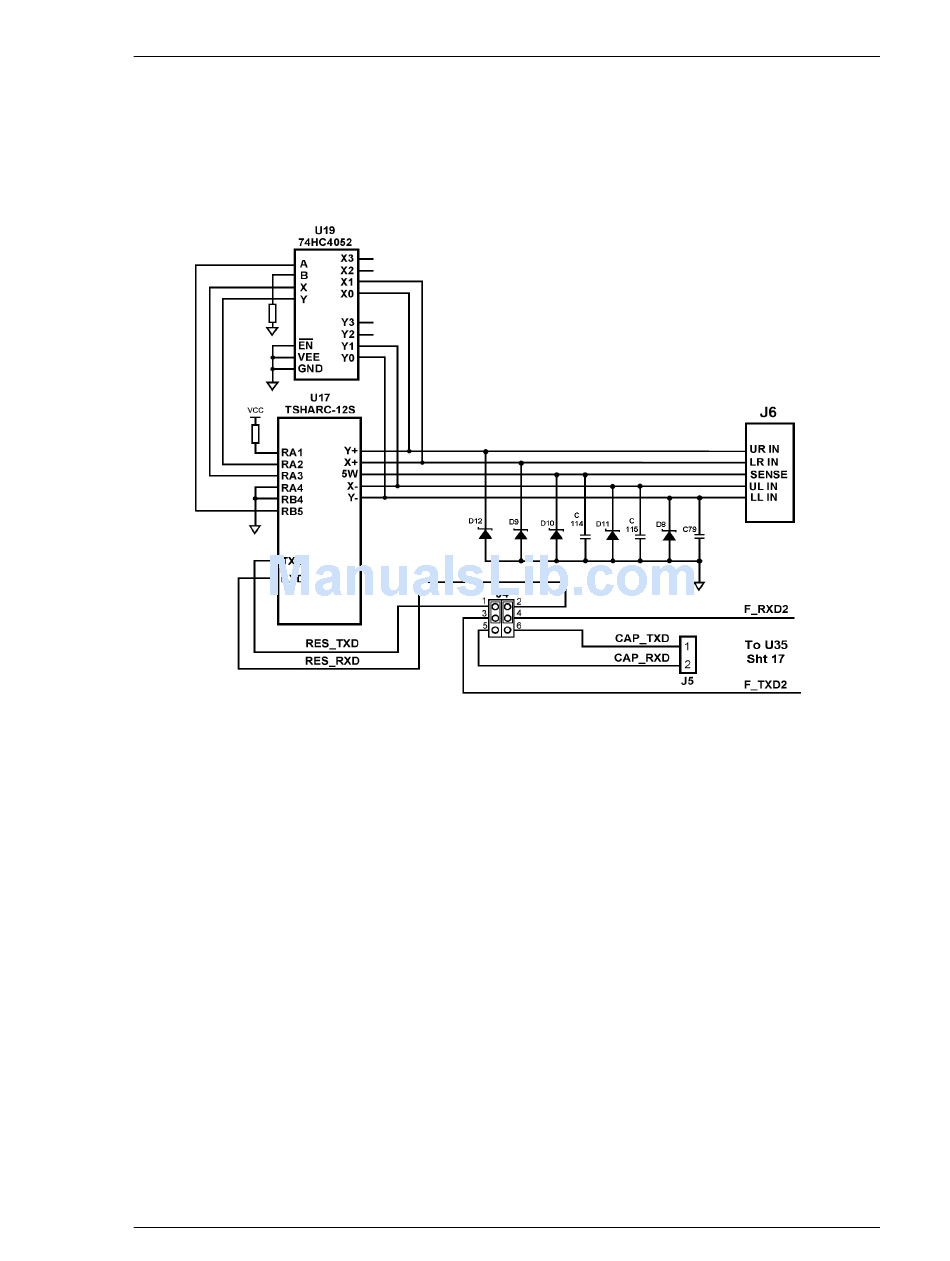

Figure 2-8 shows a block diagram of the system board resistive touchscreen
interface.
Figure 2-8: WS5 5-Wire Resistive Touchscreen Interface
U17, the Hampshire TSHARC-12S resistive touchscreen controller is a single
chip design, incorporating a microprocessor, A/D converter, UART, and
firmware. It supports only 5-wire resistive touchscreen and serial interface to
the host system.
The serial Receive/Transmit signals from U17 are routed to jumper block J4.
When a resistive touchscreen is installed, J4 is configured to route
RES_TXD
to and to which are fed to UART2 in U35 Super
F_TXD2 RES_RXD F_RXD2
IO #2.
When the optional Capacitive Touchscreen Interface Board is installed, the
jumpers are configured to route and to U35 instead of
CAP_TXD CAP_RXD
the resistive touchscreen controller.
Workstation 5 Field Service Guide 2-19
