Remove and Replace the Workstation 5 FRUs
The System Board
BIOS EEPROM
The Workstation 5 System Board BIOS EEPROM is located in a 32-pin PLCC
socket, U38. MICROS recommends that you use a chip removal tool similar to
that shown in the illustration below. This type of tool allows removal of the
chip without damage to the socket.

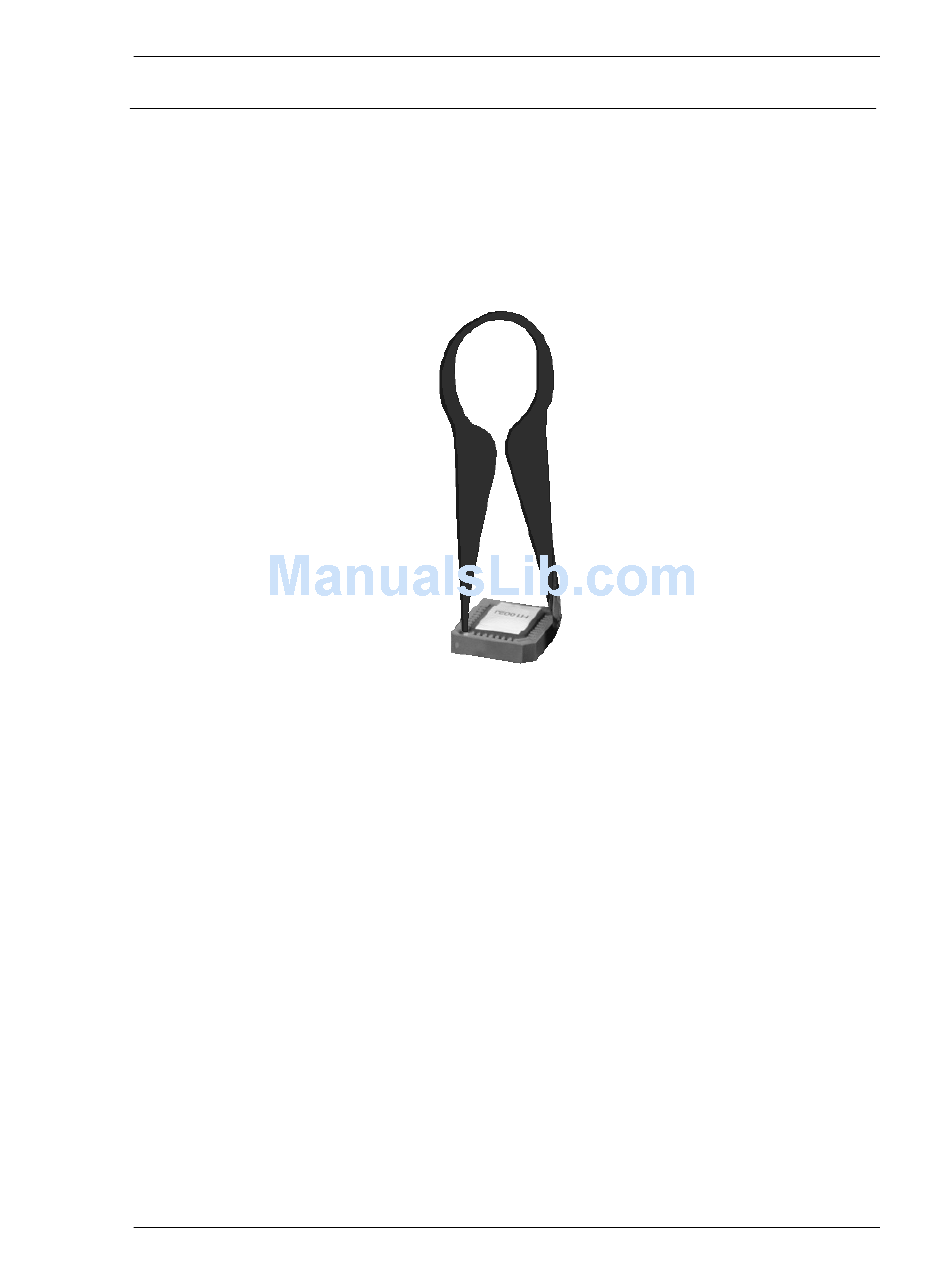

Figure 4-26: Recommended PLCC Removal Tool
Workstation 5 Field Service Guide
4-23
