■ Legal model

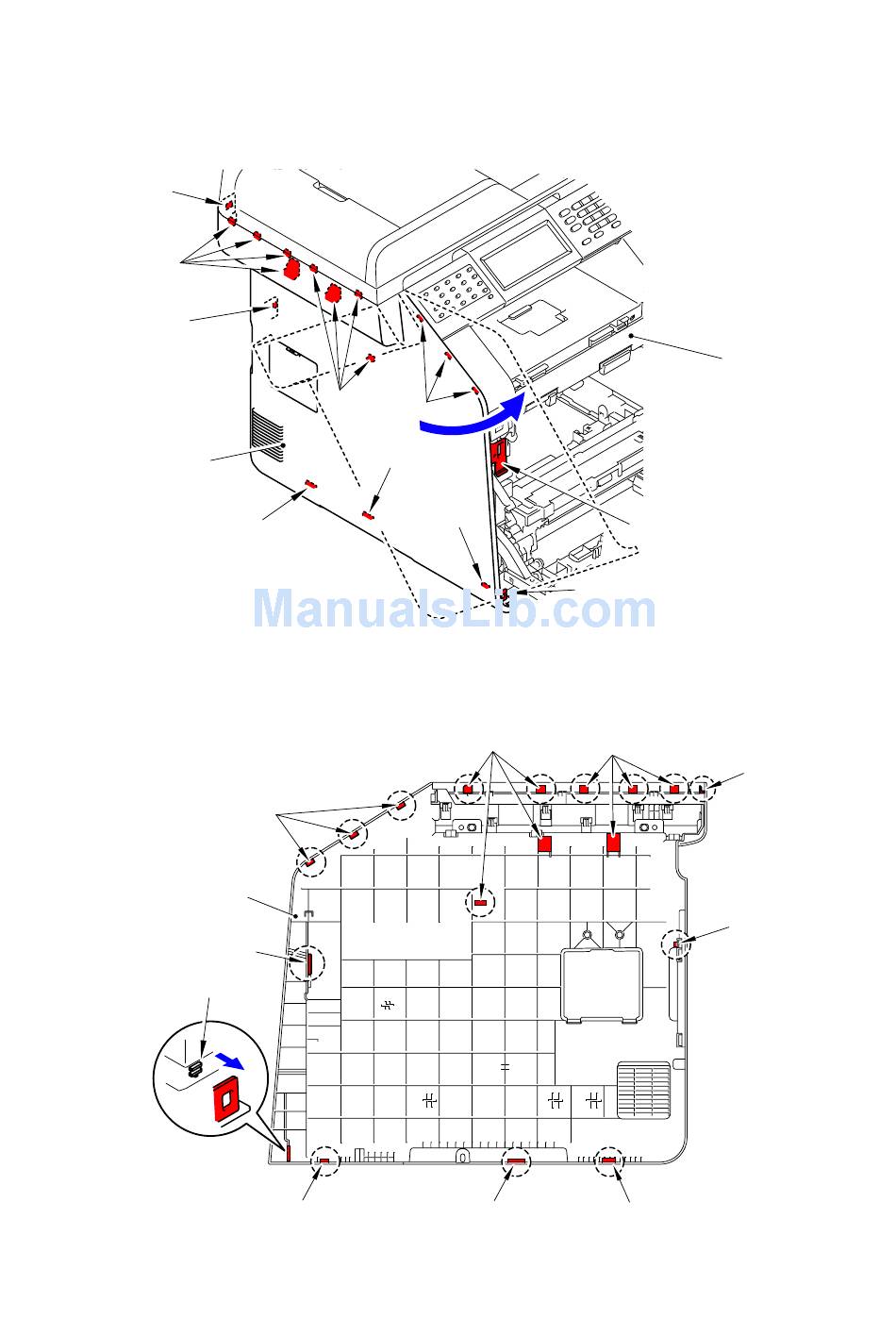

(10) Release the Hooks 1 and 2 at the same time, and then release the Hooks 3 to 6 in
numerical order. Release the Hook 7. Release the Hook 8 to remove the Side cover L
from the Main body.
Hook 8
Hook 8
Hook 6
Side cover L
Hook 4
* Inside of Side cover L
Hook 7
Side cover L
Hook 5
Hook 1
<Front>
Hook 8
Hook 7
Hook 3
Hook 2
Fig. 7-26
Hook 2
Fig. 7-27
7-16
Hook 5
Hook 1
Hook 8
Hook 8
Hook 4
Hook 3
Main body
<Front>
Hook 8
Hook 6
<Back>
