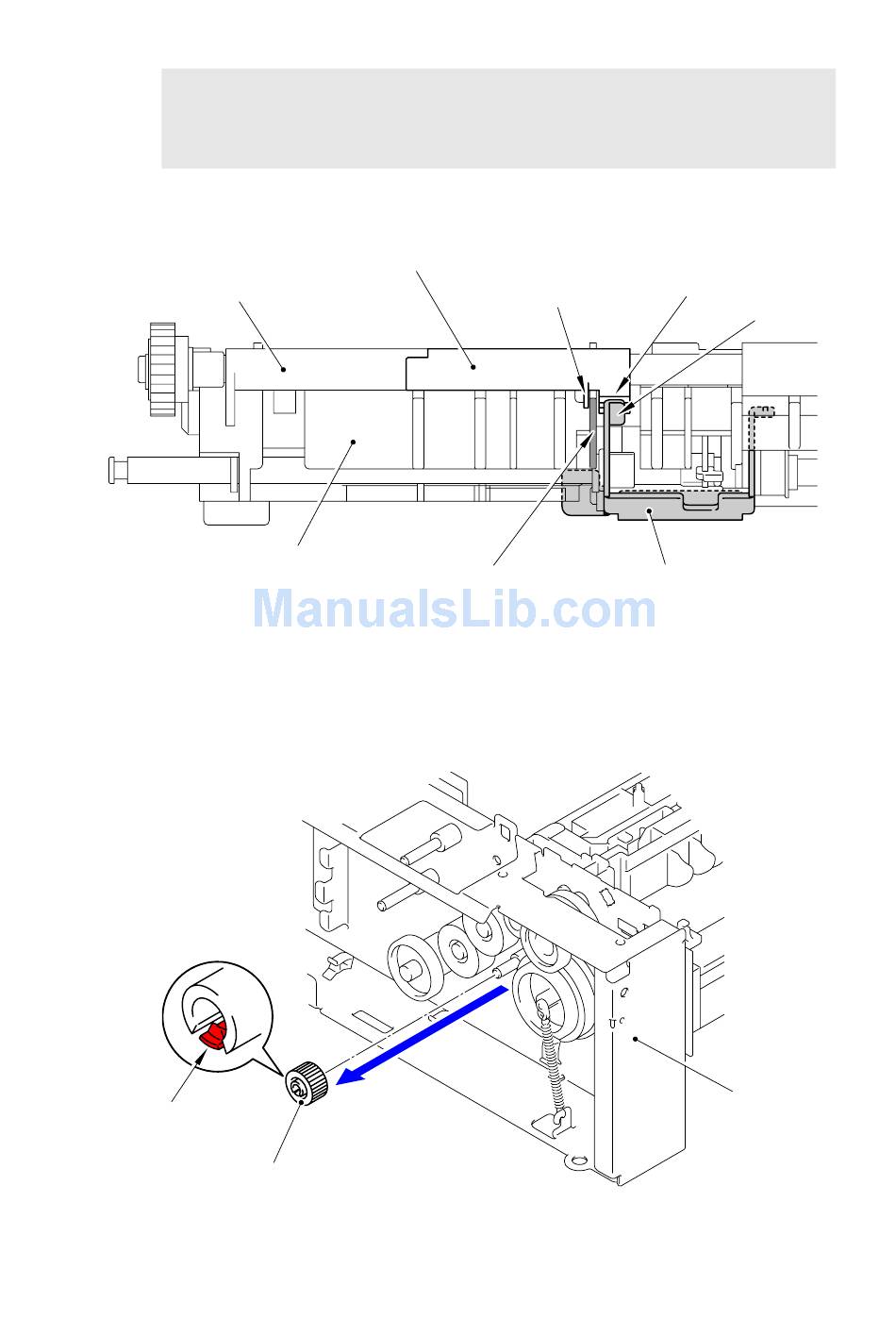

Assembling Note:
When assembling the F roller, be sure to assemble it in a way that the Rib of the T2
paper feed frame unit comes between "A" and "B" of the Lift lever B, and the lever of
the T2 paper feed holder unit comes in front of "B".
F roller
T2 paper feed frame unit
(10) Release the Hook to remove the Gear 20A from the T2 frame L unit.
Hook
Gear 20A
Lift lever B
"A"
Rib
Fig. 3-352
Fig. 3-353
3-228
"B"
lever
T2 paper feed holder unit
T2 frame L unit
