Brother 09055CDN Service Manual page 305

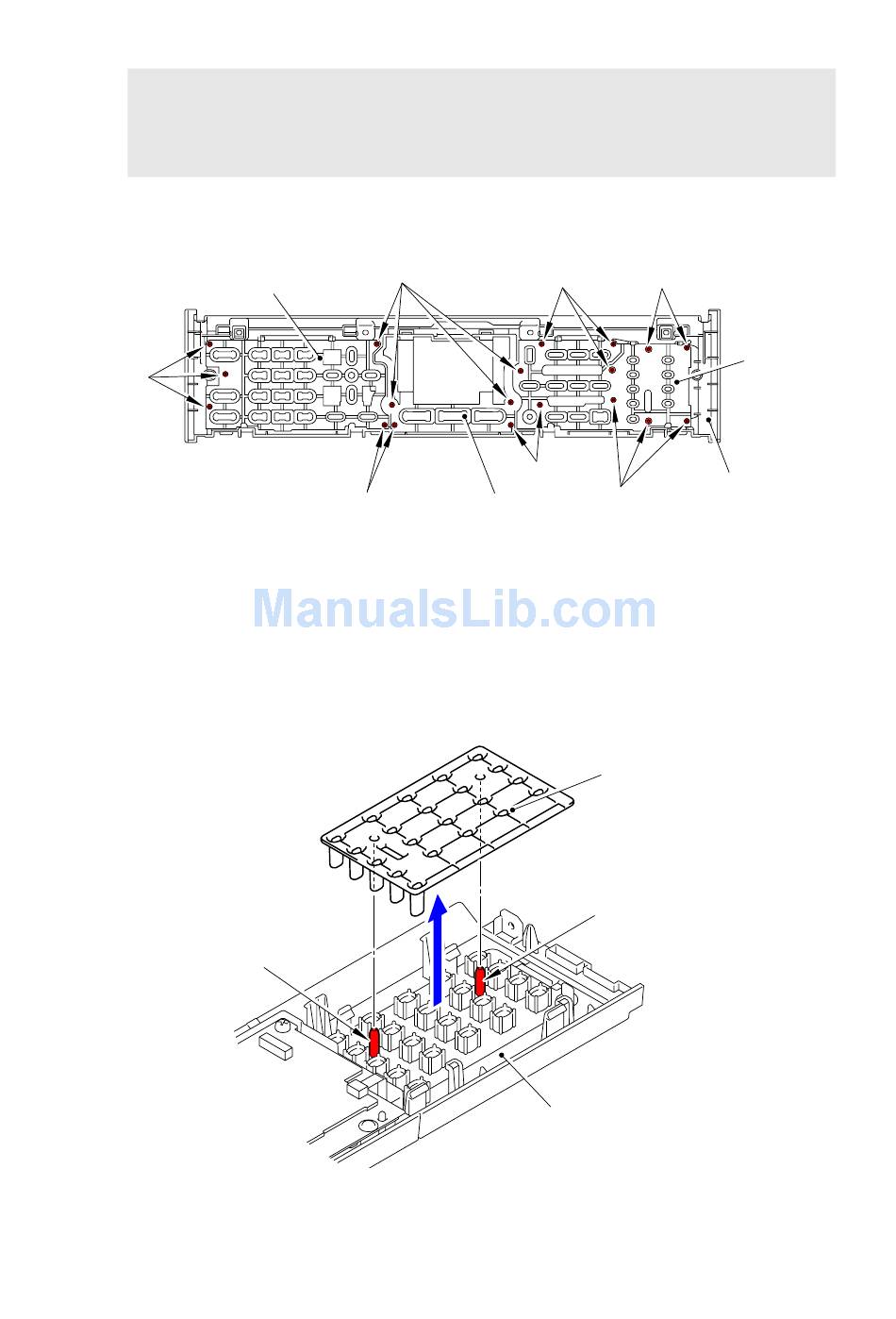

Assembling Note:
- Upon assembling, assemble the Printed rubber key L and Printed rubber key R first, and
then assemble the Printed rubber key C.
- Check if it is firmly inserted into the Positioning pin.
Printed rubber key R
Positioning
pin
■ Legal model
(1) Remove the Rubber key L from the Panel cover.
Pin
Positioning pin
Positioning pin
Printed rubber key C
Fig. 3-168
Fig. 3-169
3-122
Positioning pin Positioning pin
Positioning pin
Positioning pin
Rubber key L
Pin
Panel cover
Printed
rubber key L
Panel cover
