Status indication
Status
light
Power indication
PWR
light
Record light 1-16
IR Receiver IR

2.2 Rear Panel

2.2.1 Mini 1U Series

2.2.1.1 Simple Lite Series

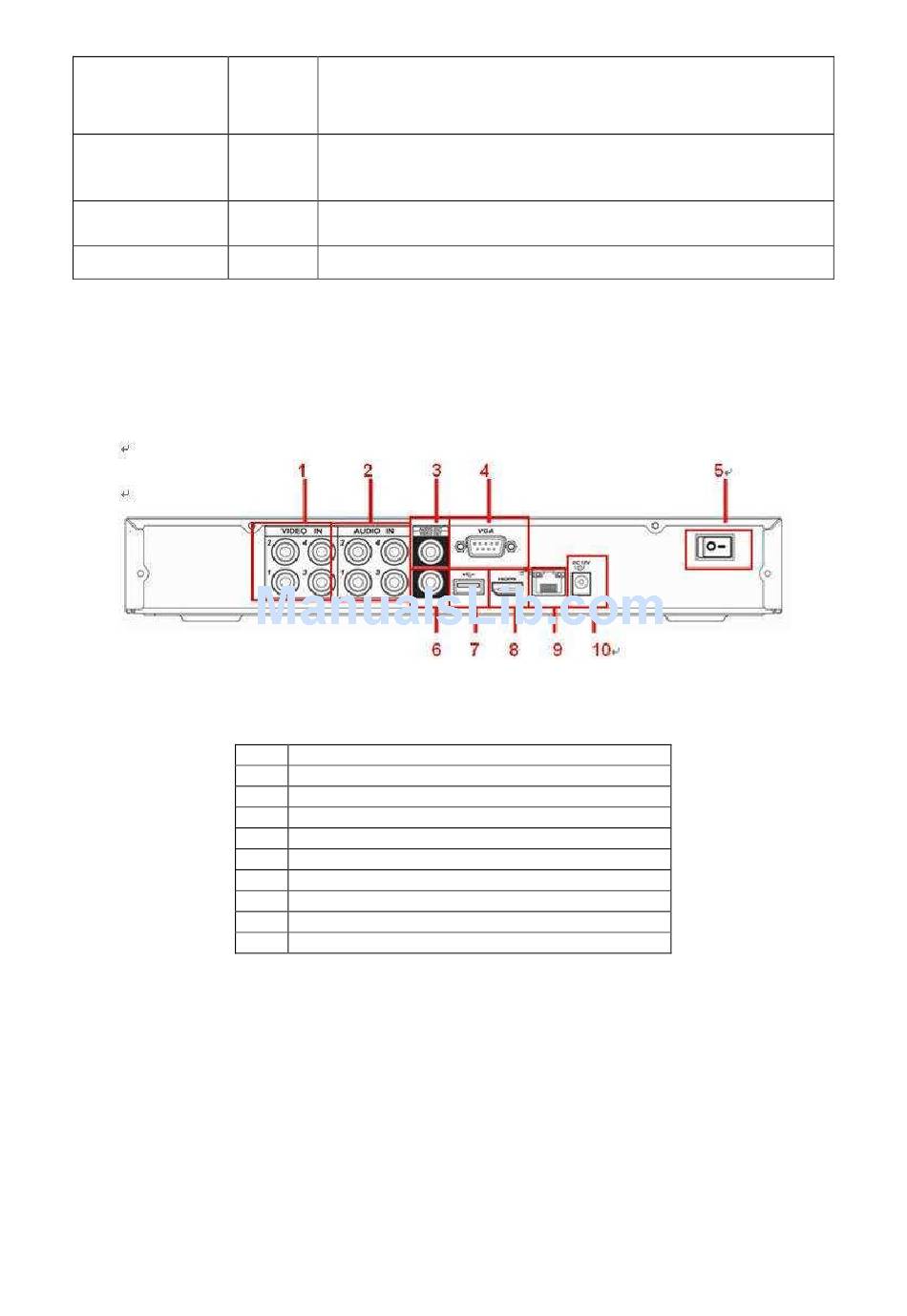

The rear panel is shown as below. See Figure 2-6.
Please refer to the following sheet for detailed information.
1
2
3
4
5
6
7
8
9
10
2.2.1.2 Simple Entry-level Series
The simple entry-level series rear panel is shown as below. See Figure 2-7.
If there is Fn indication light, current status indication light is null.
Power indication light
It becomes on when system is recording.
It is to receive the signal from the remote control.
Video input
Audio input
Audio output
Video VGA output
On/off button
Video output
Network port
HDMI port
USB port
Power socket
Figure 2-6
28
