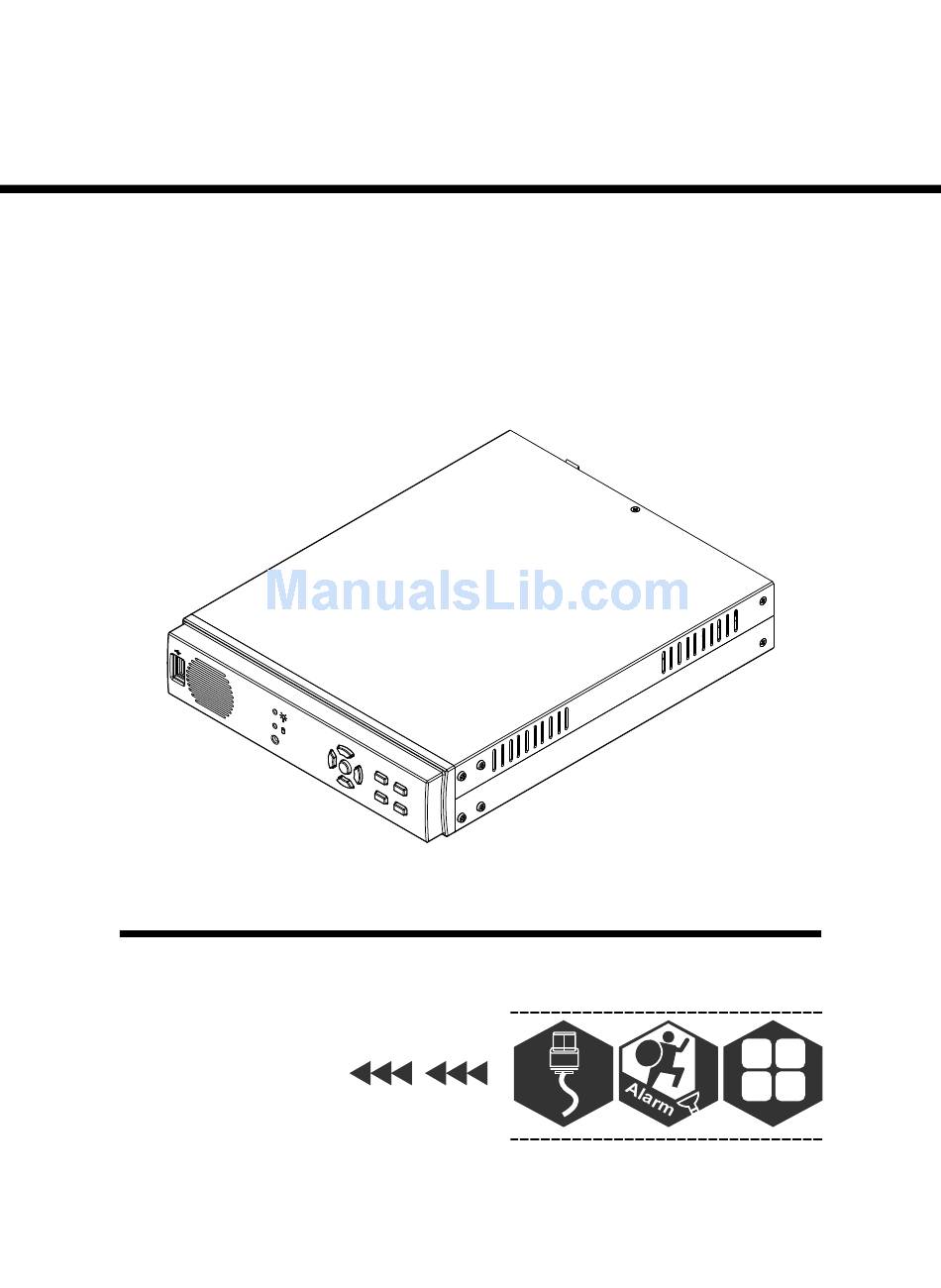

- Page 1 4CH STANDALONE DVR USER MANUAL 2008 JAN. Ver 1.1 4 CHANNEL...
-
Page 3: Hdd Support List
The hard drive below is not recommended for this unit Brand IDE- SATA- SATA- SATA- HITACHI 4CH STANDALONE DVR Capacity 80GB/ 160GB 80GB/ 160GB/ 320GB/ 400GB 80GB/ 160GB/ 320GB/ 400GB 160GB/ 250GB/ 320GB 160GB/ 250GB/ 320GB/ 500GB/ 750GB 160GB/ 250GB/ 320GB/ 500GB/ 750GB... -
Page 4: Table Of Contents
4CH STANDALONE DVR CONTENT 1、FEATURE 2、SPECIFICATIONS 3、INSTALLATION 4、FRONT PANEL 5、OPERATING MANUAL 6、VIEW CONTROL 7、PLAYBACK CONTROL 8、RECORD CONTROL 9、4 CHANNEL RECORDING HOURS 10、DVR Viewer User Guide 11、SATA TO PATA CONVERT BOARD (Option) -
Page 5: Feature
4CH STANDALONE DVR 1、FEATURE 1、Definitely Standalone. 2、Real Time Refresh Rate. 3、Display While Recording. 4、Frame Recording & Quad Recording. 5、Compatible of NTSC/PAL format. 6、Advanced MJPEG. 7、Manual / Motion / Programmed 8、 Systems records automatically while alarming. 9、Search by Time / Date. -
Page 6: Specifications
Brightness adjust Contrast adjust USB Output VGA Output System a monitor Power supply Dimension Weight Audio Function 4CH STANDALONE DVR Embedded RTOS NTSC/PAL D-SUB 15P VGA 4CH Composite 1CH Composite NTSC 120 fps (4x30 fps) 100 fps (4x25 fps) NTSC Max. -
Page 7: Installation
(3) Video IN : Cameras to Video Input. (4) Audio Input. (5) Audio Output. (6) Power Input : Please use the power supply attached Adaptor : DC-12V / 4A 4CH STANDALONE DVR VIDEO IN VIDEO OUT VIDEO IN VIDEO OUT... -
Page 8: Front Panel
(8) Menu / Show Percentage of the hard Drive recorded (9) Play / Pause (10) Record / Stop (11) Fast Reverse / Mute (12) Fast Forward / Sequence Switch 4CH STANDALONE DVR ( 2 ) ( 4 ) ( 5 ) ( 8 ) -
Page 9: Operating Manual
(2) If the password was not accepted, you will receive a message that inform you. NO PASSWORD CHANGED *Use the view control button on the front panel to input the number. 4CH STANDALONE DVR ) : SET ) : EXIT default setting) to enter. - Page 10 4CH STANDALONE DVR is:"1" is:"2" TIME SETUP Select this item to set up current time. TIME SET 2004/12/17 18:00:30 ) : SELECT ): SET Press to select items, use Press to exit CAMERA SETUP CAMERA SETUP CAMERA : CH1 LIVE ON/OFF...
-
Page 11: View Control
Camera #4 (Ch4),return to Quad Mode by press again. (2)View Control is only valid while the RECORD MODE is in the EACH MODE. QUAD Display, Enable / Disable theAuto switching function. 4CH STANDALONE DVR RECORD SCHEDULE 15 18 21 to select items, use... -
Page 12: Playback Control
*Press to stop. 8、RECORD CONTROL (1)Press to start recording. (2) During recording, the mark * appears in status of overwriting 4CH STANDALONE DVR SEARCH TIME HARD DRIVE : MASTER 01 TIME 2004/12/10 02:47:50 02 TIME 2004/12/10 02:47:50 03 TIME... -
Page 13: 9、4 Channel Recording Hours
Re cording Re sults in PAL Forma t Video Display Signal Format QU AD MOD E EA CH MOD E (Full Sc reen) 4CH STANDALONE DVR 30 fps 15 fps Video Quality Hi gh 36Hours 72 Hours Nor mal 48 Hours... -
Page 14: Dvr Viewer User Guide
Operating System (OS) Installation A. Hardware Installation Before executing the application, connect the DVR Storage Device to the IDE cable of your PC directly, or via USB adaptor B. Software Installation Run Setup.exe in the CD-ROM and follow the instruction to finish the installation. - Page 15 Shortcut to play the video files on your PC via the attached USB cable: a. Connect USB cable both ends to the USB port of the DVR and your PC. b. Supply 12VDC power to the DVR. c. Wait until the message of USB detected pops up on the VGA monitor.
- Page 16 If you want to see MYS file which was stored in your PC, press this button or press [F2] key. ii. DVR Storage Device Change Button When there are more than one DVR storage devices, this button will be activated. Press this button when you want to see video/audio stream stored in other DVR storage device. Fig.3 shows DVR storage device selection window.
- Page 17 DVR Storage Device Information Button If you want to know how big is the DVR storage device is, or how much stream data is stored in the device, press this button. Fig.4 shows the DVR storage device information window.
- Page 18 4CH STANDALONE DVR vi. Capture Stream Button If you want to capture stream, follow the stream capture procedure listed below: * Using Positioning Slider Bar find the stream position you want. * Make sure that the playback is in PAUSE mode, and the Capture Stream Button is enabled.
- Page 19 4CH STANDALONE DVR Screen MYS File Select Dialog Positioning Slider Bar PC Viewer Button File Open Button Fig.9. MYS File Player User Interface B. Functions i. PC Viewer Button When you want to back to PC Viewer function, press this button.
-
Page 20: Application Setting
You can specify Capture Directory. To change the path, press Change Button, select directory you want, and press OK again. ii. Message Box You can enable/disable the application close confirm message box. 4CH STANDALONE DVR Fig.11. Audio Control Buttons Enable/Disable Application Closing... -
Page 21: Sata To Pata Convert Board
Two PATA cable, each cable with one SATA HDD then these two Jumpers always setting in Master ( Jumper off ) 4CH STANDALONE DVR Foreword This is a SATA convert PATA interface PCB board, before using the product, please read this manual carefully for further recognizing for the product! I. - Page 22 4CH STANDALONE DVR Using JBOD ( Big ) special function One PATA cable with two SATA HDD, Jumper one set to Master ( Jumper off ); another set to Slave(Jumper on) Each one PATA cable with one SATA HDD, Jumper all set to Master ( Jumper off )
