1 Hardware Installation and Connection

Note: All the installation and operations here should conform to your local electric safety
rules.
Hard drive is already pre-installed on your DVR system. This section is only for
reference in case you are adding additional hard drive.

1.1 Check Unpacked DVR

When you receive the DVR from the forwarding agent, please check whether there is any visible
damage. The protective materials used for the package of the DVR can protect most accidental
clashes during transportation. Then you can open the box to check the accessories.
Please check the items in accordance with the list. (Remote control is optional). Finally you can
remove the protective film of the DVR.
Note
Remote control is not a standard accessory and it is not included in the accessory bag.

1.2 About Front Panel and Rear Panel

For detailed information of the function keys in the front panel and the ports in the rear panel,
please refer to the User's Manual included in the resource CD.
The model label in the front panel is very important; please check according to your purchase
order.
The label in the rear panel is very important too. Usually we need you to represent the serial
number when we provide the service after sales.

1.3 After Remove the Chassis

Please check the data cable, power cable, COM cable and main boar cable connection is secure
or not.

1.4 HDD Installation

You can refer to the User's Manual for recommended HDD brand. Please follow the instructions
below to install hard disk. This series DVR has two SATA HDDs. Please use HDD of 7200rpm or
higher.
All the figurers listed below are for reference only. Slight difference may be found on the front or
rear panel.

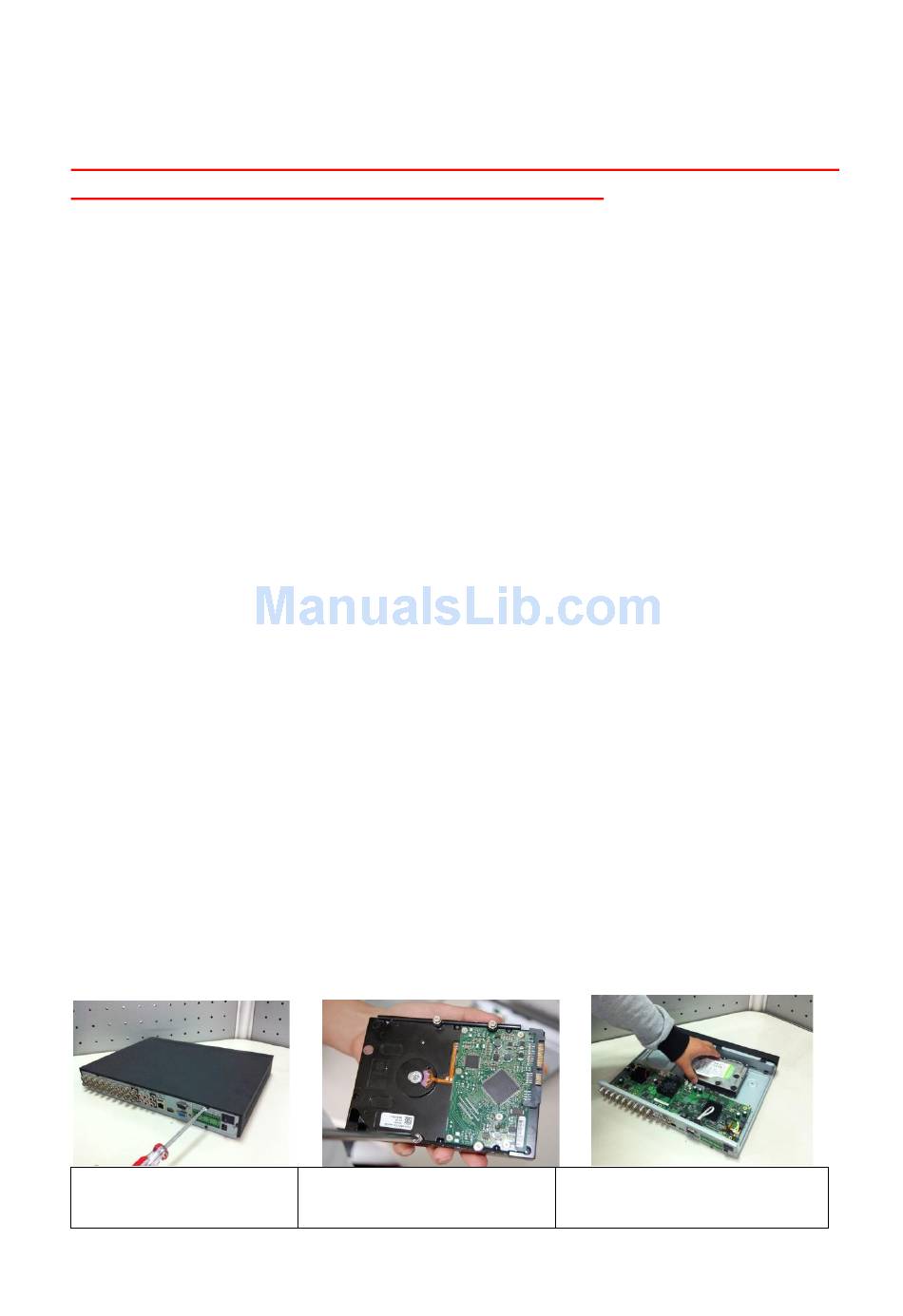

1. Loosen the screws of the
upper cover and side panel.
2. Fix four screws in the HDD
(Turn just three rounds).
3. Place the HDD in accordance with
the four holes in the bottom.
