Optiview VR4HT User Manual page 33

HDD
abnormal
HDD
indication
light
Record light 1-16
IR Receiver IR

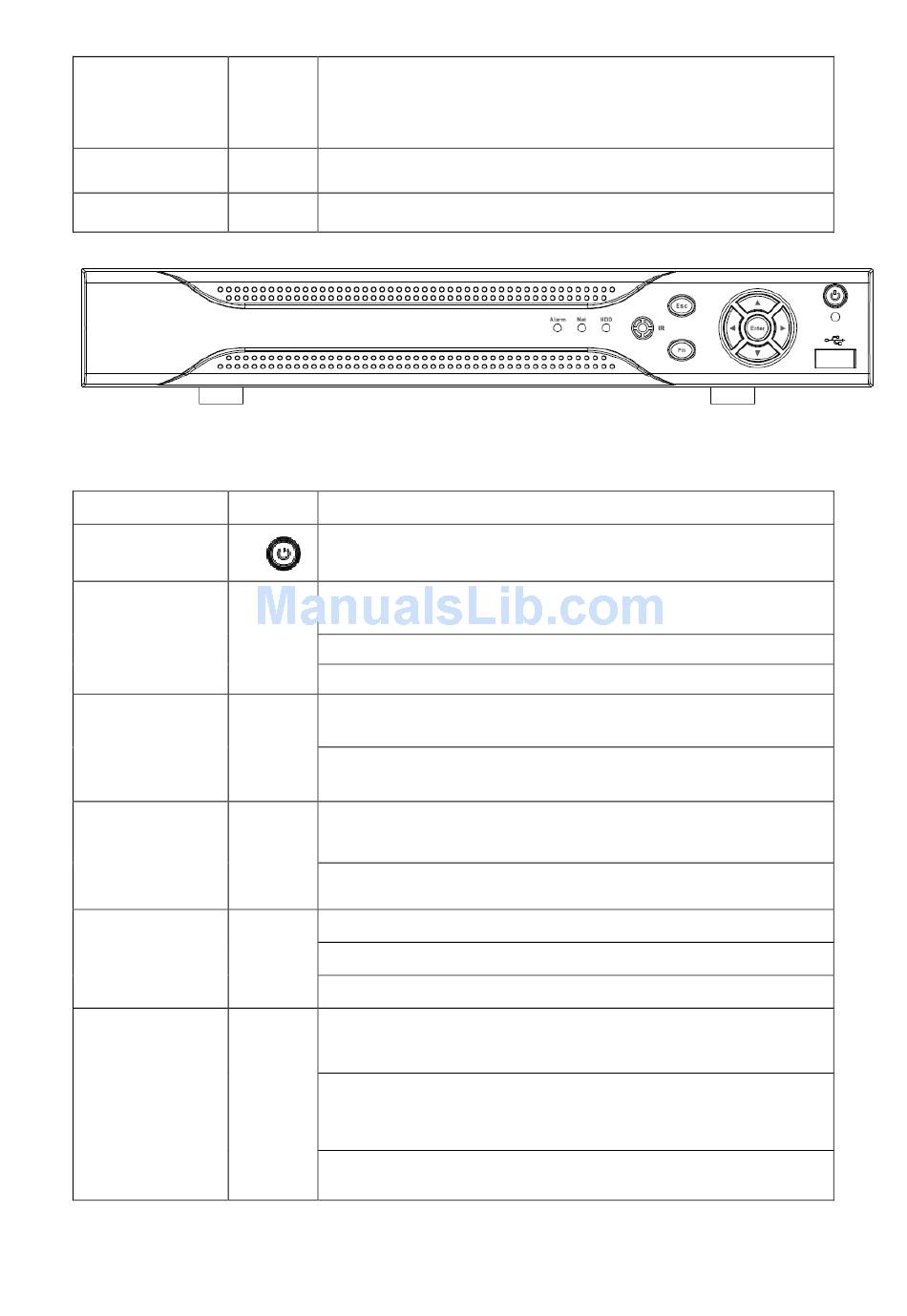

The front panel of another mini 1U series product is shown as in Figure 2-3.
Please refer to the following sheet for detailed information.
Name
Power button
Up
Down
Left
⊳
Right
ESC ESC
Enter ENTER
Assistant Fn
HDD error occurs or HDD capacity is below specified
threshold value, the light becomes red to alert you.
System is recording or not. It becomes on when system is
recording.
It is to receive the signal from the remote control.
Icon Function
Power button, press this button for three seconds to boot up
or shut down DVR.
Activate current control, modify setup, and then move up
and down.
、
Increase/decrease numeral.
Assistant function such as PTZ menu.
Shift current activated control,
When playback, click these buttons to control playback bar.
Go to previous menu, or cancel current operation.
When playback, click it to restore real-time monitor mode.
Confirm current operation
Go to default button
Go to menu
One-window monitor mode, click this button to display
assistant function: PTZ control and image color.
Backspace function: in numeral control or text control, press
it for 1.5seconds to delete the previous character before the
cursor.
In motion detection setup, working with Fn and direction
keys to realize setup.
