Please input the PPPoE user name and password you get from the IPS (internet service provider)
and enable PPPoE function. Please save current setup and then reboot the device to get the
setup activated.
Device connects to the internet via PPPoE after reboot. You can get the IP address in the WAN
from the IP address column.
Note:
After PPPoE successful dial, you need to go to the device local end to get device current IP
address and then use the client-end to access this IP address.

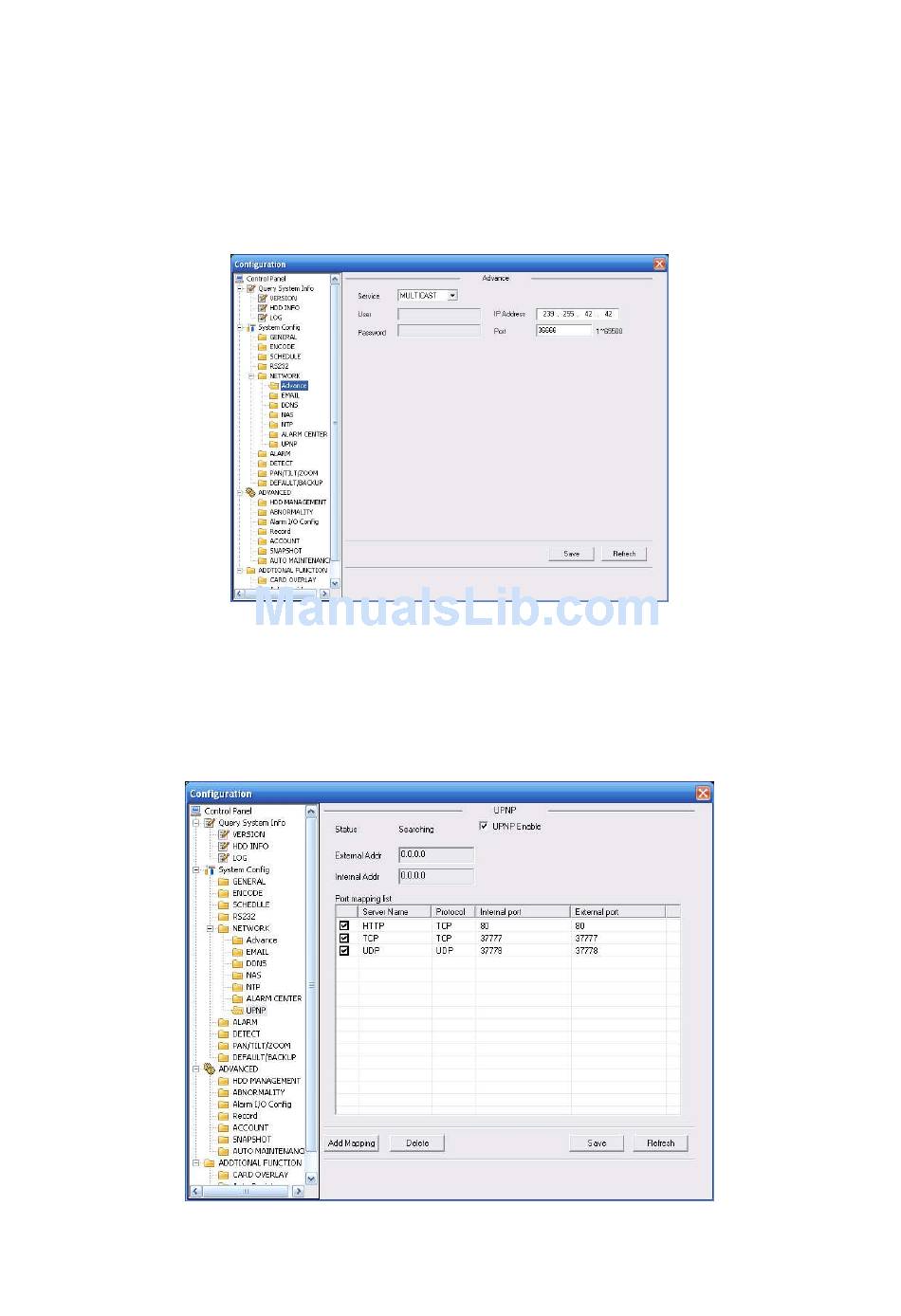

Figure 7-41
UNPN
Go to the UPnP interface, you can see an image is shown as in Figure 7-42.
It allows you to establish the mapping relationship between the LAN and the public network.
Here you can also add, modify or remove UPnP item.
Figure 7-42 UNPN
