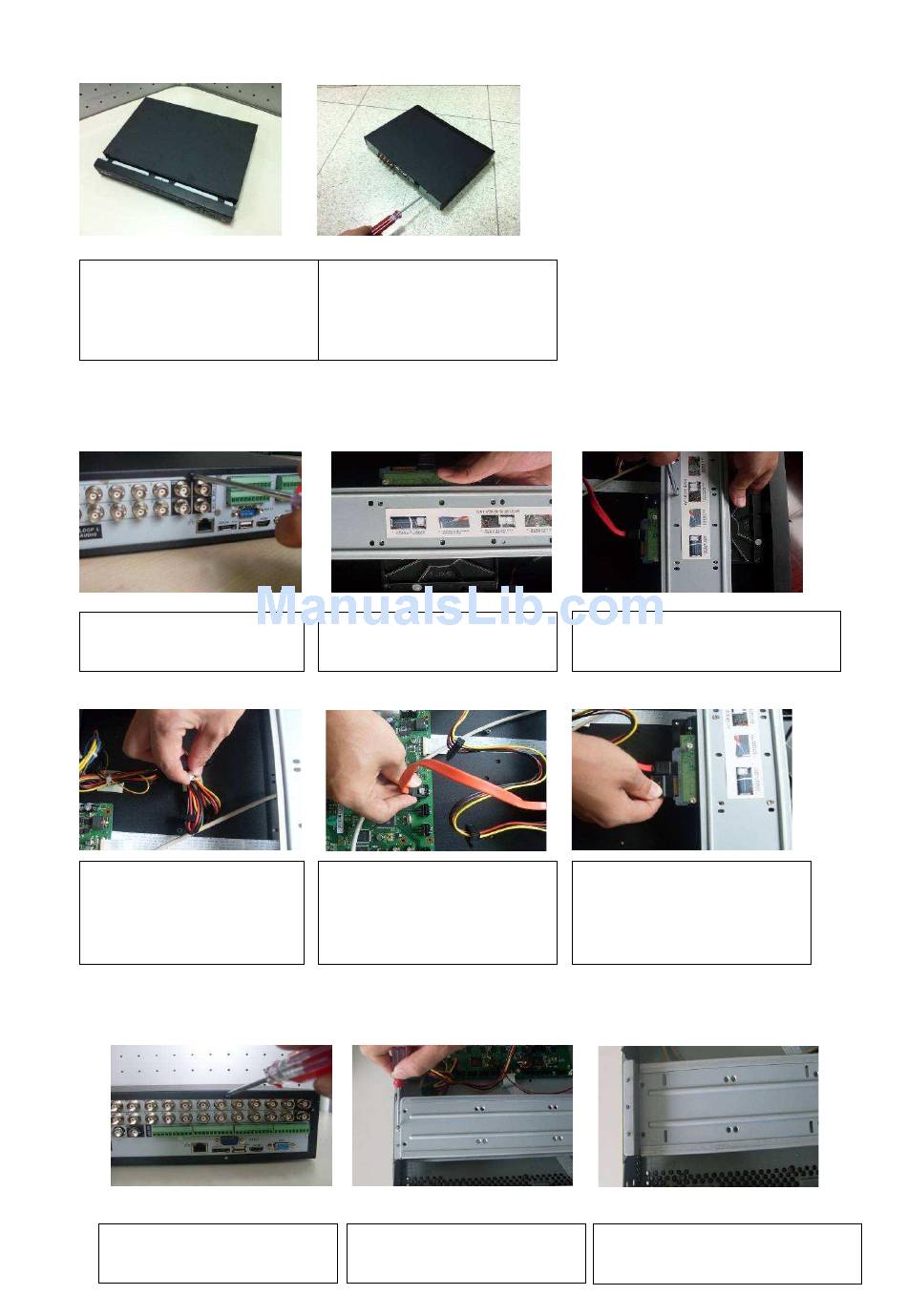

7. Put the cover in accordance
with the clip and then place the
upper cover back.
3.3.2 1.5U
This series DVR has four SATA HDDs.
1. Loosen the screws of the
upper cover.
4. Unfasten the HDD power
cable.
3.3.3 2U
This series DVR max supports 4 SATA HDDs.
1. Loosen the screws of the
upper cover.
8. Secure the screws in the
rear panel and the side panel.
2. Line up the HDD to the four
holes of the HDD bracket.
5.
Use the special data cable to
connect the HDD and the SATA
port
2. Remove the HDD upper
bracket
3. Use four screws to fix HDD.
6. Insert the HDD power cable.
Close the chassis and fix the
screws to secure firmly.
3. Now you can see the bottom
bracket
45
