5.5 Advanced

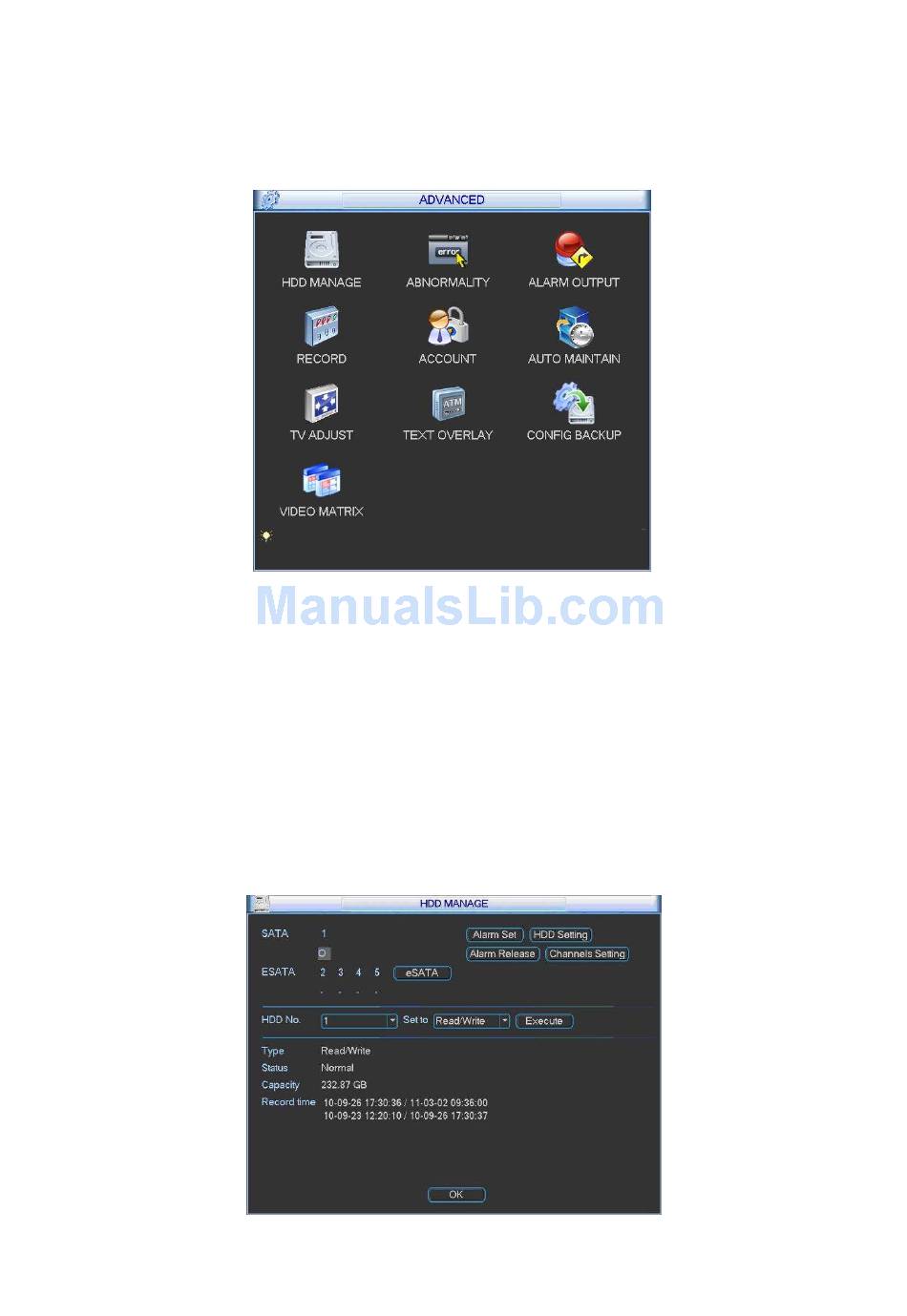

Double click advanced icon in the main window, the interface is shown as below. See Figure
5-29.There are total eight function keys: HDD management, alarm output, abnormity, manual
record, account, auto maintenance, TV adjust and video matrix.

5.5.1 HDD Management

Here is for you to view and implement hard disk management. See Figure 5-30.
You can see current HDD type, status, capacity and record time. When HDD is working properly,
system is shown as O. When HDD error occurred, system is shown as X.
Alarm set: Click alarm set button, the interface is shown as below. See Figure 5-31. (This
interface is just like the abnormity setup). Please refer to chapter 5.5.2 for detailed
information.
HDD operation: You can select HDD mode from the dropdown list such as read-only or you
can erase all data in the HDD. Please note system needs to reboot to get all the modification
activated.
Figure 5-29
Figure 5-30
