4.9.2 Activate Preset

In Figure 4-40, please input preset number in the No. blank, and click preset button.

4.9.3 Patrol setup (Tour Setup)

In Figure 4-38, click patrol button. The interface is shown as in Figure 4-42.Input preset number
and add this preset to a patrol (tour). For each patrol (tour), you can input max 80 presets.

4.9.4 Activate Patrol (tour)

In Figure 4-39, input patrol (tour) number in the No. blank and click patrol button
X 3 4 1 H 3 4 1 H 341H

4.9.5 Pattern Setup

In Figure 4-39, click pattern button and then click ―begin‖ button. The interface is shown as in
Figure 4-43. Then you can go to Figure 4-36 X to modify zoom, focus, and iris.
Go back to Figure 4-43 and click ―end‖ button. You can memorize all these operations as pattern
1.

4.9.6 Activate Pattern Function

In Figure 4-39, input mode value in the No. blank, and click pattern button.
X 3 4 6 H 3 4 6 H 346H

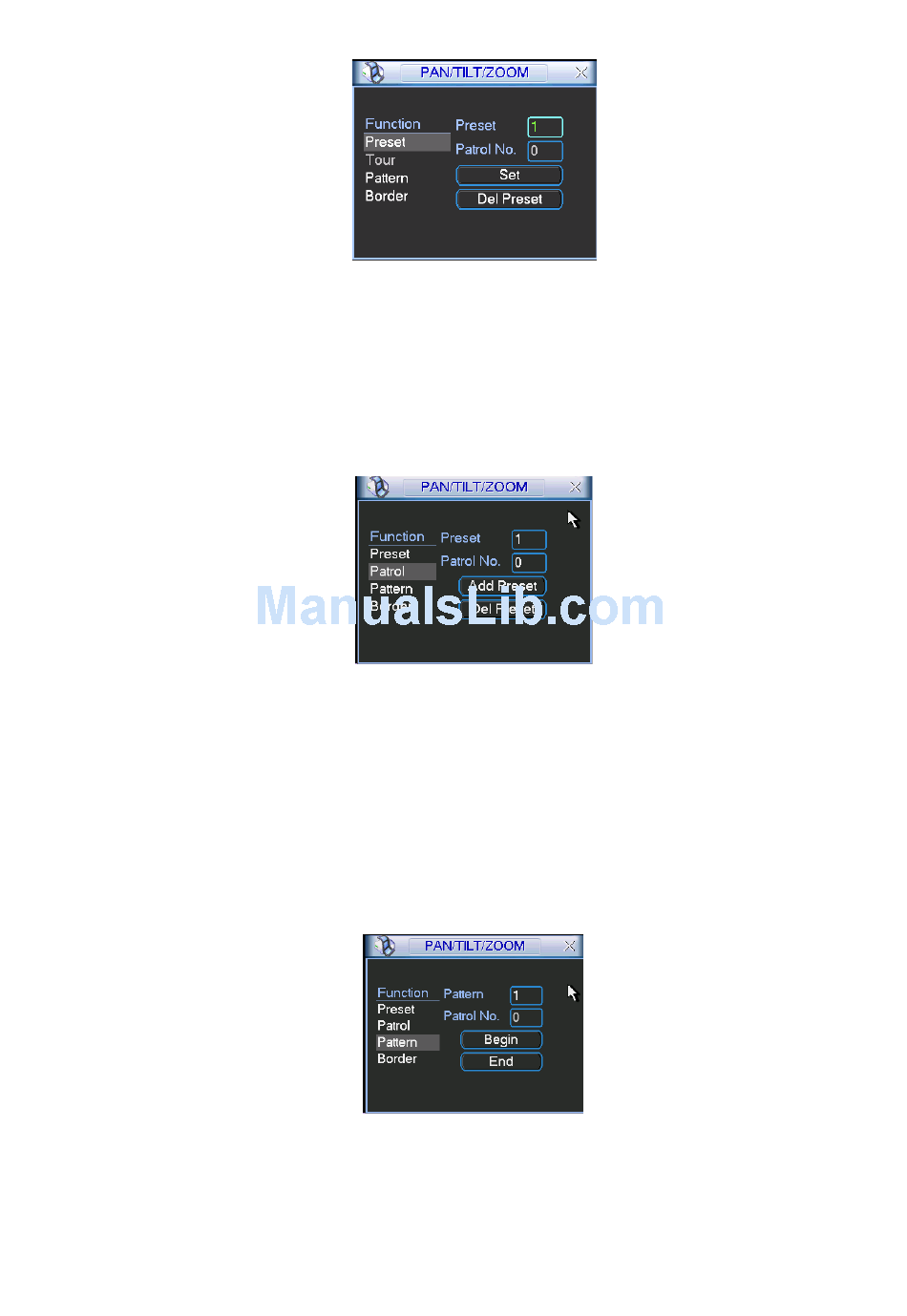

Figure 4-41
Figure 4-42
Figure 4-43
77
