2.3

Connecting Devices to the Unit

This section lists some important notices that should be read before making
any connection to the DVR.
Connecting Required Devices
Before powering up the unit, cameras and a main monitor should be
connected to the unit for basic operation. If needed, connect a call monitor for
displaying full screen video of all installed cameras in sequence.
Connecting Short-term Device
If any short-term devices shall be installed to the DVR as parts of the unit
system, such as USB ThumbDrive® or any USB devices, etc, make sure
those devices are connected only after the unit is powered up. The reason is
because the DVR can recognize the external devices only after the power-up
process is done completely.
2.4

Rear Panel Connections

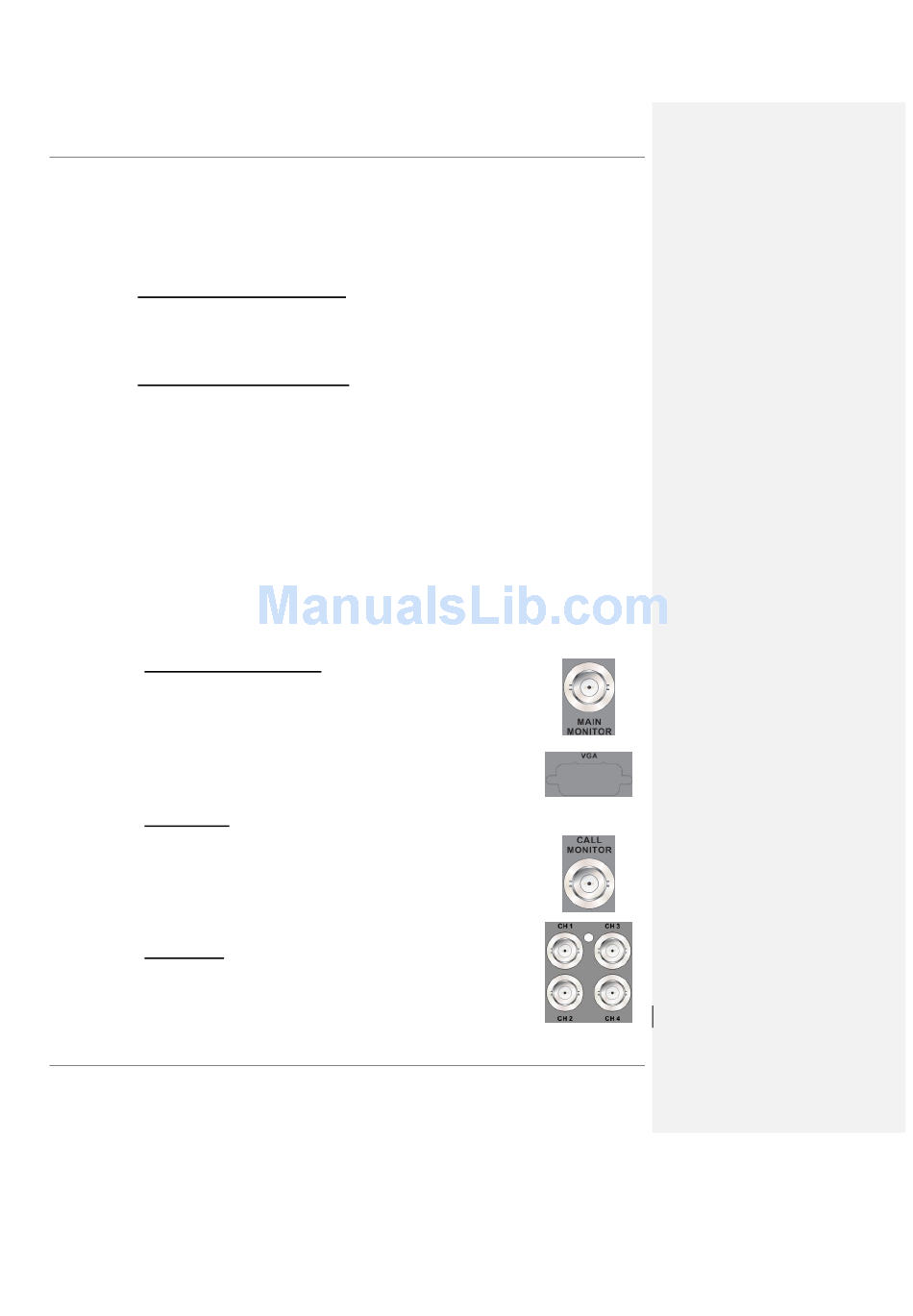

There are various connectors on the rear panel for the DVR installations. The
following figure shows the connectors by name; and followed by the detailed
description of each connector.
Main Monitor (BNC/ VGA)
BNC and VGA output connectors are offered for
connecting to a main monitor. The main monitor displays
live image and playback recorded video in either
full-screen or split-window format. VGA output connector
is optional.
Call Monitor
The call monitor is used to display full screen video of all
installed cameras in sequence. The BNC call monitor
connector allows users to connect the DVR with an
optional call monitor.
Video Input
A group of BNC connectors is offered for video input
streams from
connectors is equal to the number of channels.
installed cameras. The
DVR User's Manual
number of
9
