Ptz - Optiview VR4HT User Manual

You can click this button to enable audio talk. Click 【▼】 to select bidirectional talk mode.
There are two options: DEFAULT/G711a.
Please note, the audio input port from the device to the client-end is using the first channel audio
input port. During the bidirectional talk process, system will not encode the audio data from the 1-
channel.
Local Play
The Web can playback the saved (Extension name is dav) files in the PC-end.

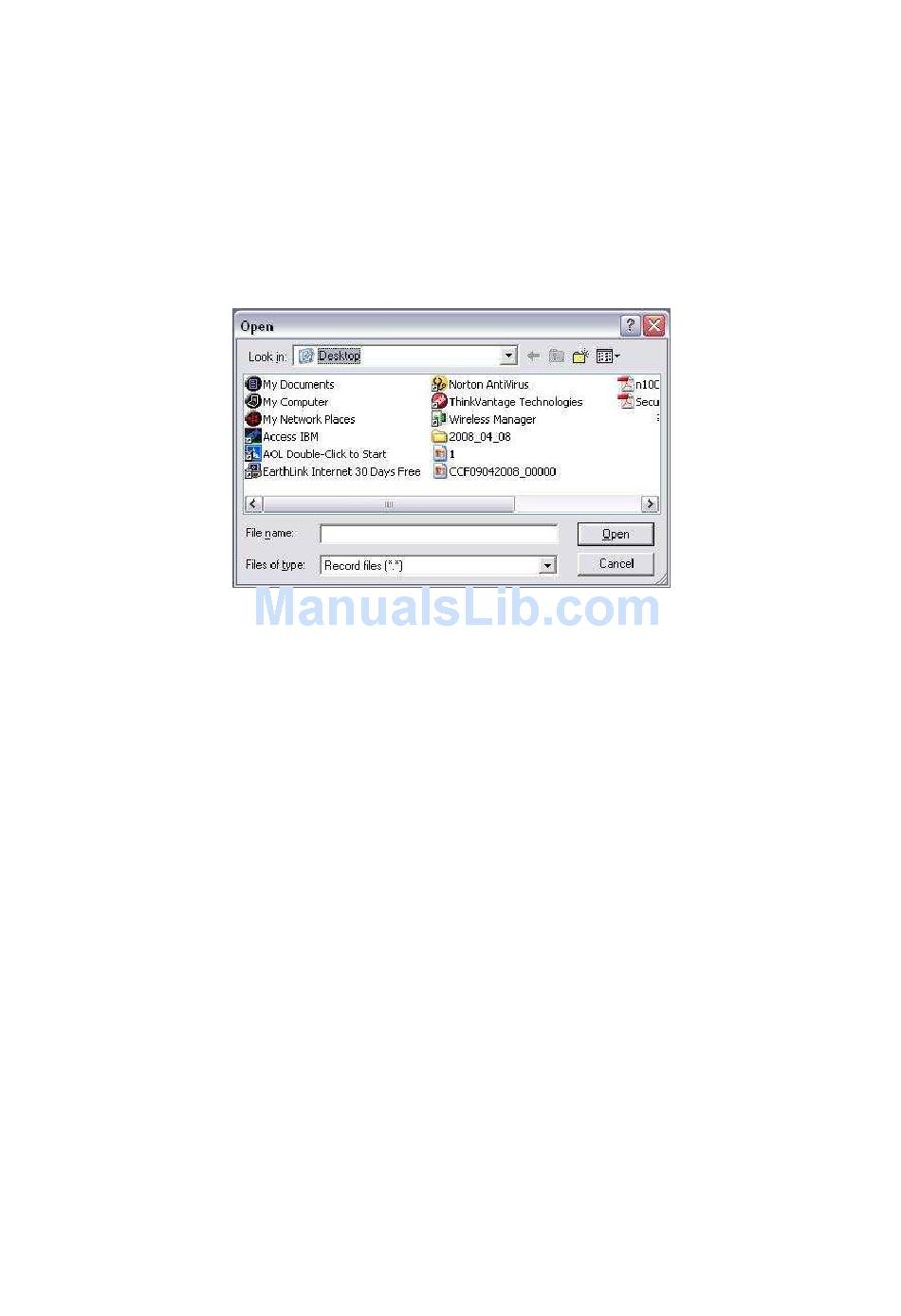

Click local play button, system pops up the following interface for you to select local play file. See
Figure 7-10.
X 4 3 6 H 4 3 6 H 4 3 6H X
Figure 7-10

7.3.2 PTZ

Before PTZ operation, please make sure you have properly set PTZ protocol. (Please refer to
chapter 7.3.2 Setting-> Pan/Tilt/Zoom).
Click PTZ button, the interface is shown as in Figure 7-11 .
X437H437H4 37H X
121
