Annex G - Connectors

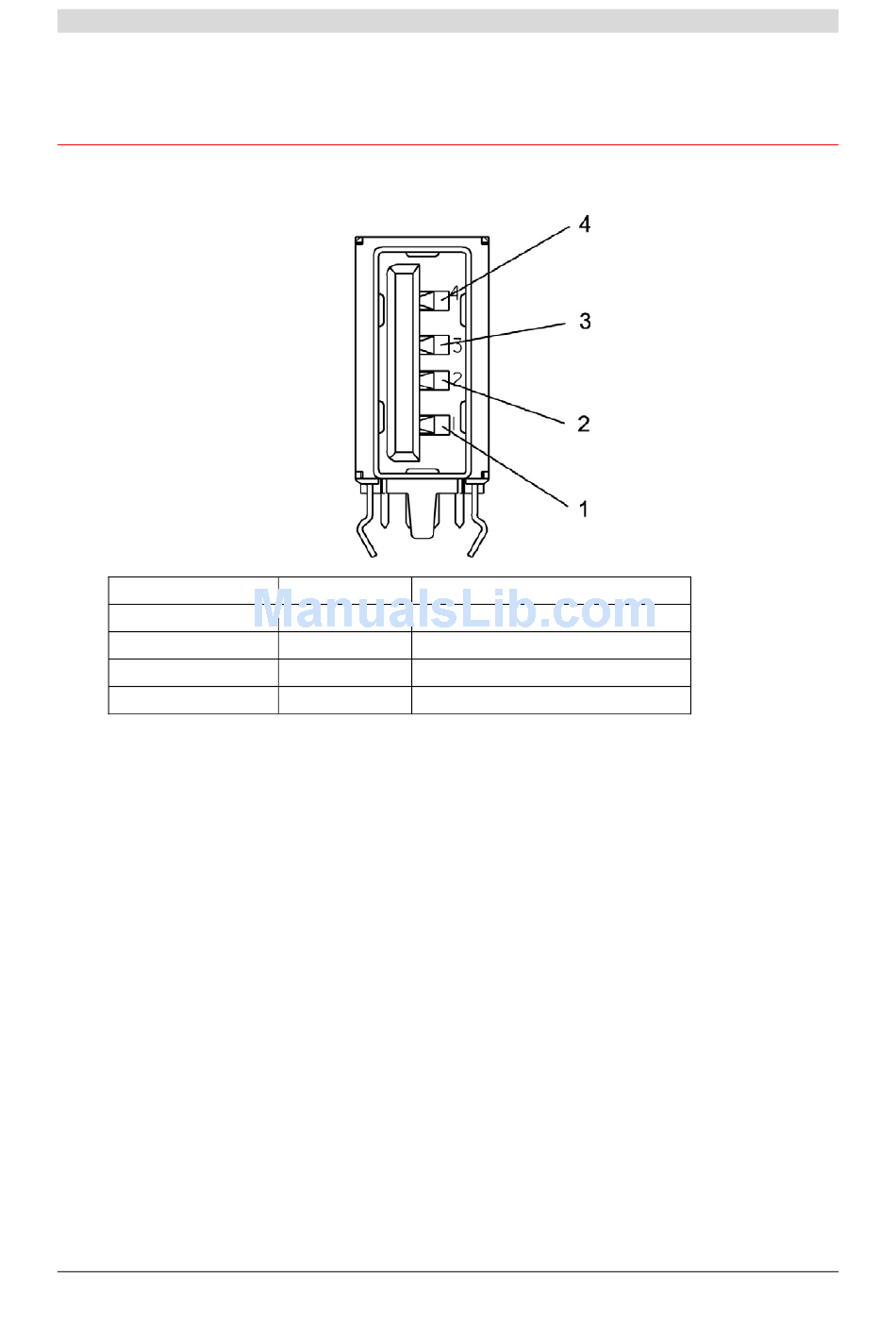

G.4 Pinouts of the "USB" connector
The "USB" interface is connected to the equipment using type A female USB fixed connector.
Contact No
1
2
3
4
F@st™ 2804v2 Reference Manual - 253329475-A
Page G-4
Signal
Vcc
- Data
+ Data
Ground
Sagemcom document. Reproduction and disclosure prohibited
Meaning
PC power (+)
Subscriber line signal
Subscriber line signal
Earth
