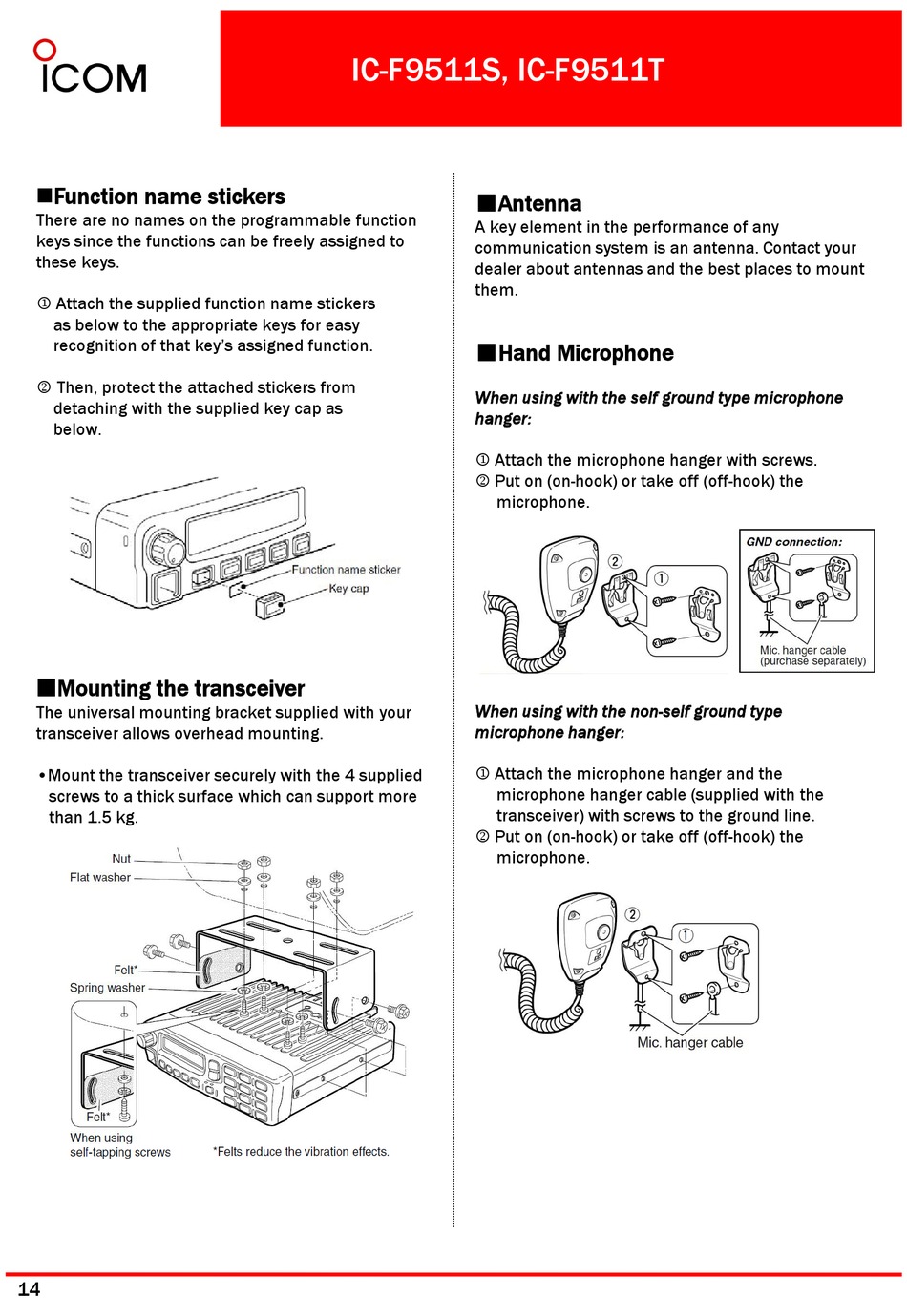

Mounting The Transceiver - Icom IC-F9511T User Manual

Function name stickers
There are no names on the programmable function
keys since the functions can be freely assigned to
these keys.
1 Attach the supplied function name stickers
as below to the appropriate keys for easy
recognition of that key's assigned function.
2 Then, protect the attached stickers from
detaching with the supplied key cap as
below.

Mounting the transceiver

The universal mounting bracket supplied with your
transceiver allows overhead mounting.
•Mount the transceiver securely with the 4 supplied
screws to a thick surface which can support more
than 1 5 kg than 1.5 kg.
14
IC-F9511S, IC-F9511T
■Antenna
A key element in the performance of any
communication system is an antenna. Contact your
dealer about antennas and the best places to mount
them.
■Hand Microphone
When using with the self ground type microphone
hanger:
1 Attach the microphone hanger with screws.
2 Put on (on-hook) or take off (off-hook) the
microphone. i
When using with the non-self ground type
microphone hanger:
1 Attach the microphone hanger and the
microphone hanger cable (supplied with the
transceiver) with screws to the ground line. transceiver) with screws to the ground line.
2 Put on (on-hook) or take off (off-hook) the
microphone.
