▒ NOTE : For IC-F9521/F9523/S/T, please refer
▒ to this instruction and connect the accessories
▒ to this instruction and connect the accessories
▒ the same way.
3

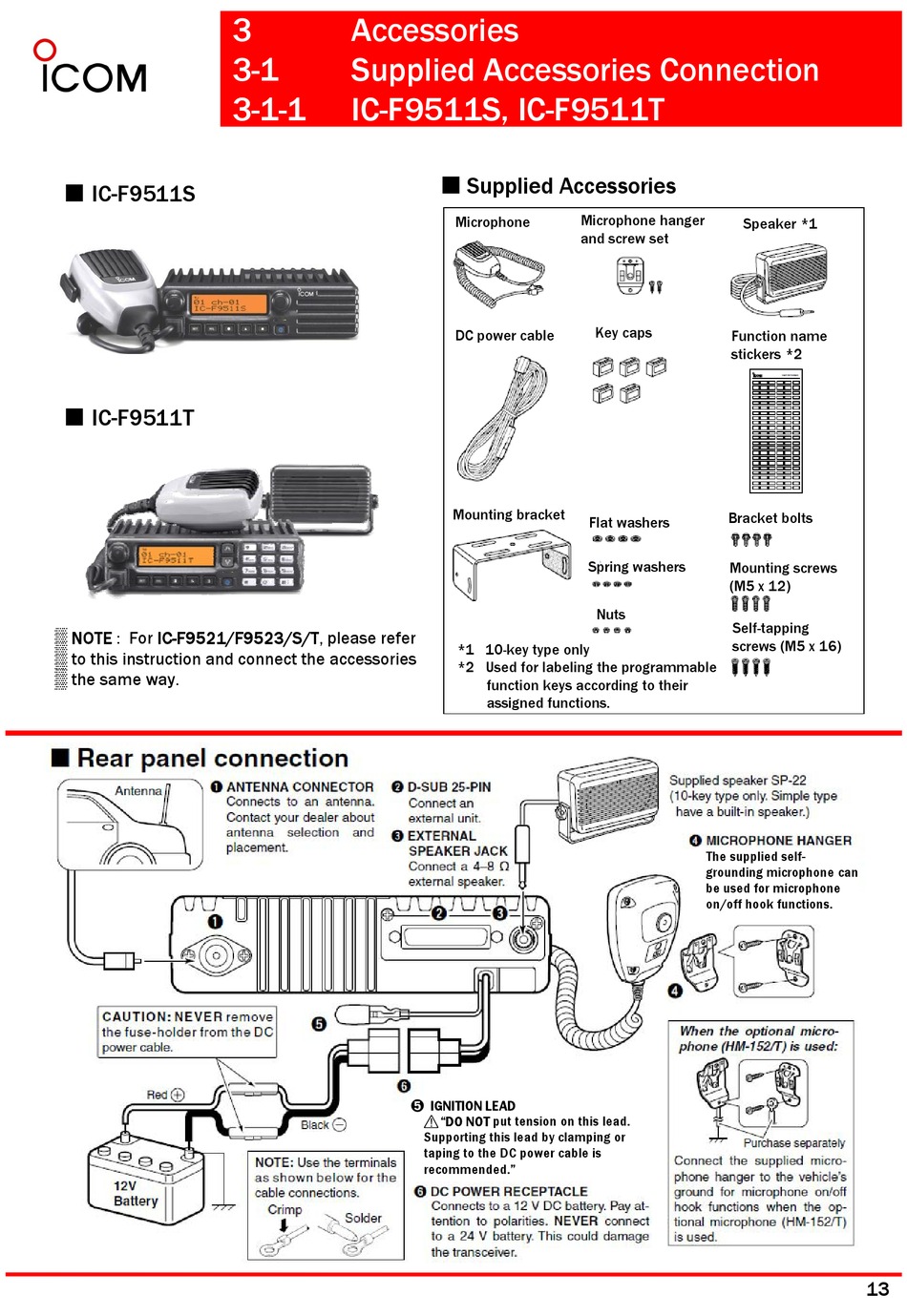

Accessories
3-1
Supplied Accessories Connection
3-1-1
IC-F9511S, IC-F9511T
Supplied Accessories
Microphone hanger
Microphone
and screw set
DC power cable
DC power cable
Mounting bracket
*1 10-key type only
*2 Used for labeling the programmable
function keys according to their
assigned functions.
➎ IGNITION LEAD
"DO NOT put tension on this lead.
Supporting this lead by clamping or
pp
g
y
taping to the DC power cable is
recommended."
Speaker *1
Key caps
Key caps
Function name
Function name
Function name
Function name
stickers *2
stickers *2
Bracket bolts
Flat washers
Spring washers
Mounting screws
Mounting screws
(M5x12)
(M5 x 12)
Nuts
Self-tapping
screws (M5 x 16)
The supplied self-
grounding microphone can
be used for microphone
on/off hook functions.
p g
