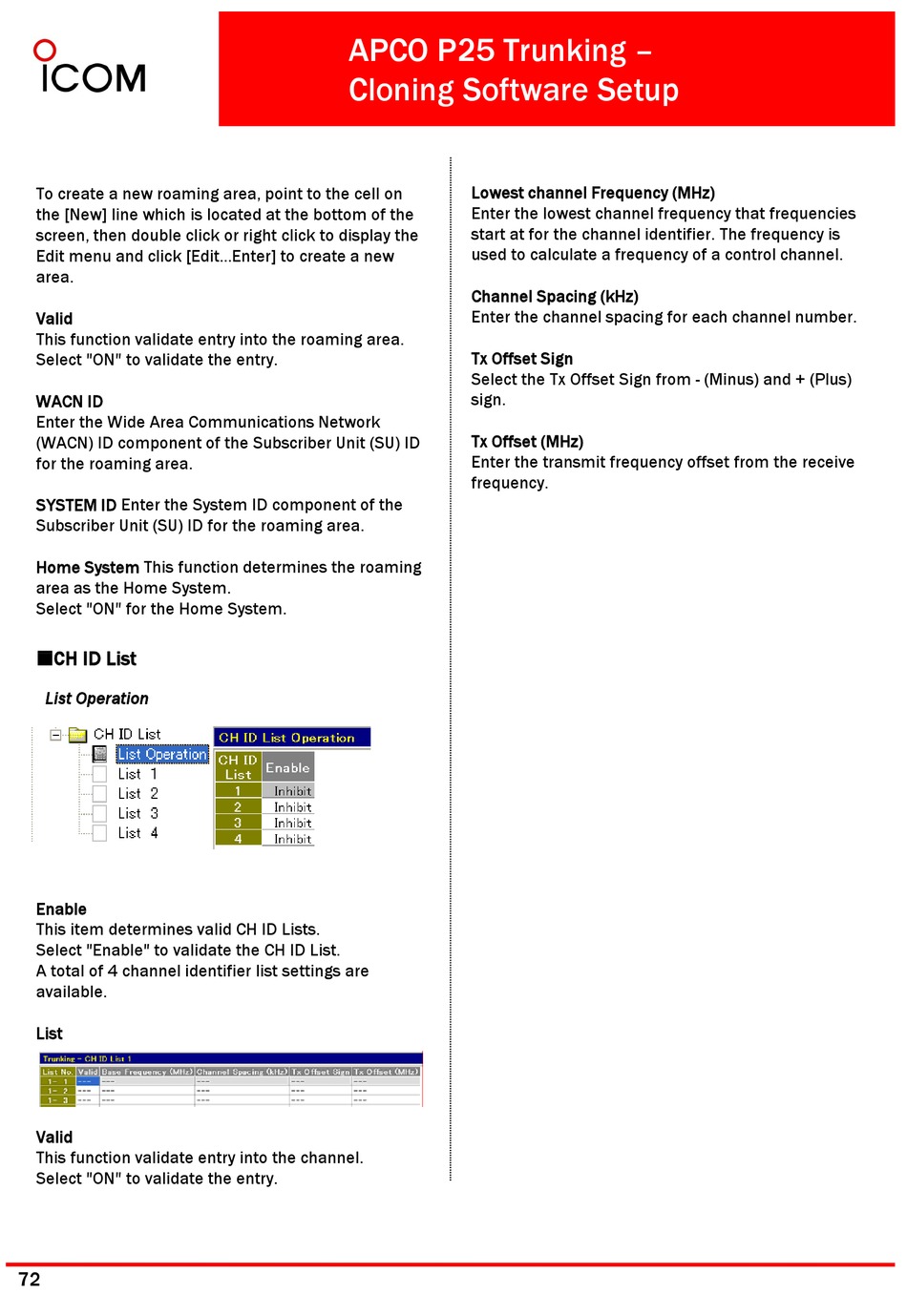

Icom IC-F9511T User Manual page 72

To create a new roaming area, point to the cell on
the [New] line which is located at the bottom of the
screen, then double click or right click to display the
Edit menu and click [Edit...Enter] to create a new
area.
Valid
This function validate entry into the roaming area.
Select "ON" to validate the entry.
WACN ID
Enter the Wide Area Communications Network
(WACN) ID component of the Subscriber Unit (SU) ID
for the roaming area.
SYSTEM ID Enter the System ID component of the
Subscriber Unit (SU) ID for the roaming area.
Home System This function determines the roaming
area as the Home System.
Select "ON" for the Home System.
CH ID List CH ID Li t
List Operation
Enable
This item determines valid CH ID Lists.
Select "Enable" to validate the CH ID List.
A total of 4 channel identifier list settings are A total of 4 channel identifier list settings are
available.
List
Valid Valid
This function validate entry into the channel.
Select "ON" to validate the entry.
72
APCO P25 Trunking –
Cloning Software Setup
Lowest channel Frequency (MHz)
Enter the lowest channel frequency that frequencies
start at for the channel identifier. The frequency is
used to calculate a frequency of a control channel.
Channel Spacing (kHz)
Enter the channel spacing for each channel number.
Tx Offset Sign
Select the Tx Offset Sign from - (Minus) and + (Plus)
sign.
Tx Offset (MHz)
Enter the transmit frequency offset from the receive
frequency.
