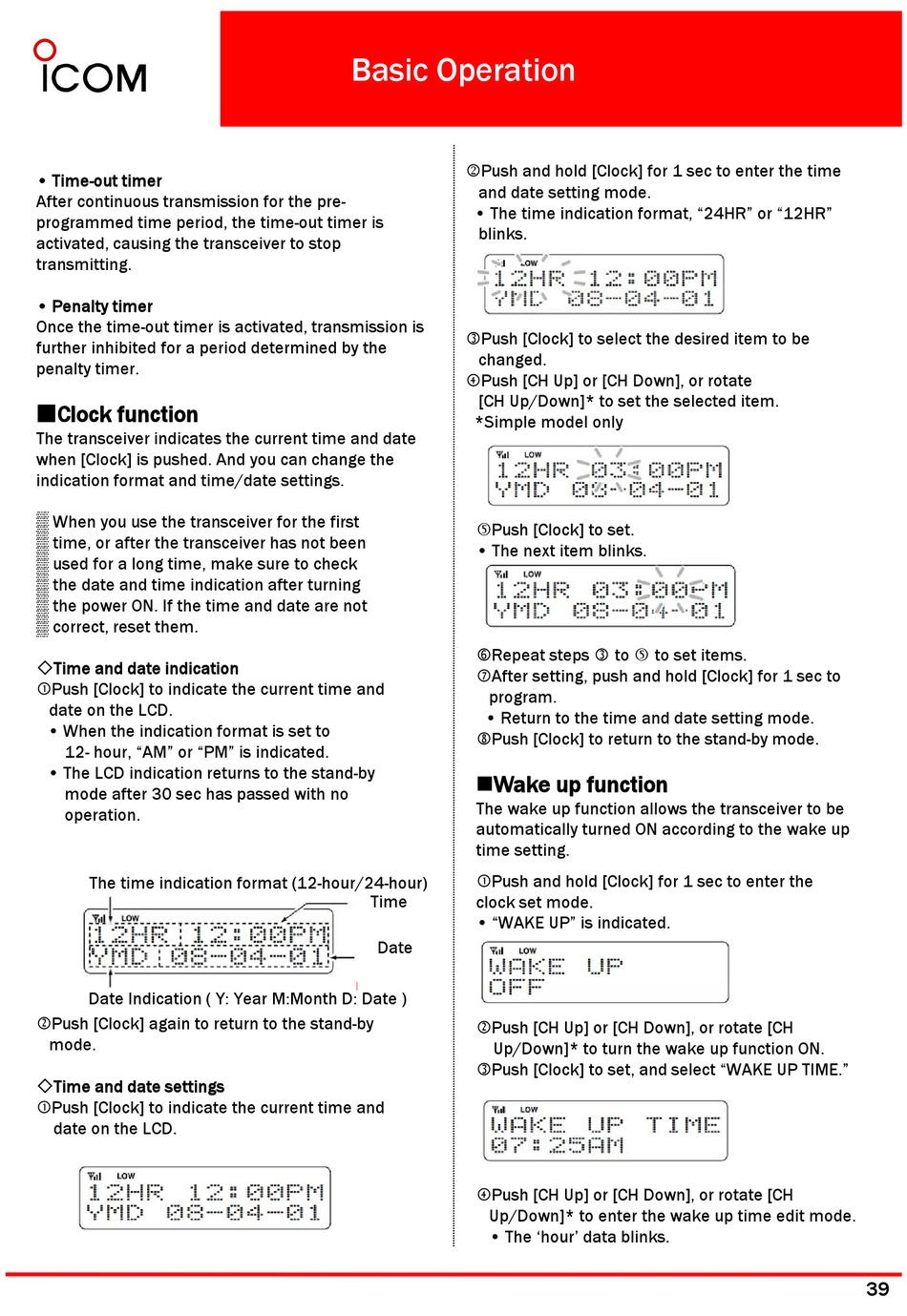

Clock Function - Icom IC-F9511T User Manual

• Time-out timer
After continuous transmission for the pre-
programmed time period, the time-out timer is
activated, causing the transceiver to stop
transmitting.
• Penalty timer
Once the time-out timer is activated, transmission is
further inhibited for a period determined by the
penalty timer.

Clock function

The transceiver indicates the current time and date
when [Clock] is pushed. And you can change the
indication format and time/date settings.
▒ When you use the transceiver for the first
▒ time, or after the transceiver has not been
▒ used for a long time, make sure to check
▒ the date and time indication after turning
▒ the power ON. If the time and date are not
▒ correct, reset them.
Time and date indication
Push [Clock] to indicate the current time and
date on the LCD.
• When the indication format is set to
12- hour, "AM" or "PM" is indicated.
• The LCD indication returns to the stand-by
mode after 30 sec has passed with no
operation. operation.
The time indication format (12-hour/24-hour)
Date Indication ( Y: Year M:Month D: Date )
Push [Clock] again to return to the stand-by
mode.
Time and date settings
Push [Clock] to indicate the current time and
date on the LCD.
Basic Operation
2Push and hold [Clock] for 1 sec to enter the time 2Push and hold [Clock] for 1 sec to enter the time
• The time indication format, "24HR" or "12HR"
,
*Simple model only
Time
Date
and date setting mode.
blinks.
Push [Clock] to select the desired item to be P h [Cl k] t l t th d i d it
changed.
Push [CH Up] or [CH Down], or rotate
[CH Up/Down]* to set the selected item.
Push [Clock] to set.
• The next item blinks.
Repeat steps Repeat steps to to
After setting, push and hold [Clock] for 1 sec to
program.
• Return to the time and date setting mode.
Push [Clock] to return to the stand-by mode.
Wake up function
The wake up function allows the transceiver to be
automatically turned ON according to the wake up
time setting.
Push and hold [Clock] for 1 sec to enter the
clock set mode.
• "WAKE UP" is indicated.
Push [CH Up] or [CH Down], or rotate [CH
Up/Down]* to turn the wake up function ON.
Push [Clock] to set, and select "WAKE UP TIME."
Push [CH Up] or [CH Down], or rotate [CH
Up/Down]* to enter the wake up time edit mode.
• The 'hour' data blinks.
t b
to set items. to set items
39
