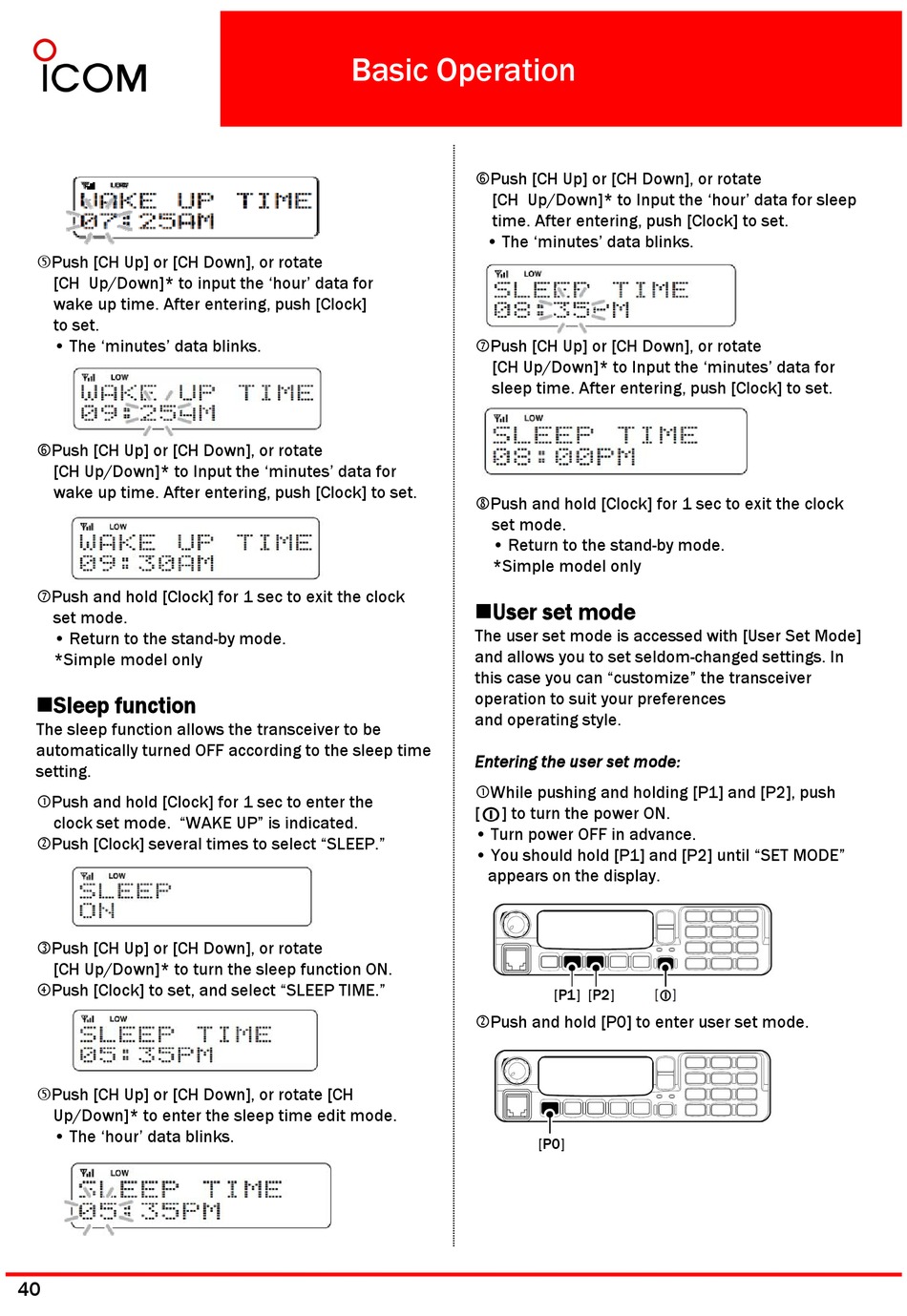

User Set Mode - Icom IC-F9511T User Manual

Push [CH Up] or [CH Down], or rotate
[CH Up/Down]* to input the 'hour' data for
wake up time. After entering, push [Clock]
to set.
• The 'minutes' data blinks.
Push [CH Up] or [CH Down], or rotate
[CH Up/Down]* to Input the 'minutes' data for
wake up time. After entering, push [Clock] to set. wake up time. After entering, push [Clock] to set.
Push and hold [Clock] for 1 sec to exit the clock
set mode.
• Return to the stand-by mode.
*Simple model only *Simple model only
Sleep function
The sleep function allows the transceiver to be
automatically turned OFF according to the sleep time
setting.
Push and hold [Clock] for 1 sec to enter the
clock set mode. "WAKE UP" is indicated. clock set mode "WAKE UP" is indicated
Push [Clock] several times to select "SLEEP."
Push [CH Up] or [CH Down], or rotate
[CH Up/Down]* to turn the sleep function ON.
Push [Clock] to set, and select "SLEEP TIME."
Push [CH Up] or [CH Down], or rotate [CH
Up/Down]* to enter the sleep time edit mode.
• The 'hour' data blinks.
40
Basic Operation
Push [CH Up] or [CH Down], or rotate
[CH Up/Down]* to Input the 'hour' data for sleep
time. After entering, push [Clock] to set.
• The 'minutes' data blinks.
Push [CH Up] or [CH Down], or rotate
[CH Up/Down]* to Input the 'minutes' data for
sleep time. After entering, push [Clock] to set.
Push and hold [Clock] for 1 sec to exit the clock
set mode.
• Return to the stand-by mode.
*Simple model only

User set mode

The user set mode is accessed with [User Set Mode]
and allows you to set seldom-changed settings. In and allows you to set seldom-changed settings In
this case you can "customize" the transceiver
operation to suit your preferences
and operating style.
Entering the user set mode:
While pushing and holding [P1] and [P2], push
[ [ ] ] to turn the power ON.
• Turn power OFF in advance.
• You should hold [P1] and [P2] until "SET MODE"
appears on the display.
Push and hold [P0] to enter user set mode.
C C
p
[P1] [P2]
[P0] [P0]
