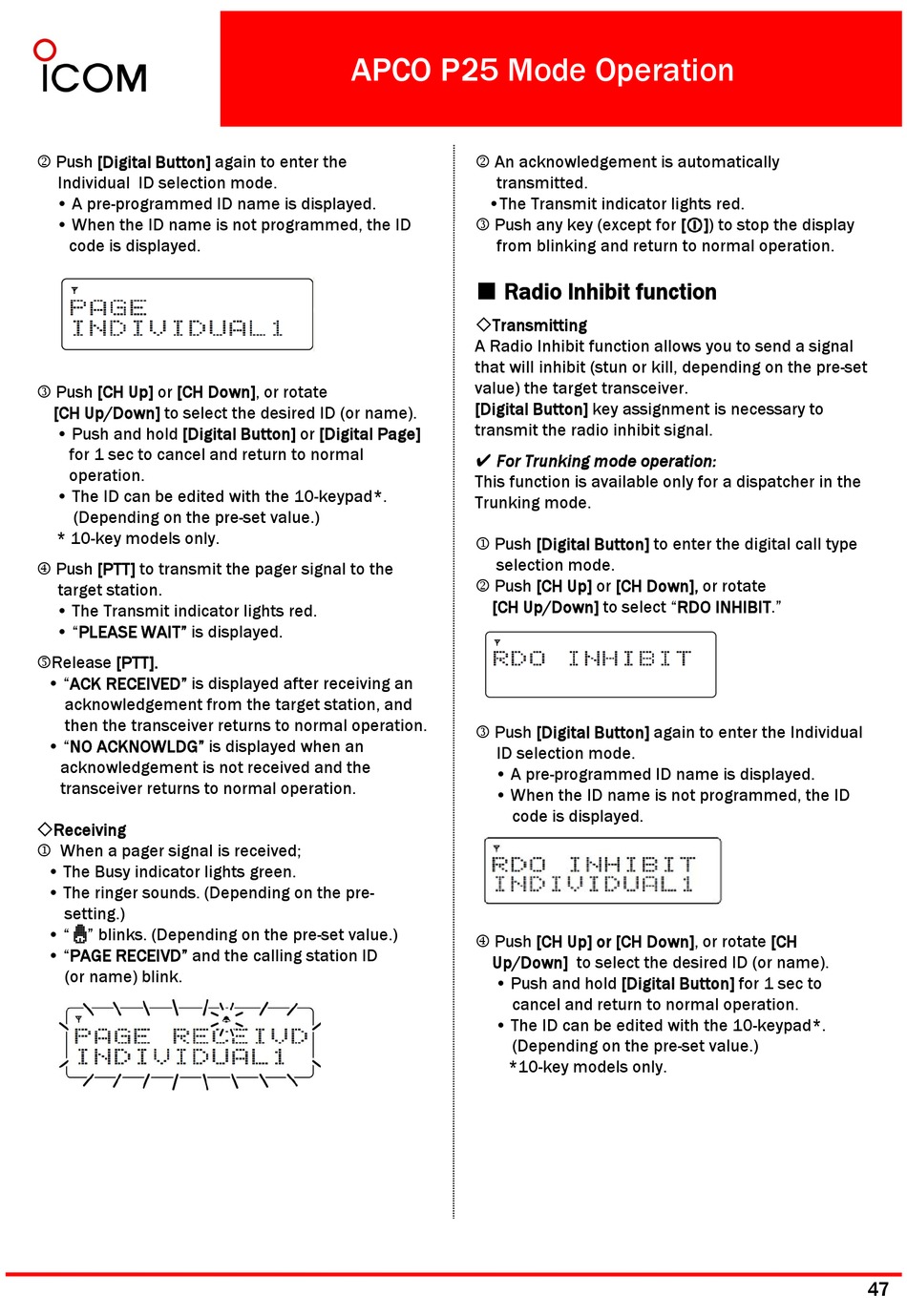

Icom IC-F9511T User Manual page 47

2 Push [Digital Button] again to enter the
Individual ID selection mode.
• A pre-programmed ID name is displayed.
• When the ID name is not programmed, the ID
code is displayed.
3 Push [CH Up] or [CH Down], or rotate
[CH Up/Down] to select the desired ID (or name).
• Push and hold [Digital Button] or [Digital Page]
for 1 sec to cancel and return to normal
operation.
• The ID can be edited with the 10-keypad*. • The ID can be edited with the 10 keypad*
(Depending on the pre-set value.)
* 10-key models only.
4 Push [PTT] to transmit the pager signal to the
target station.
• The Transmit indicator lights red.
• "PLEASE WAIT" is displayed.
5Release [PTT]. 5R l [PTT]
• "ACK RECEIVED" is displayed after receiving an
acknowledgement from the target station, and
then the transceiver returns to normal operation.
• "NO ACKNOWLDG" is displayed when an
acknowledgement is not received and the
transceiver returns to normal operation.
Receiving
1 When a pager signal is received;
• The Busy indicator lights green.
• The ringer sounds. (Depending on the pre-
setting.)
• " " blinks. (Depending on the pre-set value.)
• "PAGE RECEIVD" and the calling station ID
(or name) blink. (or name) blink.
APCO P25 Mode Operation
2 An acknowledgement is automatically
transmitted.
•The Transmit indicator lights red.
3 Push any key (except for [ ]) to stop the display
from blinking and return to normal operation.
■ Radio Inhibit function
Transmitting
A Radio Inhibit function allows you to send a signal
that will inhibit (stun or kill, depending on the pre-set
value) the target transceiver.
[Digital Button] key assignment is necessary to
transmit the radio inhibit signal.
✔ For Trunking mode operation:
This function is available only for a dispatcher in the
Trunking mode.
1 Push [Digital Button] to enter the digital call type
selection mode.
2 Push [CH Up] or [CH Down], or rotate
[CH Up/Down] to select "RDO INHIBIT."
3 Push [Digital Button] again to enter the Individual
ID selection mode.
• A pre-programmed ID name is displayed.
• When the ID name is not programmed, the ID
code is displayed. code is displayed
4 Push [CH Up] or [CH Down], or rotate [CH
Up/Down] to select the desired ID (or name).
• Push and hold [Digital Button] for 1 sec to • Push and hold [Digital Button] for 1 sec to
cancel and return to normal operation.
• The ID can be edited with the 10-keypad*.
(Depending on the pre-set value.)
*10-key models only.
