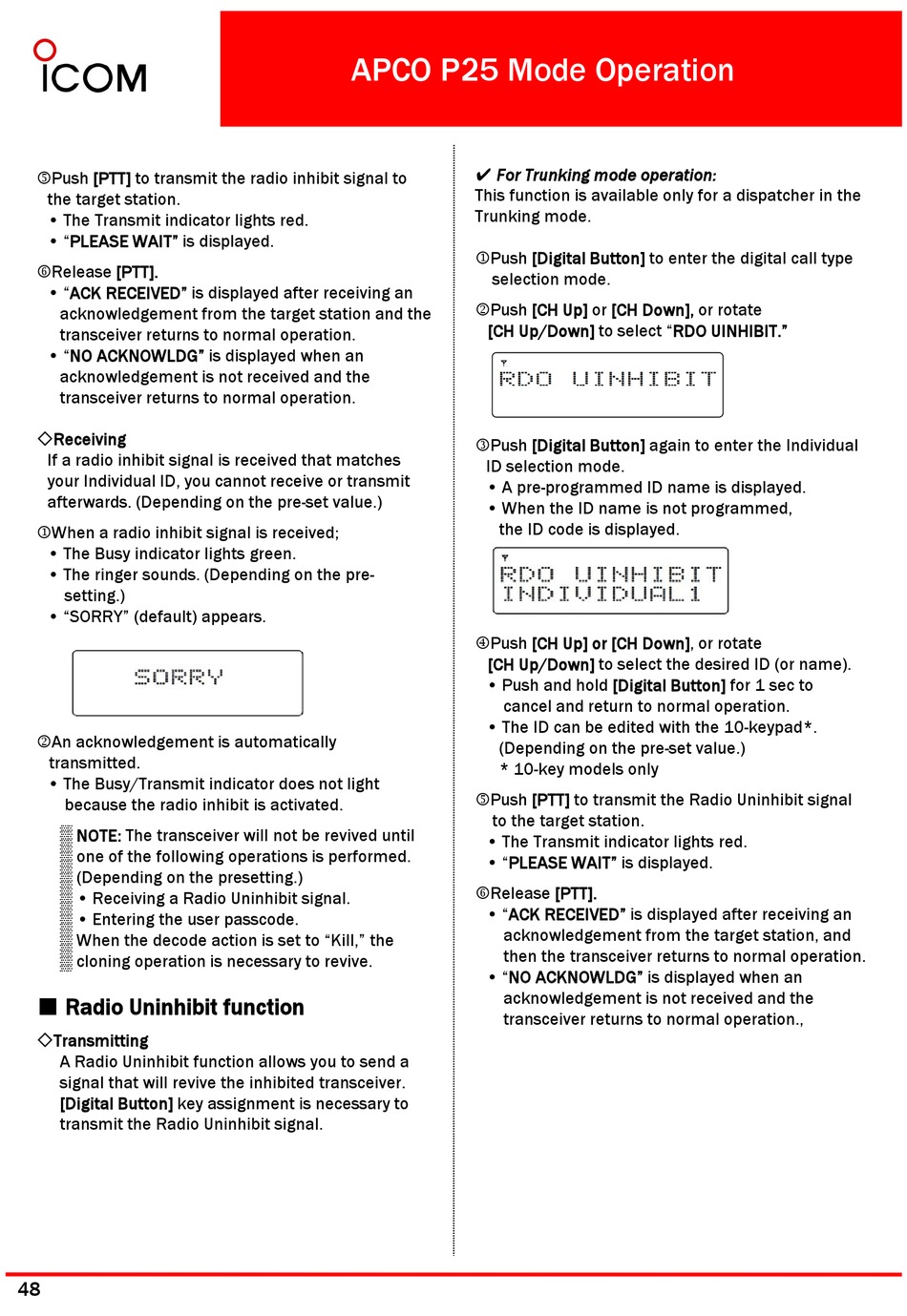

Icom IC-F9511T User Manual page 48

5Push [PTT] to transmit the radio inhibit signal to 5P h [PTT]
the target station.
• The Transmit indicator lights red.
• "PLEASE WAIT" is displayed.
6Release [PTT].
• "ACK RECEIVED" is displayed after receiving an
acknowledgement from the target station and the
transceiver returns to normal operation transceiver returns to normal operation.
• "NO ACKNOWLDG" is displayed when an
acknowledgement is not received and the
transceiver returns to normal operation.
Receiving
If a radio inhibit signal is received that matches
your Individual ID, you cannot receive or transmit
afterwards. (Depending on the pre-set value.) f d (D
1When a radio inhibit signal is received;
• The Busy indicator lights green.
• The ringer sounds. (Depending on the pre-
setting.)
• "SORRY" (default) appears.
2An acknowledgement is automatically
transmitted.
• The Busy/Transmit indicator does not light
because the radio inhibit is activated.
▒ NOTE: The transceiver will not be revived until
▒ one of the following operations is performed.
▒ (Depending on the presetting.)
▒ • Receiving a Radio Uninhibit signal.
▒ • Entering the user passcode.
▒ When the decode action is set to "Kill," the
▒ cloning operation is necessary to revive.
■ Radio Uninhibit function
Transmitting
A Radio Uninhibit function allows you to send a
signal that will revive the inhibited transceiver.
[Digital Button] key assignment is necessary to
transmit the Radio Uninhibit signal.
48
APCO P25 Mode Operation
i h di i hibi i
di h l
✔ For Trunking mode operation: ✔ For Trunking mode operation
l
This function is available only for a dispatcher in the
Trunking mode.
1Push [Digital Button] to enter the digital call type
selection mode.
2Push [CH Up] or [CH Down], or rotate
[CH Up/Down] to select "RDO UINHIBIT." [CH Up/Down] to select RDO UINHIBIT.
3Push [Digital Button] again to enter the Individual
ID selection mode.
• A pre-programmed ID name is displayed.
)
• When the ID name is not programmed,
the ID code is displayed.
4Push [CH Up] or [CH Down], or rotate
[CH Up/Down] to select the desired ID (or name).
• Push and hold [Digital Button] for 1 sec to
cancel and return to normal operation.
• The ID can be edited with the 10-keypad*.
(Depending on the pre-set value.)
* 10-key models only
5Push [PTT] to transmit the Radio Uninhibit signal
to the target station. to the target station
• The Transmit indicator lights red.
• "PLEASE WAIT" is displayed.
6Release [PTT].
• "ACK RECEIVED" is displayed after receiving an
acknowledgement from the target station, and
then the transceiver returns to normal operation.
• "NO ACKNOWLDG" is displayed when an NO ACKNOWLDG is displayed when an
acknowledgement is not received and the
transceiver returns to normal operation.,
