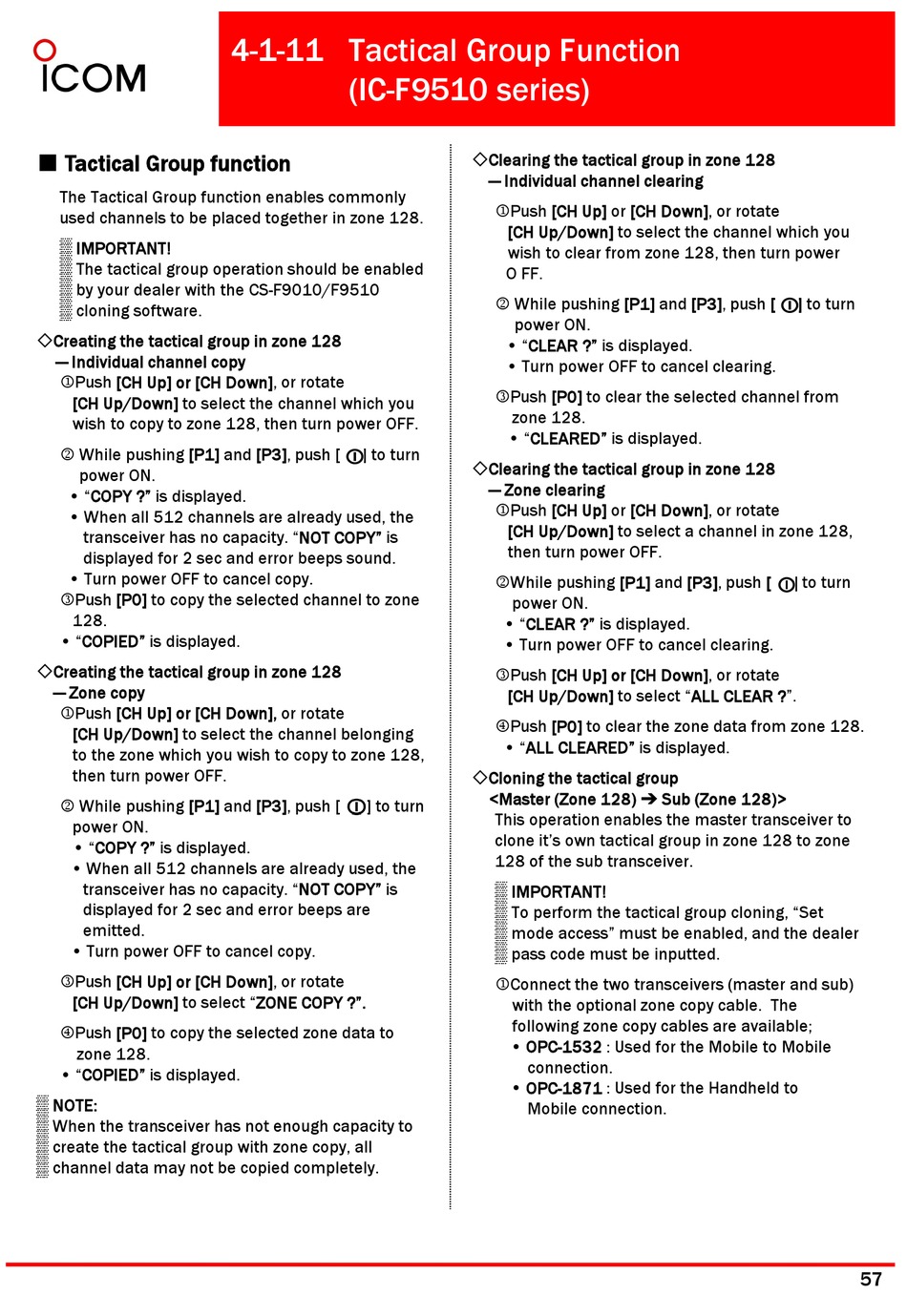

■ Tactical Group function p
The Tactical Group function enables commonly
used channels to be placed together in zone 128.
▒ IMPORTANT!
▒ The tactical group operation should be enabled
▒ by your dealer with the CS-F9010/F9510
▒ cloning software.
Creating the tactical group in zone 128
— Individual channel copy
1Push [CH Up] or [CH Down], or rotate
[CH Up/Down] to select the channel which you
wish to copy to zone 128, then turn power OFF.
2 While pushing [P1] and [P3], push [
power ON.
• "COPY ?" is displayed. "COPY ?" i di l
• When all 512 channels are already used, the
transceiver has no capacity. "NOT COPY" is
displayed for 2 sec and error beeps sound.
• Turn power OFF to cancel copy.
3Push [P0] to copy the selected channel to zone
128.
• "COPIED" is displayed.
Creating the tactical group in zone 128
— Zone copy
1Push [CH Up] or [CH Down], or rotate
[CH Up/Down] to select the channel belonging
to the zone which you wish to copy to zone 128,
then turn power OFF.
2 While pushing [P1] and [P3], push [ p g [
power ON.
• "COPY ?" is displayed.
• When all 512 channels are already used, the
transceiver has no capacity. "NOT COPY" is
displayed for 2 sec and error beeps are
emitted.
• Turn power OFF to cancel copy.
3Push [CH Up] or [CH Down], or rotate
[CH Up/Down] to select "ZONE COPY ?".
4Push [P0] to copy the selected zone data to
zone 128.
• "COPIED" is displayed.
▒ NOTE:
▒ When the transceiver has not enough capacity to ▒
▒ create the tactical group with zone copy, all
▒ channel data may not be copied completely.

4-1-11 Tactical Group Function

(IC-F9510 series)
] to turn
d
] [ ], p [ ] ] to turn
g
Clearing the tactical group in zone 128
— Individual channel clearing
1Push [CH Up] or [CH Down], or rotate
[CH Up/Down] to select the channel which you
wish to clear from zone 128, then turn power
O FF.
2 While pushing [P1] and [P3], push [
power ON. p
• "CLEAR ?" is displayed.
• Turn power OFF to cancel clearing.
3Push [P0] to clear the selected channel from
zone 128.
• "CLEARED" is displayed.
Clearing the tactical group in zone 128
— Zone clearing Zone clearing
1Push [CH Up] or [CH Down], or rotate
[CH Up/Down] to select a channel in zone 128,
then turn power OFF.
2While pushing [P1] and [P3], push [
power ON.
• "CLEAR ?" is displayed.
• Turn power OFF to cancel clearing. p
3Push [CH Up] or [CH Down], or rotate
[CH Up/Down] to select "ALL CLEAR ?".
4Push [P0] to clear the zone data from zone 128.
• "ALL CLEARED" is displayed.
Cloning the tactical group
<Master (Zone 128) ➔ Sub (Zone 128)>
This operation enables the master transceiver to Thi
clone it's own tactical group in zone 128 to zone
128 of the sub transceiver.
▒ IMPORTANT!
▒ To perform the tactical group cloning, "Set
▒ mode access" must be enabled, and the dealer
▒ pass code must be inputted.
1Connect the two transceivers (master and sub)
with the optional zone copy cable. The
following zone copy cables are available;
• OPC-1532 : Used for the Mobile to Mobile
connection.
• OPC-1871 : Used for the Handheld to
Mobile connection.
y
i bl h
] to turn
] to turn
g
i
