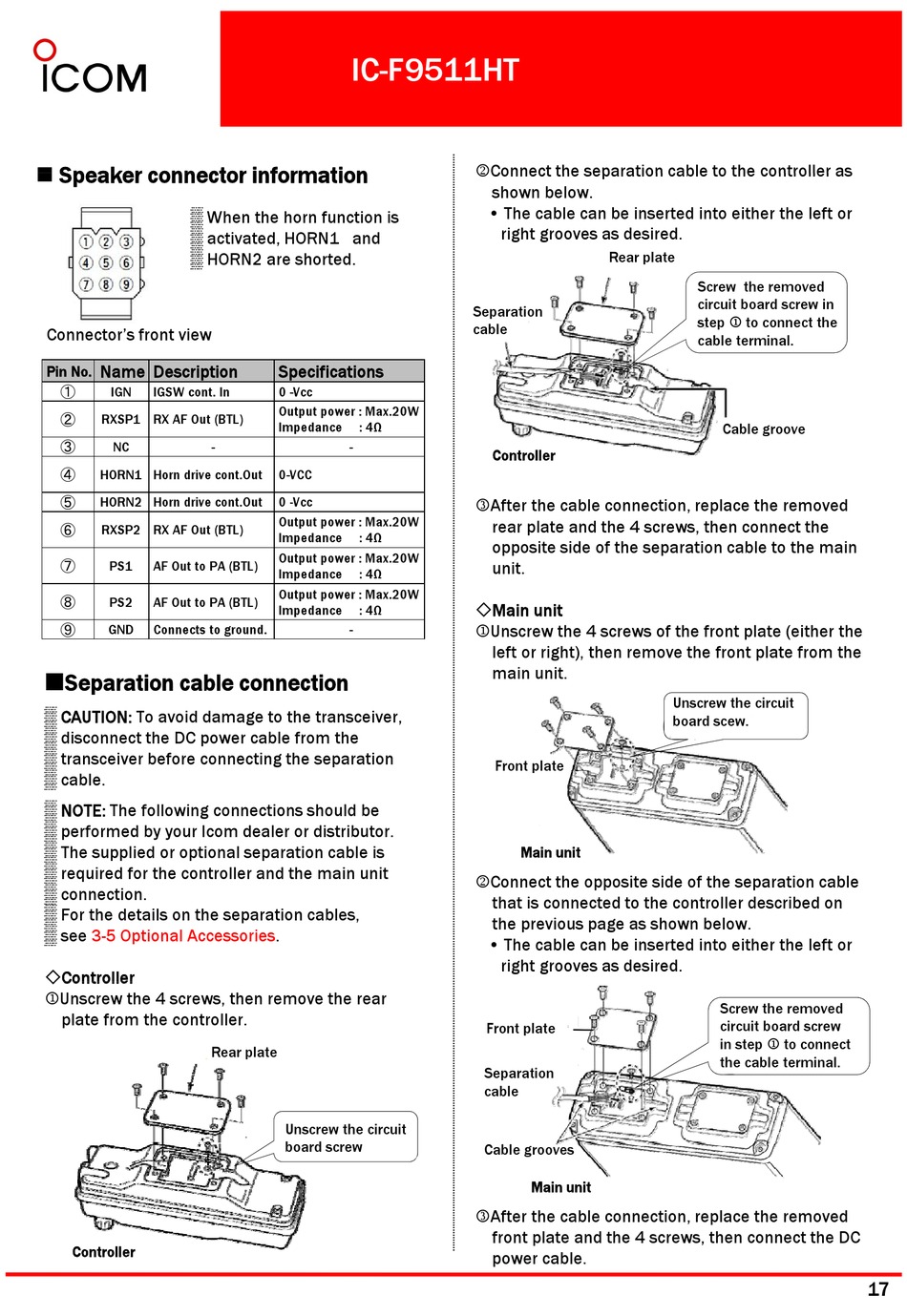

Icom IC-F9511T User Manual page 17

Speaker connector information Speaker connector information
▒ When the horn function is
▒ activated, HORN1 and
▒ HORN2 are shorted.
Connector s front view Connector's front view
Name Description
Pin No.
① IGN IGSW cont. In
② RXSP1 RX AF Out (BTL)
③ NC -
④ HORN1 Horn drive cont.Out
⑤ ⑤ HORN2 Horn drive cont.Out
⑥ RXSP2 RX AF Out (BTL)
⑦ PS1 AF Out to PA (BTL)
⑧ PS2 AF Out to PA (BTL)
⑨ GND Connects to ground.
Separation cable connection
▒ CAUTION: To avoid damage to the transceiver,
▒ disconnect the DC power cable from the
▒ transceiver before connecting the separation
▒ cable.
▒ ▒ NOTE: The following connections should be
▒ performed by your Icom dealer or distributor.
▒ The supplied or optional separation cable is
▒ required for the controller and the main unit
▒ connection.
▒ For the details on the separation cables,
▒ see 3-5 Optional Accessories.
Controller Controller
1Unscrew the 4 screws, then remove the rear
plate from the controller.
Rear plate
Controller
IC-F9511HT
Specifications
0 -Vcc
Output power : Max.20W
Impedance : 4Ω
-
0-VCC
0 -Vcc
Output power : Max.20W
Impedance : 4Ω
Output power : Max.20W
Impedance : 4Ω
Output power : Max.20W
Impedance : 4Ω
-
Unscrew the circuit
b board screw d
2Connect the separation cable to the controller as 2Connect the separation cable to the controller as
shown below.
• The cable can be inserted into either the left or
right grooves as desired.
Rear plate
Separation
cable cab e
Controller
3After the cable connection, replace the removed
rear plate and the 4 screws, then connect the
opposite side of the separation cable to the main
unit.
Main unit
1Unscrew the 4 screws of the front plate (either the
left or right), then remove the front plate from the g ),
main unit.
Front plate
Main unit
2Connect the opposite side of the separation cable
that is connected to the controller described on
the previous page as shown below.
• The cable can be inserted into either the left or
right grooves as desired.
Front plate
Separation
cable
Cable grooves
Main unit
3After the cable connection, replace the removed
front plate and the 4 screws, then connect the DC
power cable.
Screw the removed
circuit board screw in
step 1 to connect the
cable terminal.
Cable groove
p
Unscrew the circuit
board scew.
Screw the removed
circuit board screw
in step 1 to connect
the cable terminal.
17
