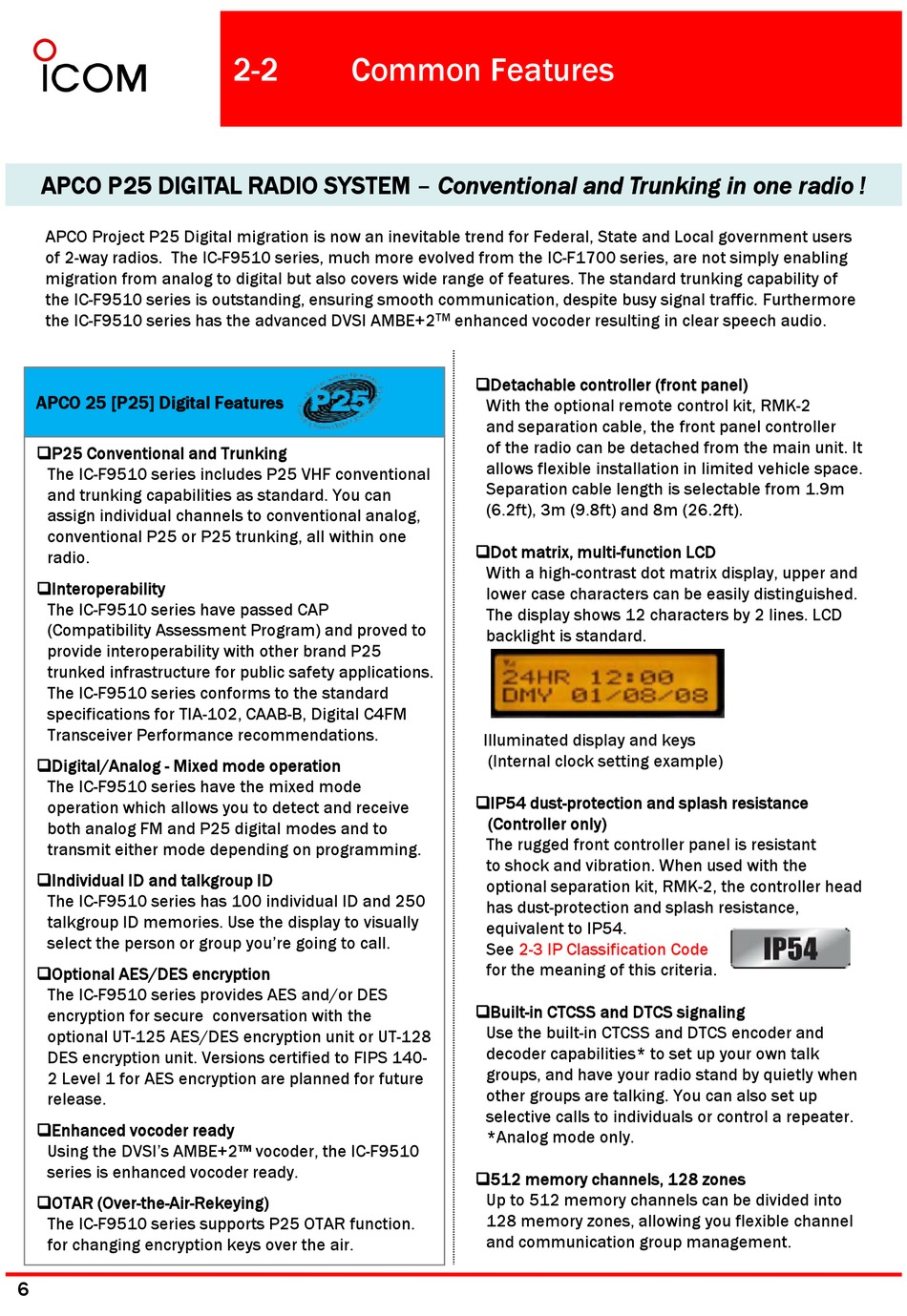

Common Features - Icom IC-F9511T User Manual

APCO P25 DIGITAL RADIO SYSTEM – Conventional and Trunking in one radio !
APCO Project P25 Digital migration is now an inevitable trend for Federal, State and Local government users
of 2-way radios. The IC-F9510 series, much more evolved from the IC-F1700 series, are not simply enabling
migration from analog to digital but also covers wide range of features. The standard trunking capability of
the IC-F9510 series is outstanding, ensuring smooth communication, despite busy signal traffic. Furthermore
the IC-F9510 series has the advanced DVSI AMBE+2
APCO 25 [P25] Digital Features
P25 Conventional and Trunking
The IC-F9510 series includes P25 VHF conventional
and trunking capabilities as standard. You can and trunking capabilities as standard You can
assign individual channels to conventional analog,
conventional P25 or P25 trunking, all within one
radio.
Interoperability
The IC-F9510 series have passed CAP
(Compatibility Assessment Program) and proved to
p provide interoperability with other brand P25 p
trunked infrastructure for public safety applications.
The IC-F9510 series conforms to the standard
specifications for TIA-102, CAAB-B, Digital C4FM
Transceiver Performance recommendations.
Digital/Analog - Mixed mode operation
The IC-F9510 series have the mixed mode
operation which allows you to detect and receive
both analog FM and P25 digital modes and to
transmit either mode depending on programming.
Individual ID and talkgroup ID
The IC-F9510 series has 100 individual ID and 250
talkgroup ID memories. Use the display to visually
select the person or group you're going to call.
Optional AES/DES encryption p /
The IC-F9510 series provides AES and/or DES
encryption for secure conversation with the
optional UT-125 AES/DES encryption unit or UT-128
DES encryption unit. Versions certified to FIPS 140-
2 Level 1 for AES encryption are planned for future
release.
Enhanced vocoder ready
Using the DVSI's AMBE+2™ vocoder, the IC-F9510
series is enhanced vocoder ready.
OTAR (Over-the-Air-Rekeying)
The IC-F9510 series supports P25 OTAR function.
for changing encryption keys over the air.
6
2-2

Common Features

y
yp
TM enhanced vocoder resulting in clear speech audio.
Detachable controller (front panel)
With the optional remote control kit, RMK-2
and separation cable, the front panel controller
of the radio can be detached from the main unit. It
allows flexible installation in limited vehicle space.
Separation cable length is selectable from 1.9m p
(6.2ft), 3m (9.8ft) and 8m (26.2ft).
Dot matrix, multi-function LCD
With a high-contrast dot matrix display, upper and
lower case characters can be easily distinguished.
The display shows 12 characters by 2 lines. LCD
backlight is standard.
Illuminated display and keys
(Internal clock setting example)
IP54 dust-protection and splash resistance
(C (Controller only) t ll l )
The rugged front controller panel is resistant
to shock and vibration. When used with the
optional separation kit, RMK-2, the controller head
has dust-protection and splash resistance,
equivalent to IP54.
See 2-3 IP Classification Code
for the meaning of this criteria.
Built-in CTCSS and DTCS signaling
Use the built-in CTCSS and DTCS encoder and
decoder capabilities* to set up your own talk
groups, and have your radio stand by quietly when
other groups are talking. You can also set up
selective calls to individuals or control a repeater.
*Analog mode only. g
512 memory channels, 128 zones
Up to 512 memory channels can be divided into
128 memory zones, allowing you flexible channel
and communication group management.
