D-sub accessory connector
The IC-F9511 series has a D-SUB 25 pin ACC
connector for connecting various external devices.

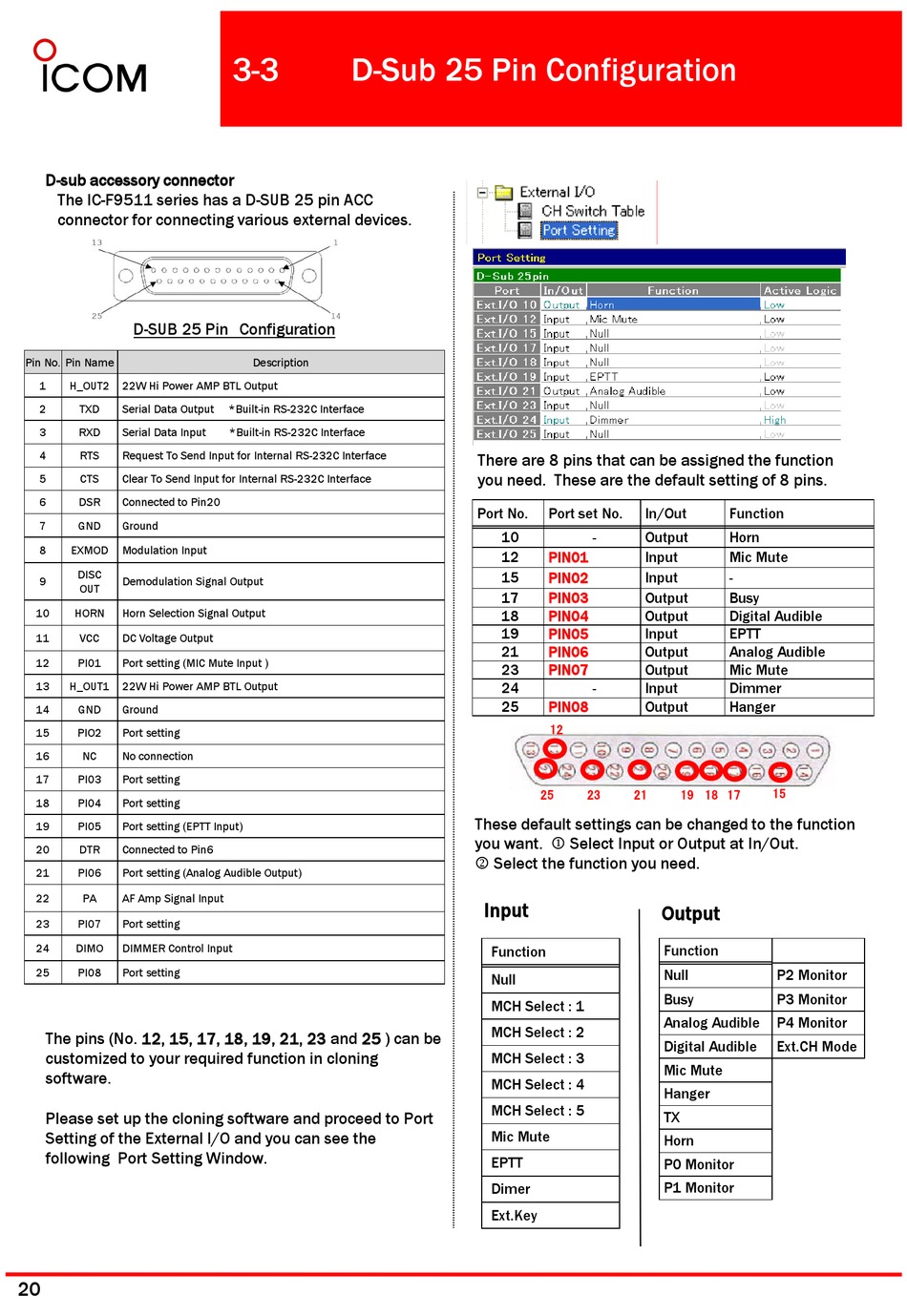

D-SUB 25 Pin Configuration

D SUB 25 Pin Configuration
Pin No. Pin Name
1
H_OUT2
22W Hi Power AMP BTL Output
2
TXD
Serial Data Output
3
RXD
Serial Data Input
4
RTS
Request To Send Input for Internal RS-232C Interface
5
CTS
Clear To Send Input for Internal RS-232C Interface
6
DSR
Connected to Pin20
7
GND
Ground
8
EXMOD
Modulation Input
DISC
9
Demodulation Signal Output
OUT
10
HORN
Horn Selection Signal Output
11
VCC
DC Voltage Output
12
PI01
Port setting (MIC Mute Input )
13
H_OUT1
22W Hi Power AMP BTL Output
14
GND
Ground
15
PIO2
Port setting
16
NC
No connection
17
PI03
Port setting
18
PI04
Port setting
19
PI05
Port setting (EPTT Input)
20
DTR
Connected to Pin6
21
PI06
Port setting (Analog Audible Output)
22
PA
AF Amp Signal Input
23
PI07
Port setting
24
DIMO
DIMMER Control Input
25
PI08
Port setting
The pins (No. 12, 15, 17, 18, 19, 21, 23 and 25 ) can be
customized to your required function in cloning
software.
Please set up the cloning software and proceed to Port
Setting of the External I/O and you can see the
Setting of the External I/O and you can see the
following Port Setting Window.
20
3-3
D-Sub 25 Pin Configuration
Description
*Built-in RS-232C Interface
*Built-in RS-232C Interface
There are 8 pins that can be assigned the function
you need. These are the default setting of 8 pins.
Port No.
Port set No.
In/Out
10
-
Output
12
PIN01
Input
15
PIN02
Input
17
PIN03
Output
18
PIN04
Output
19
PIN05
Input
21
PIN06
Output
23
PIN07
Output
24
-
Input
25
PIN08
Output
12
25
23
21
These default settings can be changed to the function
Th
d f
lt
tti g
you want. 1 Select Input or Output at In/Out.
2 Select the function you need.
Input
Function
Null
Null
MCH Select : 1
MCH Select : 2
MCH Select : 3
MCH Select : 4
MCH Select : 5
Mic Mute
EPTT
Dimer
Ext.Key
Function
Horn
Mic Mute
-
Busy
Digital Audible
EPTT
p
Analog Audible
g
Mic Mute
Dimmer
Hanger
15
19
18
17
b
h
g d t th f
ti
Output
Function
Null
P2 Monitor
Busy
P3 Monitor
Analog Audible
P4 Monitor
Digital Audible
Ext.CH Mode
Mic Mute
Hanger
TX
Horn
Horn
P0 Monitor
P1 Monitor
