IC-F9511HT

▼Two front panels for one box available

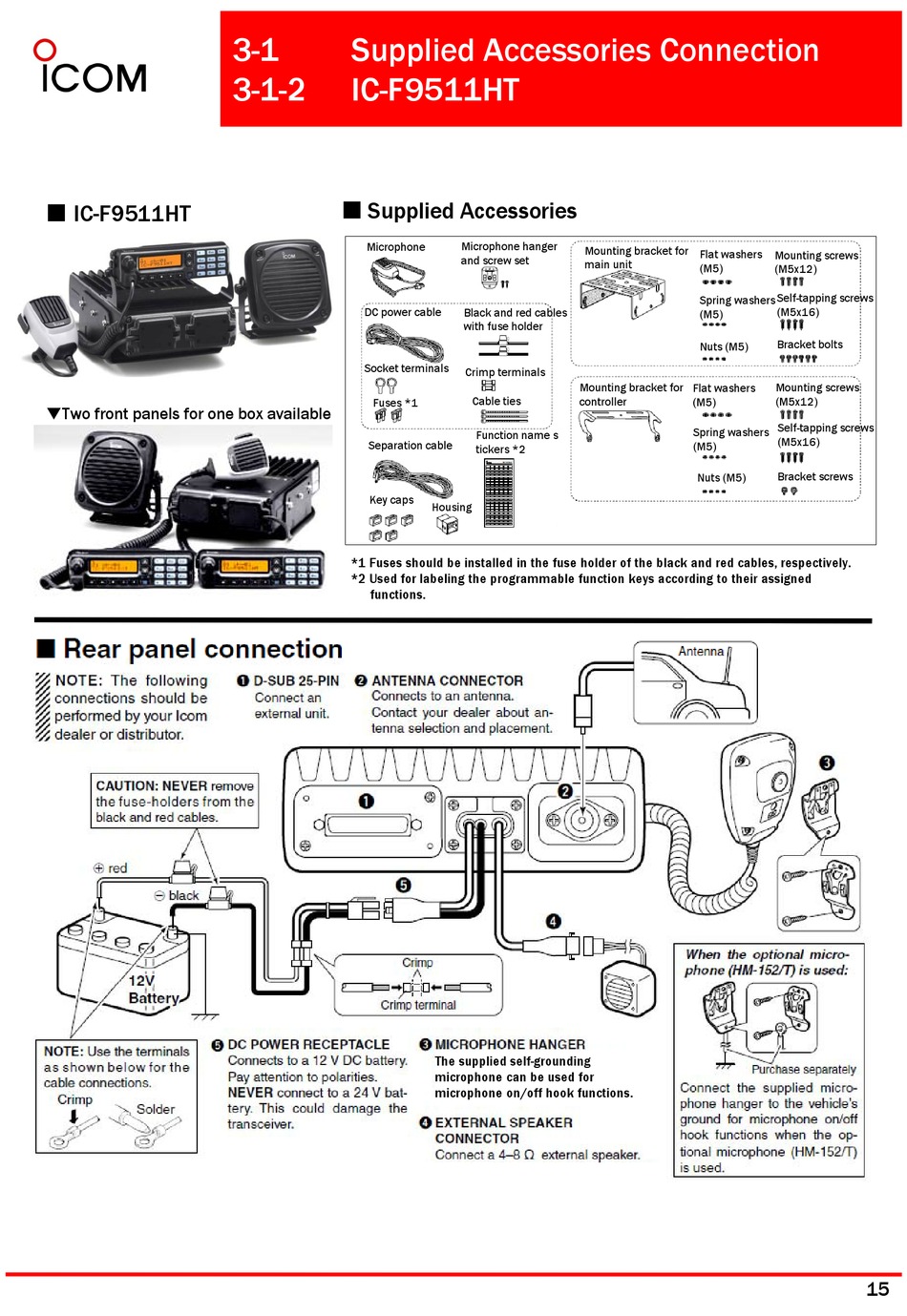

3-1 Supplied Accessories Connection
3-1-2 IC-F9511HT
Supplied Accessories
Microphone
DC power cable
Socket terminals
Fuses *1
Separation cable
Key caps K
Key
caps
*1 Fuses should be installed in the fuse holder of the black and red cables, respectively.
*2 Used for labeling the programmable function keys according to their assigned
functions.
Microphone hanger
Mounting bracket for
and screw set
main unit
Black and red cables
with fuse holder
Crimp terminals
Mounting bracket for
Cable ties controller
Function name s
tickers *2
Housing
Hous
ing
The supplied self-grounding
microphone can be used for
microphone on/off hook functions.
Flat washers
Mounting screws
Mounting screws
(M5)
(M5x12)
(M5x12)
Self-tapping screws
Spring washers
Self-tapping
(M5x16)
(M5)
screws
(M5x16) (M5x16)
Bracket bolts
Nuts (M5)
Mounting screws
Flat washers
Mounting screws
(M5x12)
(M5)
(M5x12)
Self-tapping screws
Spring washers
(M5x16)
(M5)
Bracket screws
Nuts (M5)
