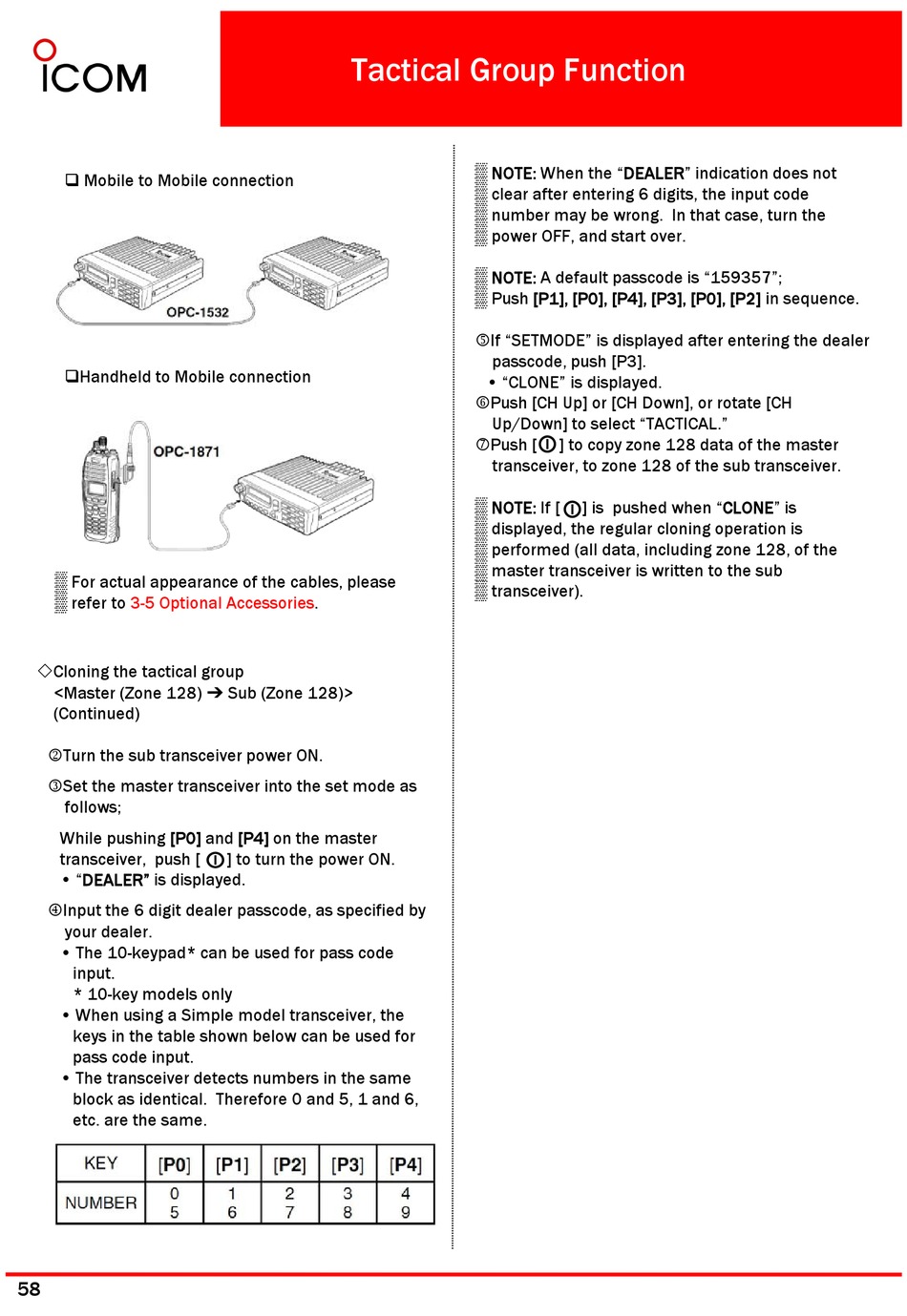

Icom IC-F9511T User Manual page 58

Mobile to Mobile connection
Handheld to Mobile connection
▒ For actual appearance of the cables, please
▒ refer to 3-5 Optional
Cloning the tactical group
<Master (Zone 128) ➔ Sub (Zone 128)>
(Continued)
2Turn the sub transceiver power ON.
3Set the master transceiver into the set mode as
follows;
While pushing [P0] and [P4] on the master
transceiver, push [
• "DEALER" is displayed.
4Input the 6 digit dealer passcode, as specified by
your dealer.
• The 10-keypad* can be used for pass code
input. p
* 10-key models only
• When using a Simple model transceiver, the
keys in the table shown below can be used for
pass code input.
• The transceiver detects numbers in the same
block as identical. Therefore 0 and 5, 1 and 6,
etc. are the same.
58
Tactical Group Function
Accessories.
] to turn the power ON.
▒ NOTE: When the DEALER indication does not ▒ NOTE: When the "DEALER" indication does not
▒ clear after entering 6 digits, the input code
▒ number may be wrong. In that case, turn the
▒ power OFF, and start over.
▒ NOTE: A default passcode is "159357";
▒ Push [P1], [P0], [P4], [P3], [P0], [P2] in sequence.
5If "SETMODE" is displayed after entering the dealer 5If "SETMODE" i di l
passcode, push [P3].
• "CLONE" is displayed.
6Push [CH Up] or [CH Down], or rotate [CH
Up/Down] to select "TACTICAL."
7Push [ ] to copy zone 128 data of the master
transceiver, to zone 128 of the sub transceiver.
▒ NOTE: If [ ] is pushed when "CLONE" is
▒ displayed, the regular cloning operation is
▒ performed (all data, including zone 128, of the
▒ master transceiver is written to the sub
▒ transceiver).
