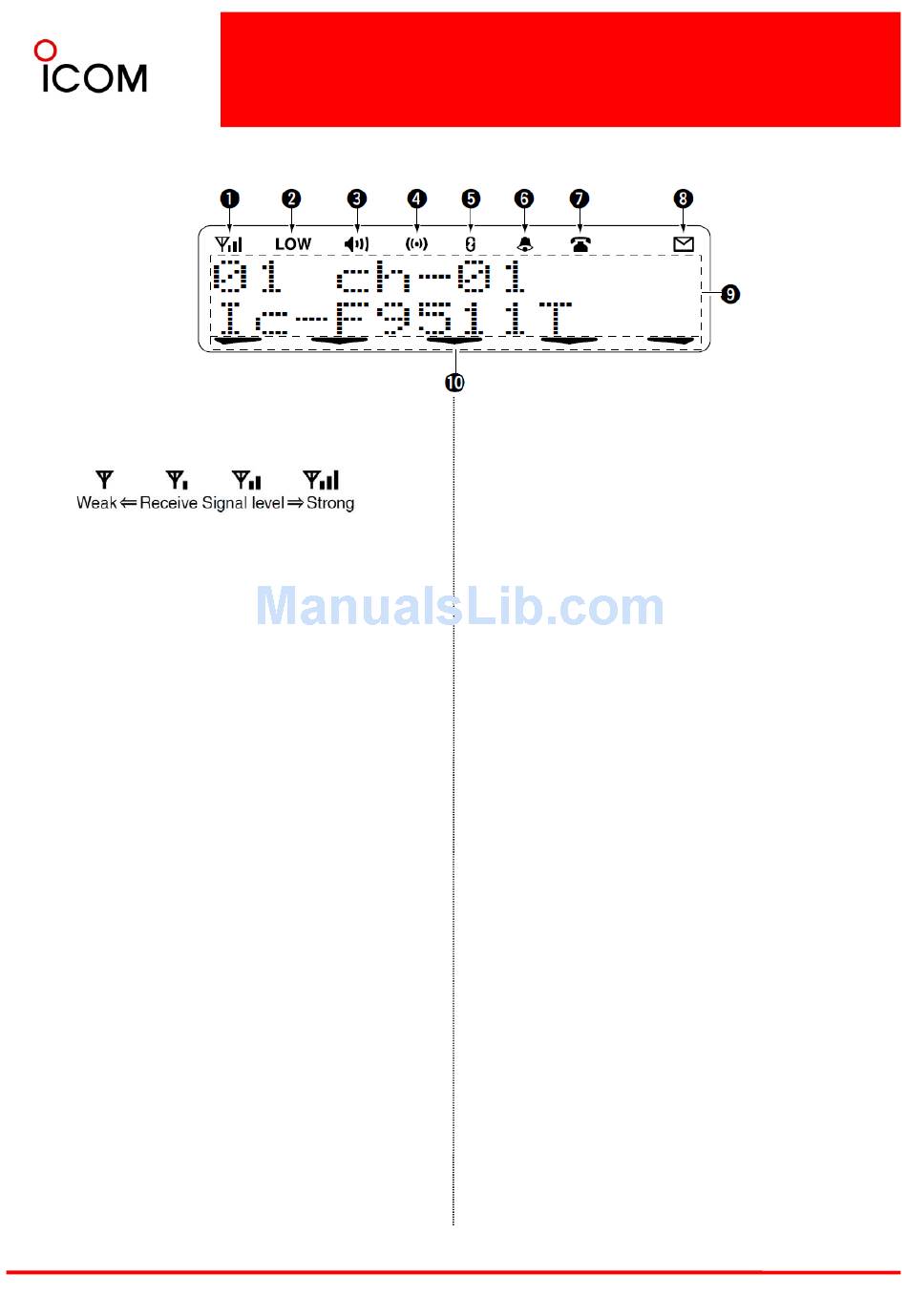

➊RECEIVED SIGNAL STRENGTH INDICATOR
Indicates relative signal strength level.
➋LOW POWER INDICATOR
Appears when low output power is selected.
* When high output power is selected, no indicator
appears.
➌AUDIBLE INDICATOR
Appears when the channel is in the 'audible'
(unmute) condition.
➍COMPANDER INDICATOR
Appears when the compander function* is activated.
* Analog mode operation only
➎SCRAMBLER INDICATOR
➎SCRAMBLER INDICATOR
Appears when the voice scrambler or encryption
function is activated.
➏BELL INDICATOR
Appears/blinks when the specific page call* is
received, depending on how the transceiver has been
pre-programmed.
* P25 operation only
* P25
ti
l
➐TELEPHONE INDICATOR
Appears when a phone call* is received.
* P25 operation only
➑SHORT MESSAGE INDICATOR
Appears when a Status message or Short message is
received.
* P25 operation only
4-1-2
Function Display
IC-F9511S/T,F9521S/T, F9523S/T
➒ALPHANUMERIC DISPLAY
Displays an operating channel number, channel
name, Set mode contents, DTMF code, etc.
➓ACTIVATED KEY INDICATOR
Appears above the key assigned as [Scan Add/Del
(Tag)] key when that key has been activated.
▒ See the operating guide for details of Analog
▒ and P25 Trunking/Conventional system
▒ operations. Consult your Icom dealer or system
▒ operator for details concerning your
▒ operator for details concerning your
▒ transceiver's programming.
