The IC F9510 series provides capability to set up your own talk groups and quiet stand by when others are The IC-F9510 series provides capability to set up your own talk groups and quiet stand-by when others are
talking. You can also set up selective calls to individuals in P25 digital operation mode.
CTCSS or DTCS like operation
■Memory CH > Zone
RX NAC
Set the desired receive NAC (Network Access Code)
from 000 to FFF (hexadecimal code) to separate
the transceiver from the same/adjacent channel
station according to the assigned code.
The transceiver selectively accesses the one of The transceiver selectively accesses the one of
several repeaters within overlapping coverage
areas allowing the user to listen to a specific
repeater.
▒ NOTE:
▒ "F7E" is a special code, and matches to any NAC.
TX NAC TX NAC
Set the desired transmit NAC (Network Access
Code) from 000 to FFF (hexadecimal code) to
separate the transceiver from the same/adjacent
channel station according to the assigned code.
The transceiver selectively accesses one of several
repeaters within overlapping coverage areas
allowing the user to send to a specific repeater. g
▒ NOTE:
▒ "F7E" and "F7F" are invalid.
Squelch Type setting
NAC : The mute is released when the matched
NAC is received even if the Individual ID
or Talkgroup ID is not matched.
Selective Call operation
Individual Call
Unit ID
Available transceiver's unit ID is 000001 to
98967F(hexadecimal code) or 1 to 9999999
(decimal code) to each channel.
Each ID can be set with up to a 12-character ID Each ID can be set with up to a 12 character ID
name.
Individual Call Option (Digital > Option)
ID-MR
When this function is turned ON, the received ID
code is memorized.
76
4-3

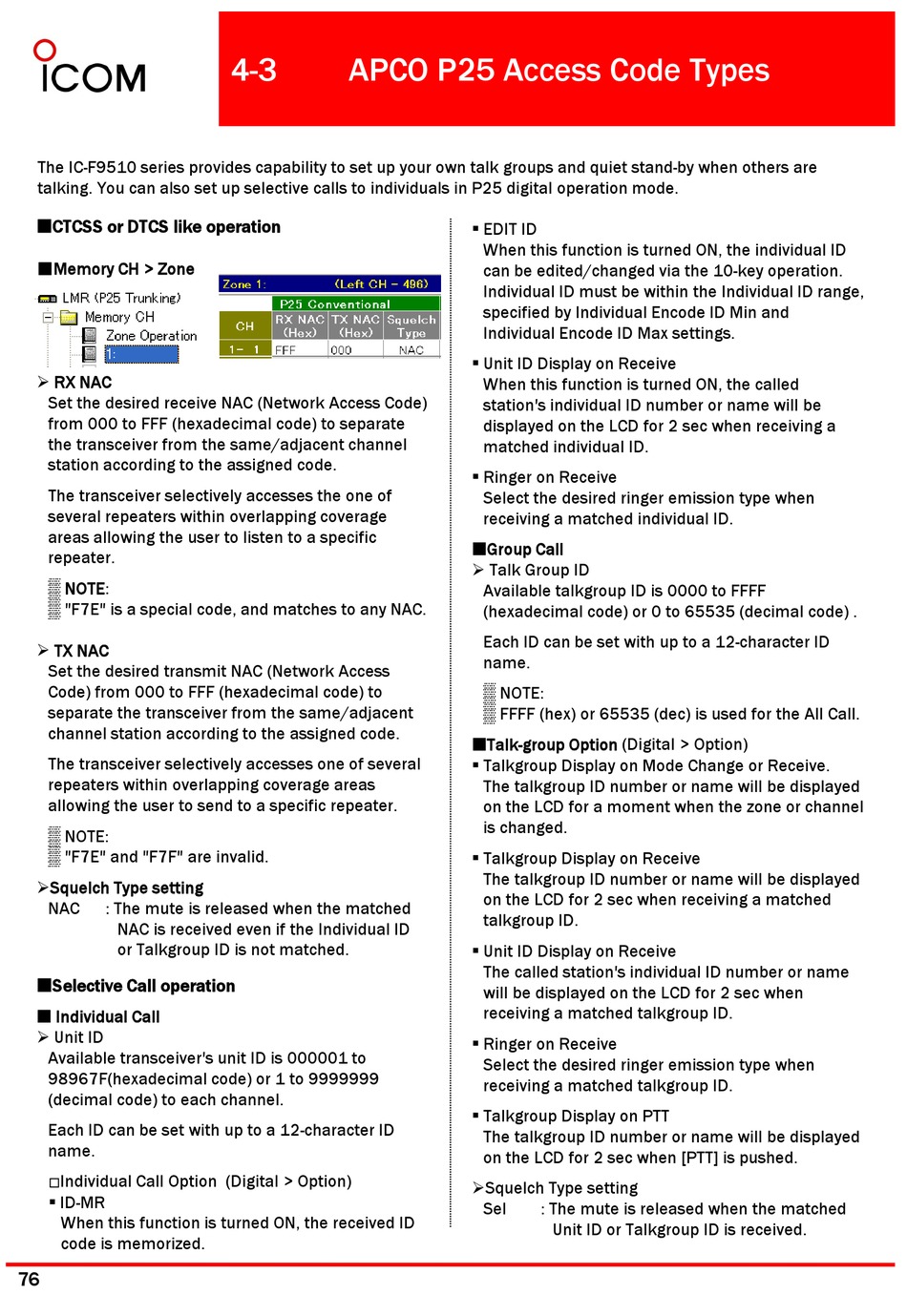

APCO P25 Access Code Types

p p
EDIT ID
When this function is turned ON, the individual ID
can be edited/changed via the 10-key operation.
Individual ID must be within the Individual ID range,
specified by Individual Encode ID Min and
Individual Encode ID Max settings. Individual Encode ID Max settings
Unit ID Display on Receive
When this function is turned ON, the called
station's individual ID number or name will be
displayed on the LCD for 2 sec when receiving a
matched individual ID.
Ringer on Receive
Select the desired ringer emission type when S l t th d i d i
receiving a matched individual ID.
Group Call
Talk Group ID
Available talkgroup ID is 0000 to FFFF
(hexadecimal code) or 0 to 65535 (decimal code) .
Each ID can be set with up to a 12-character ID
name.
▒ NOTE:
▒ FFFF (hex) or 65535 (dec) is used for the All Call.
Talk-group Option (Digital > Option)
Talkgroup Display on Mode Change or Receive.
The talkgroup ID number or name will be displayed
on the LCD for a moment when the zone or channel
is changed.
Talkgroup Display on Receive
The talkgroup ID number or name will be displayed
on the LCD for 2 sec when receiving a matched
talkgroup ID.
Unit ID Display on Receive
The called station's individual ID number or name The called station s individual ID number or name
will be displayed on the LCD for 2 sec when
receiving a matched talkgroup ID.
Ringer on Receive
Select the desired ringer emission type when
receiving a matched talkgroup ID.
Talkgroup Display on PTT
The talkgroup ID number or name will be displayed The talkgroup ID number or name will be displayed
on the LCD for 2 sec when [PTT] is pushed.
Squelch Type setting
Sel : The mute is released when the matched
Unit ID or Talkgroup ID is received.
