Mounting The Transceiver; Flat Mounting - Icom GM600 Instruction Manual

■ Mounting the transceiver

The supplied universal mounting bracket with your
transceiver enables overhead or flat mounting.
• Mount the transceiver securely with the 5 supplied screws
(5 × 20 mm) to a surface that is more than 10 mm thick
and can support more than 5 kg.
• Mount the transceiver so its face is at 90° to your line of
sight when operating.
CAUTION: Keep the transceiver and microphone at least
1 meter away from your vessel's magnetic navigation
compass.
NOTE:
• Check the installation angle; the function display may not
be easy to read at some angles.
• When mounting the transceiver on the place that is prone
to strong vibration, use the supplied sponges between
the transceiver and mounting bracket to reduce the effect
of the vibration.
CONNECTIONS AND MAINTENANCE

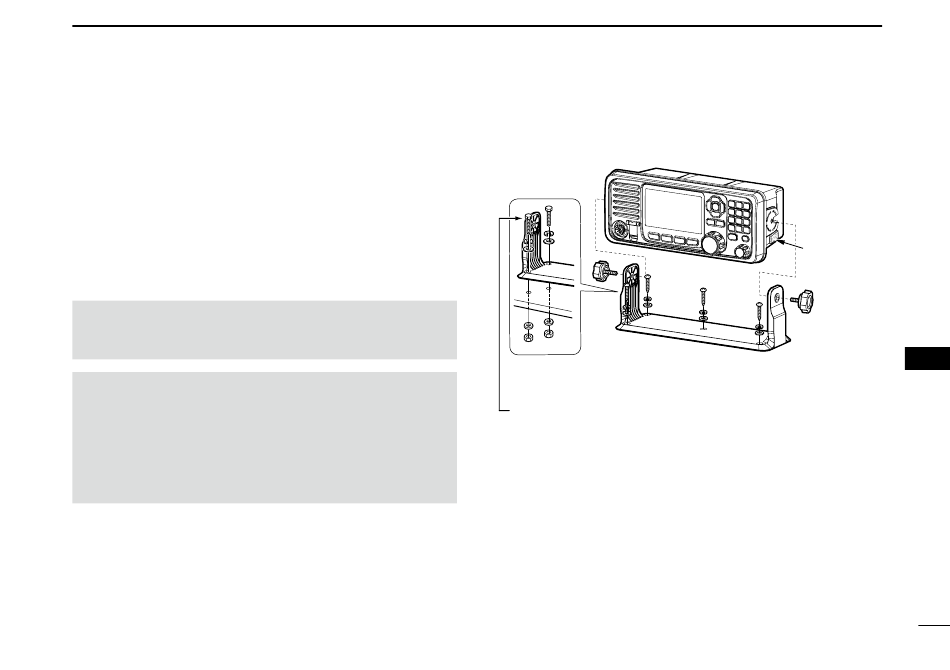

Flat mounting

*
Sponges reduce the vibration effects.
See NOTE to the left.
These screws are shown as only a mounting example.
Not supplied accessories.
