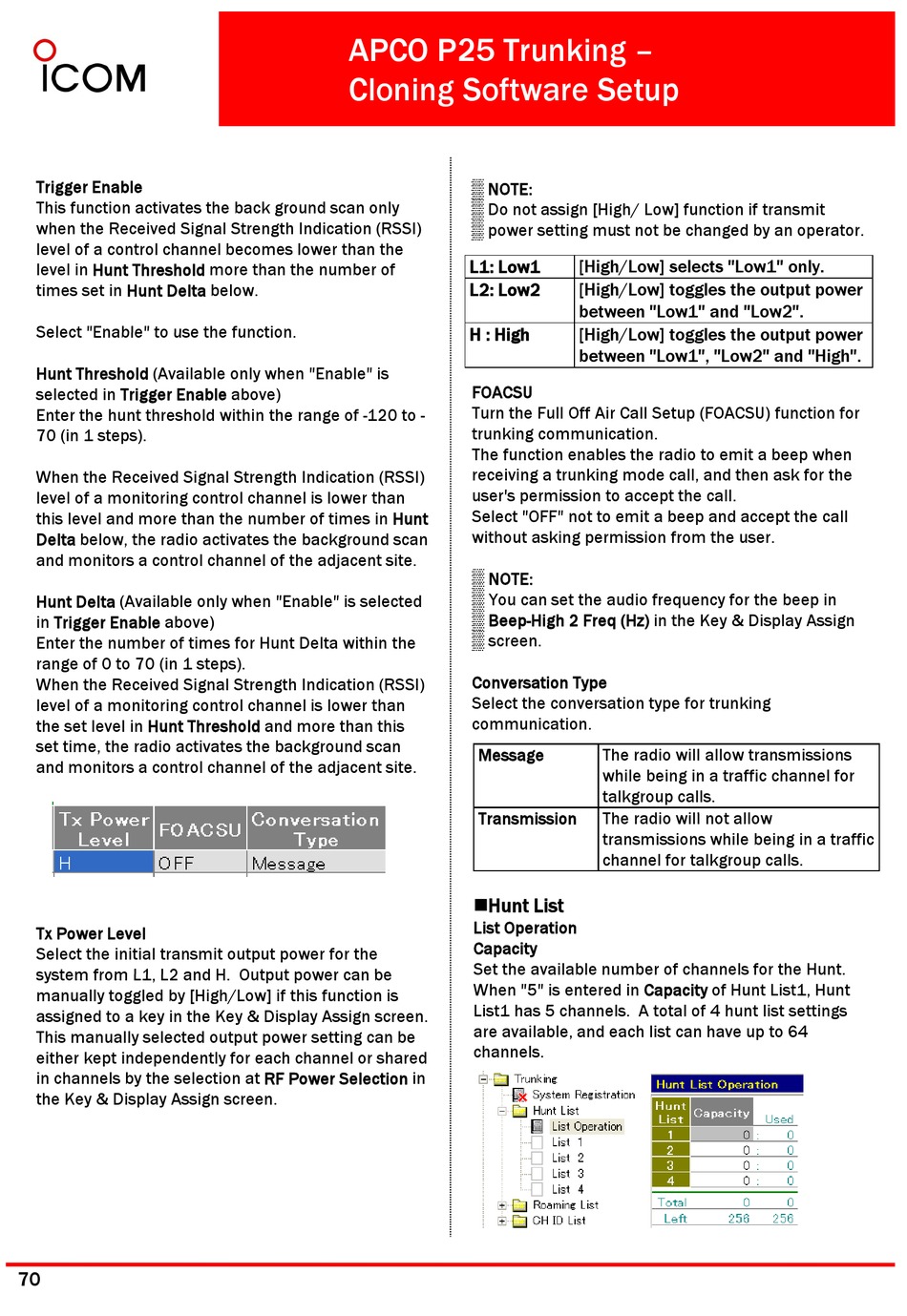

Icom IC-F9511T User Manual page 70

Trigger Enable
This function activates the back ground scan only
when the Received Signal Strength Indication (RSSI)
level of a control channel becomes lower than the
level in Hunt Threshold more than the number of
times set in Hunt Delta below.
Select Enable to use the function. Select "Enable" to use the function
Hunt Threshold (Available only when "Enable" is
selected in Trigger Enable above)
Enter the hunt threshold within the range of -120 to -
70 (in 1 steps).
When the Received Signal Strength Indication (RSSI)
level of a monitoring control channel is lower than l l f it i
this level and more than the number of times in Hunt
Delta below, the radio activates the background scan
and monitors a control channel of the adjacent site.
Hunt Delta (Available only when "Enable" is selected
in Trigger Enable above)
Enter the number of times for Hunt Delta within the
range of 0 to 70 (in 1 steps).
When the Received Signal Strength Indication (RSSI)
level of a monitoring control channel is lower than
the set level in Hunt Threshold and more than this
set time, the radio activates the background scan
and monitors a control channel of the adjacent site.
Tx Power Level
Select the initial transmit output power for the
system from L1 L2 and H Output power can be system from L1, L2 and H. Output power can be
manually toggled by [High/Low] if this function is
assigned to a key in the Key & Display Assign screen.
This manually selected output power setting can be
either kept independently for each channel or shared
in channels by the selection at RF Power Selection in
the Key & Display Assign screen.
70
APCO P25 Trunking –
Cloning Software Setup
t l h l i l th
▒ NOTE:
▒ Do not assign [High/ Low] function if transmit
▒ power setting must not be changed by an operator.
L1: Low1 [High/Low] selects "Low1" only.
L2: Low2 [High/Low] toggles the output power
between "Low1" and "Low2".
H : High H : High [High/Low] toggles the output power [High/Low] toggles the output power
between "Low1", "Low2" and "High".
FOACSU
Turn the Full Off Air Call Setup (FOACSU) function for
trunking communication.
The function enables the radio to emit a beep when
receiving a trunking mode call, and then ask for the
user's permission to accept the call. ser's permission to accept the call
Select "OFF" not to emit a beep and accept the call
without asking permission from the user.
▒ NOTE:
▒ You can set the audio frequency for the beep in
▒ Beep-High 2 Freq (Hz) in the Key & Display Assign
▒ screen.
Conversation Type
Select the conversation type for trunking
communication.
Message The radio will allow transmissions
while being in a traffic channel for
talkgroup calls.
Transmission T i i The radio will not allow Th
transmissions while being in a traffic
channel for talkgroup calls.
Hunt List
List Operation
Capacity
Set the available number of channels for the Hunt. Set the available number of channels for the Hunt.
When "5" is entered in Capacity of Hunt List1, Hunt
List1 has 5 channels. A total of 4 hunt list settings
are available, and each list can have up to 64
channels.
