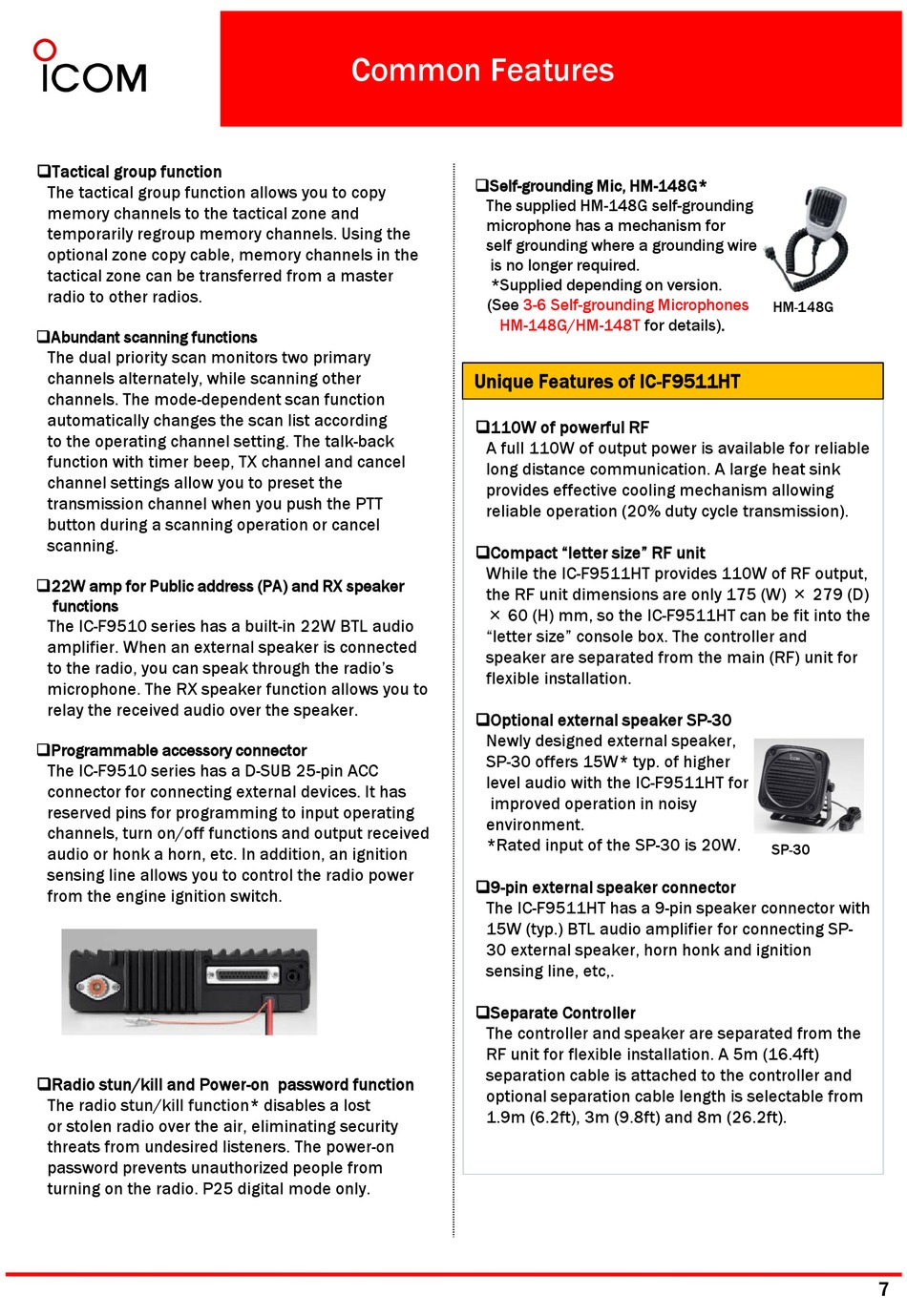

Icom IC-F9511T User Manual page 7

Tactical group function Tactical group function
The tactical group function allows you to copy
memory channels to the tactical zone and
temporarily regroup memory channels. Using the
optional zone copy cable, memory channels in the
tactical zone can be transferred from a master
radio to other radios.
Abundant scanning functions Abundant scanning functions
The dual priority scan monitors two primary
channels alternately, while scanning other
channels. The mode-dependent scan function
automatically changes the scan list according
to the operating channel setting. The talk-back
function with timer beep, TX channel and cancel
channel settings allow you to preset the
transmission channel when you push the PTT
button during a scanning operation or cancel
scanning.
22W amp for Public address (PA) and RX speaker
functions
The IC-F9510 series has a built-in 22W BTL audio
amplifier. When an external speaker is connected
to the radio, you can speak through the radio's
microphone. The RX speaker function allows you to
relay the received audio over the speaker.
Programmable accessory connector
The IC-F9510 series has a D-SUB 25-pin ACC
connector for connecting external devices. It has
reserved pins for programming to input operating p p g
channels, turn on/off functions and output received
audio or honk a horn, etc. In addition, an ignition
sensing line allows you to control the radio power
from the engine ignition switch.
Radio stun/kill and Power-on password function
The radio stun/kill function* disables a lost
or stolen radio over the air, eliminating security
th threats from undesired listeners. The power-on t f d i d li t
password prevents unauthorized people from
turning on the radio. P25 digital mode only.
Common Features
g p p g
Th
Self-grounding Mic, HM-148G*
The supplied HM-148G self-grounding
microphone has a mechanism for
self grounding where a grounding wire
is no longer required.
*Supplied depending on version.
(See 3-6 Self-grounding Microphones
HM-148G/HM-148T for details).
Unique Features of IC-F9511HT
110W of powerful RF
A full 110W of output power is available for reliable
long distance communication. A large heat sink
p provides effective cooling mechanism allowing
reliable operation (20% duty cycle transmission).
Compact "letter size" RF unit
While the IC-F9511HT provides 110W of RF output,
the RF unit dimensions are only 175 (W) × 279 (D)
× 60 (H) mm, so the IC-F9511HT can be fit into the
"letter size" console box. The controller and
speaker are separated from the main (RF) unit for speaker are separated from the main (RF) unit for
flexible installation.
Optional external speaker SP-30
Newly designed external speaker,
SP-30 offers 15W* typ. of higher
level audio with the IC-F9511HT for
improved operation in noisy
environment. i t
*Rated input of the SP-30 is 20W.
9-pin external speaker connector
The IC-F9511HT has a 9-pin speaker connector with
15W (typ.) BTL audio amplifier for connecting SP-
30 external speaker, horn honk and ignition
sensing line, etc,.
Separate Controller
The controller and speaker are separated from the
RF unit for flexible installation. A 5m (16.4ft)
separation cable is attached to the controller and
optional separation cable length is selectable from
1.9m (6.2ft), 3m (9.8ft) and 8m (26.2ft).
HM-148G
g g
SP-30
