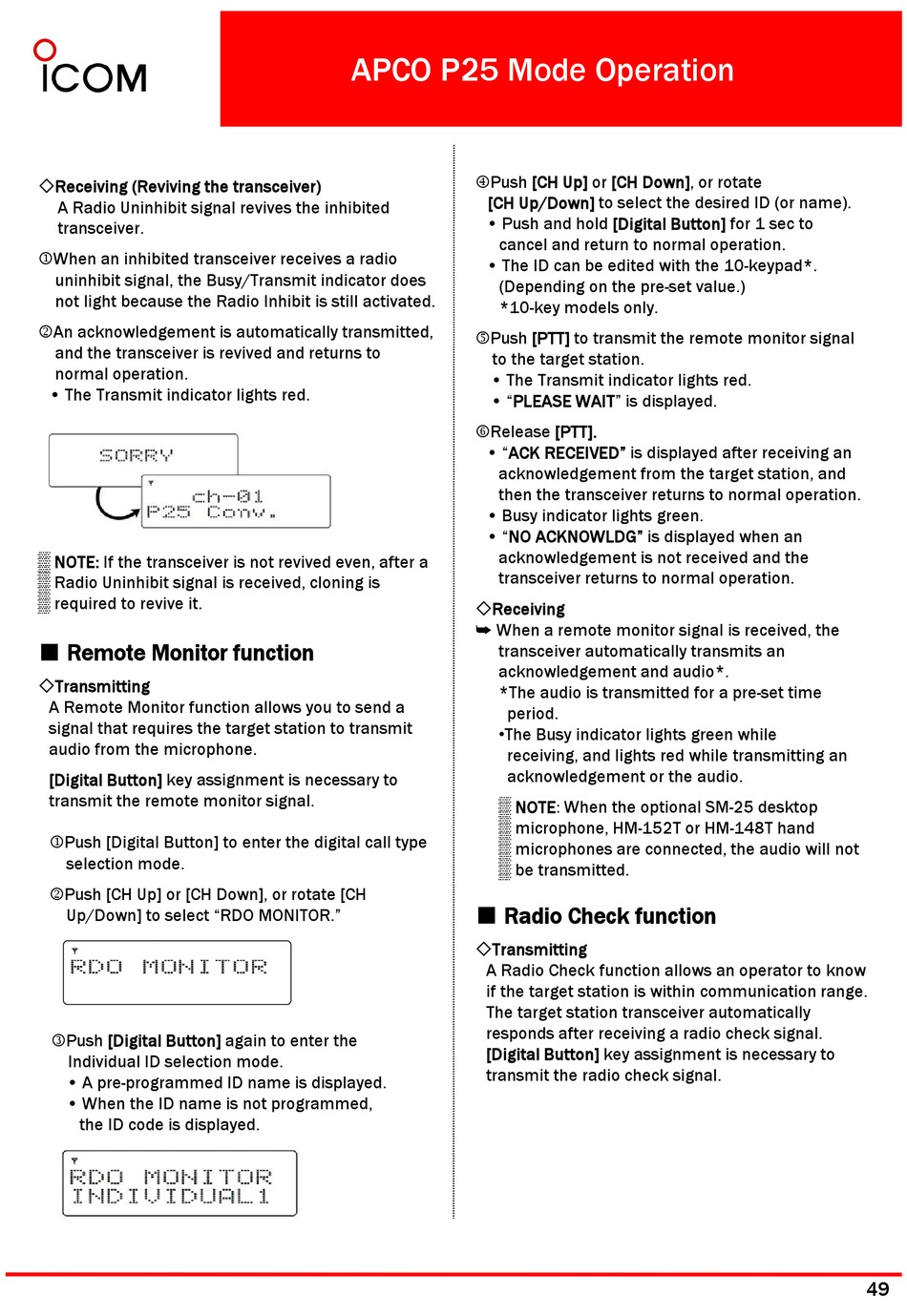

Icom IC-F9511T User Manual page 49

Receiving (Reviving the transceiver)
A Radio Uninhibit signal revives the inhibited
transceiver.
1When an inhibited transceiver receives a radio
uninhibit signal, the Busy/Transmit indicator does
not light because the Radio Inhibit is still activated.
2An acknowledgement is automatically transmitted, 2An acknowledgement is automatically transmitted
and the transceiver is revived and returns to
normal operation.
• The Transmit indicator lights red.
▒ NOTE: If the transceiver is not revived even, after a
▒ Radio Uninhibit signal is received, cloning is
▒ required to revive it.
■ Remote Monitor function ■ Remote Monitor function
Transmitting
A Remote Monitor function allows you to send a
signal that requires the target station to transmit
audio from the microphone.
[Digital Button] key assignment is necessary to
transmit the remote monitor signal.
1Push [Digital Button] to enter the digital call type
selection mode.
2Push [CH Up] or [CH Down], or rotate [CH
Up/Down] to select "RDO MONITOR."
3Push [Digital Button] again to enter the
Individual ID selection mode.
• A pre-programmed ID name is displayed.
• When the ID name is not programmed,
the ID code is displayed.
APCO P25 Mode Operation
4Push [CH Up] or [CH Down], or rotate
[CH Up/Down] to select the desired ID (or name).
• Push and hold [Digital Button] for 1 sec to
cancel and return to normal operation.
• The ID can be edited with the 10-keypad*.
(Depending on the pre-set value.)
*10-key models only.
5Push [PTT] to transmit the remote monitor signal 5P h [PTT] t t
to the target station.
• The Transmit indicator lights red.
• "PLEASE WAIT" is displayed.
6Release [PTT].
• "ACK RECEIVED" is displayed after receiving an
acknowledgement from the target station, and
then the transceiver returns to normal operation then the transceiver returns to normal operation.
• Busy indicator lights green.
• "NO ACKNOWLDG" is displayed when an
acknowledgement is not received and the
transceiver returns to normal operation.
Receiving
➥ When a remote monitor signal is received, the
transceiver automatically transmits an
acknowledgement and audio*.
*The audio is transmitted for a pre-set time
period.
•The Busy indicator lights green while
receiving, and lights red while transmitting an
acknowledgement or the audio.
▒ NOTE: When the optional SM-25 desktop
▒ microphone, HM-152T or HM-148T hand ▒
▒ microphones are connected, the audio will not
▒ be transmitted.
■ Radio Check function
Transmitting
A Radio Check function allows an operator to know
if the target station is within communication range.
The target station transceiver automatically
responds after receiving a radio check signal.
[Digital Button] key assignment is necessary to
transmit the radio check signal.
it th t it
y
ig l
