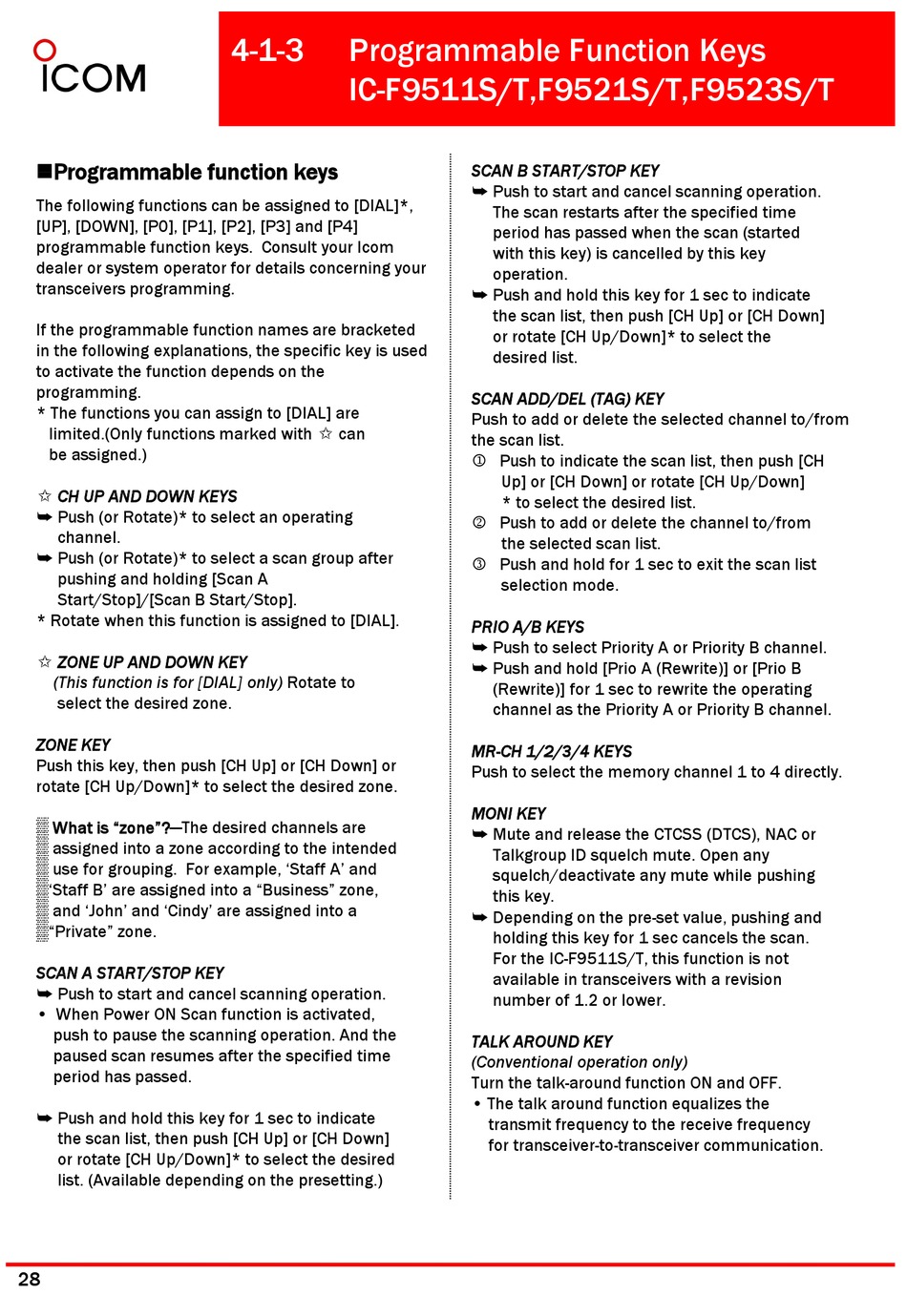

Icom IC-F9511T User Manual page 28

Programmable function keys Programmable function keys
The following functions can be assigned to [DIAL]*,
[UP], [DOWN], [P0], [P1], [P2], [P3] and [P4]
programmable function keys. Consult your Icom
dealer or system operator for details concerning your
transceivers programming.
If the programmable function names are bracketed If the programmable function names are bracketed
in the following explanations, the specific key is used
to activate the function depends on the
programming.
* The functions you can assign to [DIAL] are
limited.(Only functions marked with ✩ can
be assigned.)
✩ CH UP AND DOWN KEYS ✩ CH UP AND DOWN KEYS
➥ Push (or Rotate)* to select an operating
channel.
➥ Push (or Rotate)* to select a scan group after
pushing and holding [Scan A
Start/Stop]/[Scan B Start/Stop].
* Rotate when this function is assigned to [DIAL].
✩ ZONE UP AND DOWN KEY
(This function is for [DIAL] only) Rotate to
select the desired zone.
ZONE KEY
Push this key, then push [CH Up] or [CH Down] or
rotate [CH Up/Down]* to select the desired zone.
▒ What is "zone"?—The desired channels are
▒ assigned into a zone according to the intended
▒ use for grouping. For example, 'Staff A' and
▒'Staff B' are assigned into a "Business" zone,
▒ and 'John' and 'Cindy' are assigned into a
▒"Private" zone.
SCAN A START/STOP KEY SCAN A START/STOP KEY
➥ Push to start and cancel scanning operation.
• When Power ON Scan function is activated,
push to pause the scanning operation. And the
paused scan resumes after the specified time
period has passed.
➥ Push and hold this key for 1 sec to indicate
th the scan list, then push [CH Up] or [CH Down] li t th
or rotate [CH Up/Down]* to select the desired
list. (Available depending on the presetting.)
28
4-1-3 Programmable Function Keys
IC-F9511S/T,F9521S/T,F9523S/T
h [CH U ] [CH D ]
SCAN B START/STOP KEY SCAN B START/STOP KEY
➥ Push to start and cancel scanning operation.
The scan restarts after the specified time
period has passed when the scan (started
with this key) is cancelled by this key
operation.
➥ Push and hold this key for 1 sec to indicate
the scan list, then push [CH Up] or [CH Down]
or rotate [CH Up/Down]* to select the t t [CH U /D
desired list.
SCAN ADD/DEL (TAG) KEY
Push to add or delete the selected channel to/from
the scan list.
1 Push to indicate the scan list, then push [CH
Up] or [CH Down] or rotate [CH Up/Down]
* to select the desired list.
2 Push to add or delete the channel to/from
the selected scan list.
3 Push and hold for 1 sec to exit the scan list
selection mode.
PRIO A/B KEYS
➥ Push to select Priority A or Priority B channel. us to se ect o ty
➥ Push and hold [Prio A (Rewrite)] or [Prio B
(Rewrite)] for 1 sec to rewrite the operating
channel as the Priority A or Priority B channel.
MR-CH 1/2/3/4 KEYS
Push to select the memory channel 1 to 4 directly.
MONI KEY MONI KEY
➥ Mute and release the CTCSS (DTCS), NAC or
Talkgroup ID squelch mute. Open any
squelch/deactivate any mute while pushing
this key.
➥ Depending on the pre-set value, pushing and
holding this key for 1 sec cancels the scan.
For the IC-F9511S/T, this function is not
available in transceivers with a revision il bl i t i
number of 1.2 or lower.
TALK AROUND KEY
(Conventional operation only)
Turn the talk-around function ON and OFF.
• The talk around function equalizes the
transmit frequency to the receive frequency
for transceiver-to-transceiver communication.
