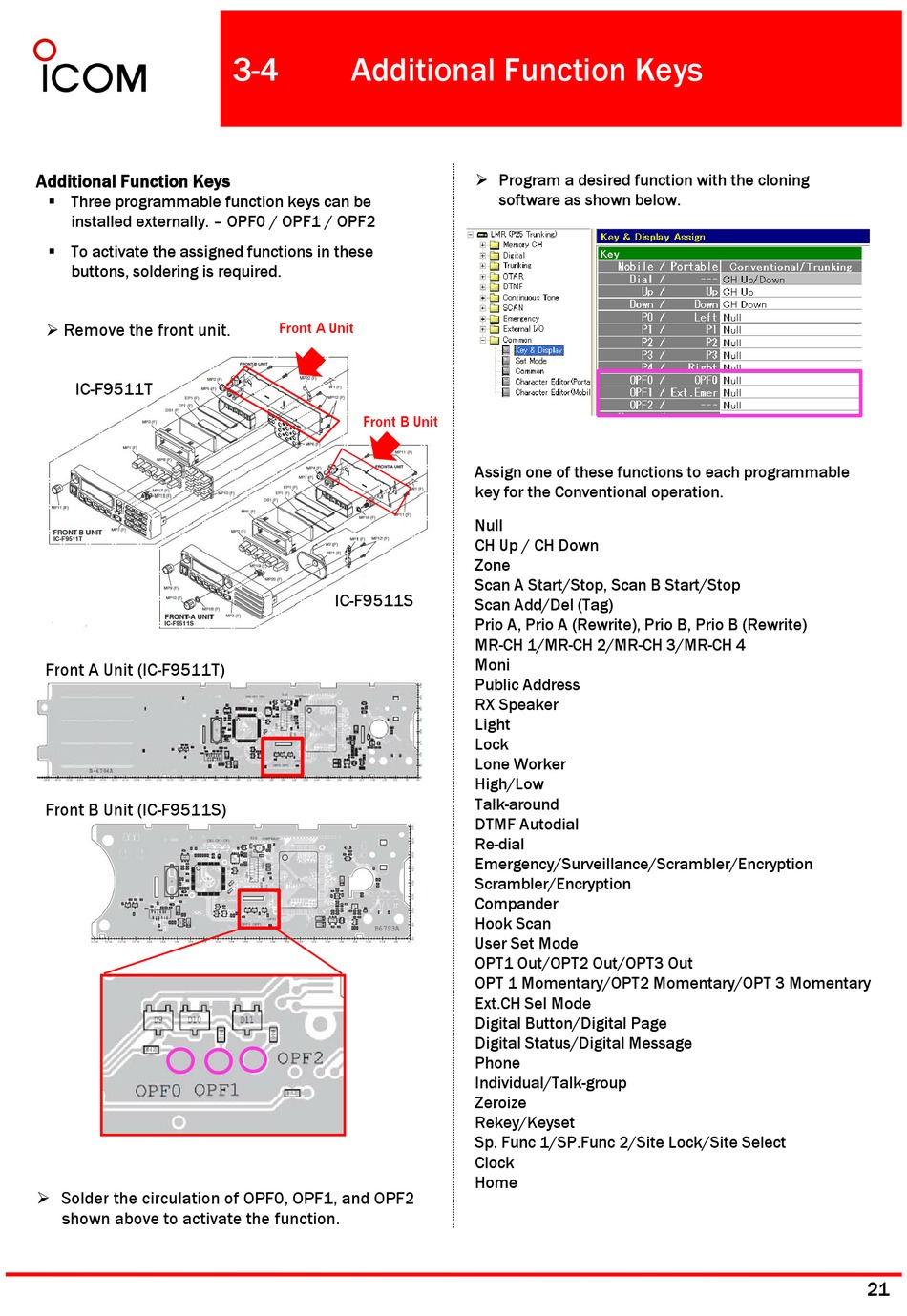

Additional Function Keys

Three programmable function keys can be
installed externally. – OPF0 / OPF1 / OPF2
To activate the assigned functions in these
buttons, soldering is required.
Remove the front unit. Remove the front unit.
IC-F9511T
Front A Unit (IC-F9511T)
Front B Unit (IC-F9511S)
Solder the circulation of OPF0, OPF1, and OPF2
shown above to activate the function.
3-4 Additional Function Keys
Front A Unit
Front B Unit
IC-F9511S
Program a desired function with the cloning
software as shown below.
Assign one of these functions to each programmable
key for the Conventional operation. key for the Conventional operation.
Null
CH Up / CH Down
Zone
Scan A Start/Stop, Scan B Start/Stop
Scan Add/Del (Tag)
Prio A, Prio A (Rewrite), Prio B, Prio B (Rewrite)
MR-CH 1/MR-CH 2/MR-CH 3/MR-CH 4
Moni
Public Address
RX Speaker
Light
Lock
Lone Worker
High/Low
Talk-around
DTMF Autodial DTMF A t di l
Re-dial
Emergency/Surveillance/Scrambler/Encryption
Scrambler/Encryption
Compander
Hook Scan
User Set Mode
OPT1 Out/OPT2 Out/OPT3 Out
OPT 1 Momentary/OPT2 Momentary/OPT 3 Momentary OPT 1 Momentary/OPT2 Momentary/OPT 3 Momentary
Ext.CH Sel Mode
Digital Button/Digital Page
Digital Status/Digital Message
Phone
Individual/Talk-group
Zeroize
Rekey/Keyset
Sp. Func 1/SP.Func 2/Site Lock/Site Select Sp Func 1/SP Func 2/Site Lock/Site Select
Clock
Home
