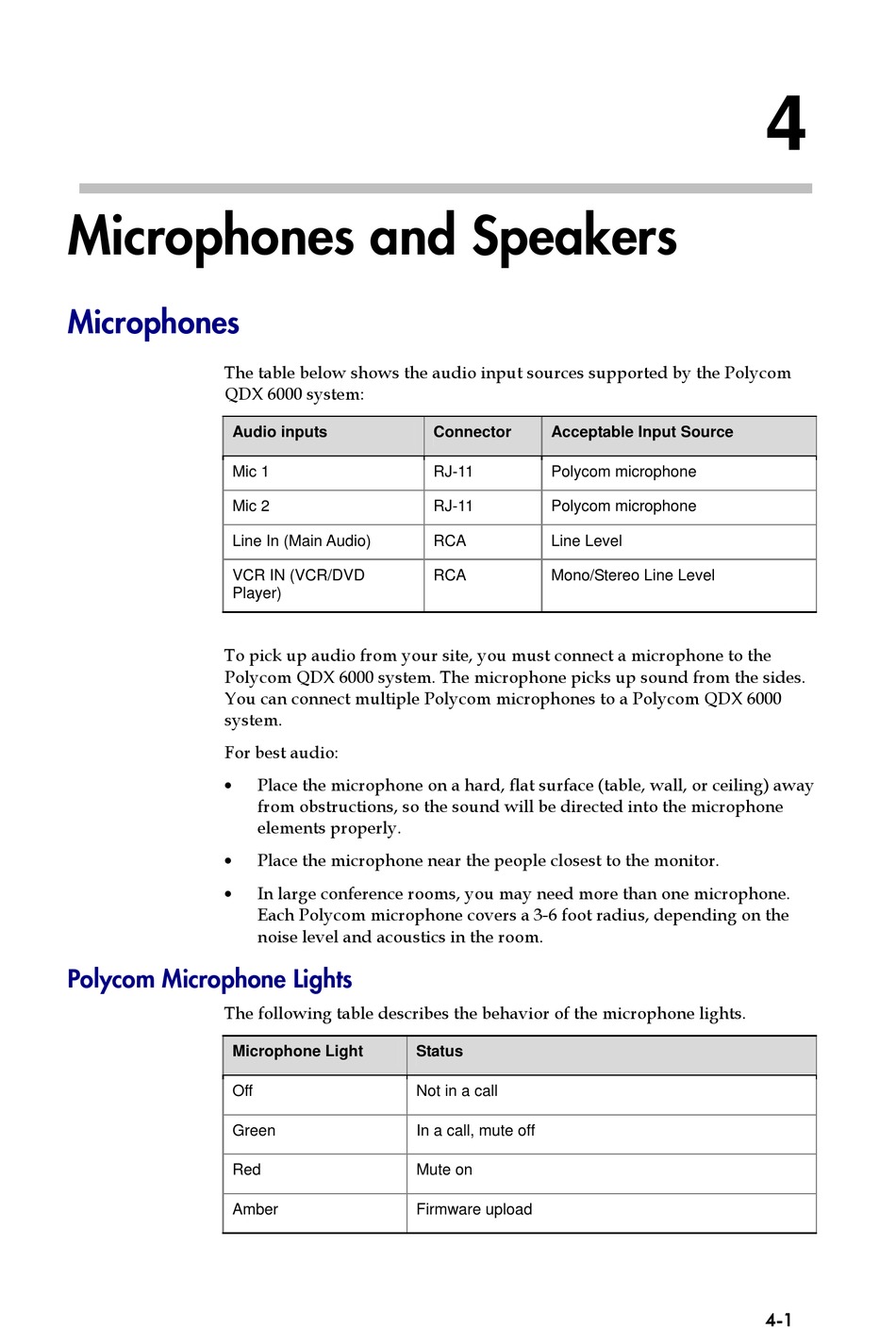

Microphones and Speakers

Microphones

The table below shows the audio input sources supported by the Polycom
QDX 6000 system:
Audio inputs
Mic 1
Mic 2
Line In (Main Audio)
VCR IN (VCR/DVD
Player)
To pick up audio from your site, you must connect a microphone to the
Polycom QDX 6000 system. The microphone picks up sound from the sides.
You can connect multiple Polycom microphones to a Polycom QDX 6000
system.
For best audio:




Polycom Microphone Lights

The following table describes the behavior of the microphone lights.
Microphone Light
Off
Green
Red
Amber
Place the microphone on a hard, flat surface (table, wall, or ceiling) away
from obstructions, so the sound will be directed into the microphone
elements properly.
Place the microphone near the people closest to the monitor.
In large conference rooms, you may need more than one microphone.
Each Polycom microphone covers a 3-6 foot radius, depending on the
noise level and acoustics in the room.
Status
Not in a call
In a call, mute off
Mute on
Firmware upload
Connector Acceptable Input Source
RJ-11 Polycom microphone
RJ-11 Polycom microphone
RCA Line Level
RCA Mono/Stereo Line Level
4
4-1
