System Back Panel View and
Cables

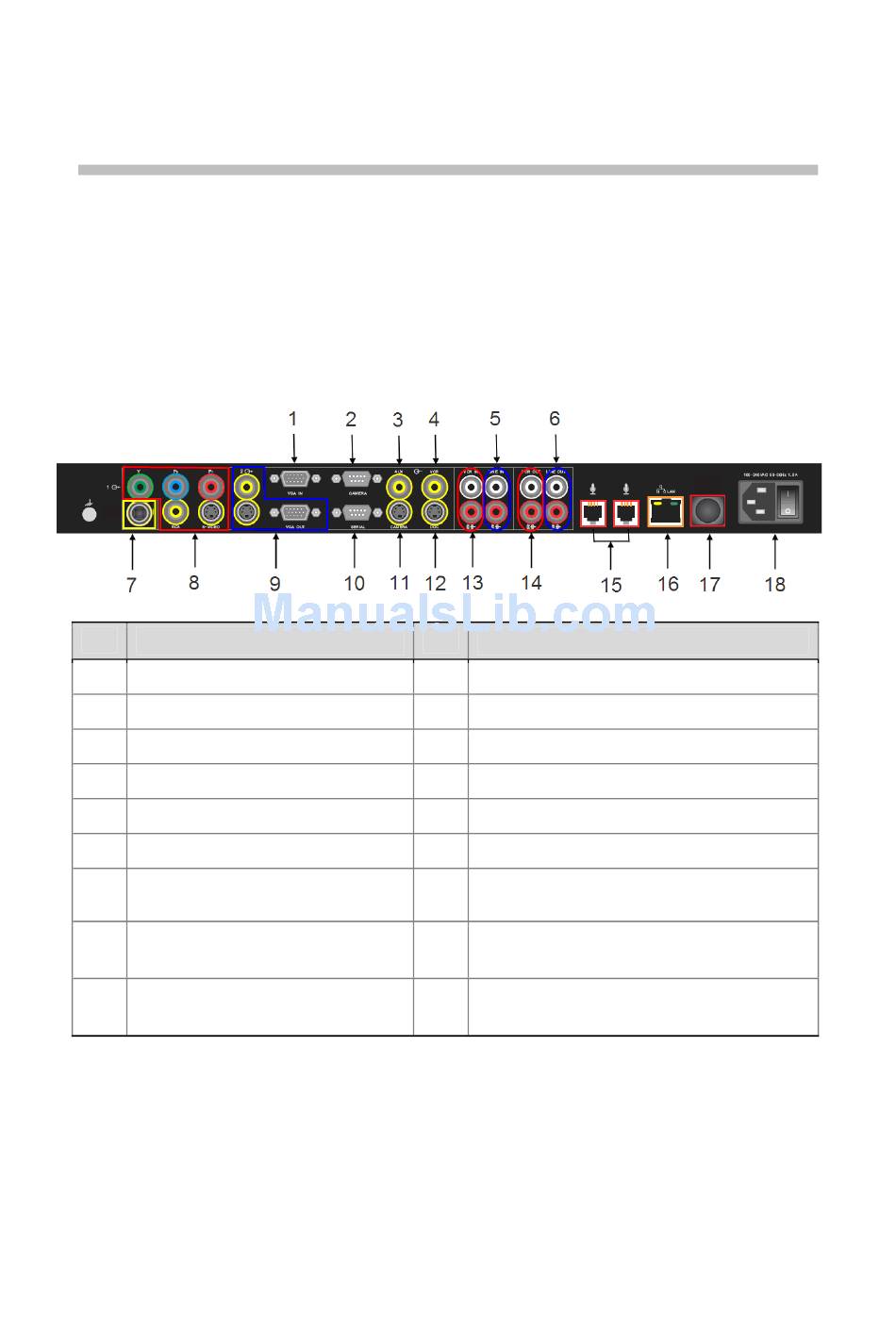

System Back Panel View

No.
Input or Output
1 VGA video input
2 Camera control interface
3 Video input for AUX camera
4 Video input for VCR/DVD devices
5 Audio input for line audio
6 Audio output for line audio
7 Video output for third monitor (not yet
supported)
8 Video output for main monitor
(YPrPb, RCA, and S-video)
9 Video output for second monitor
(RCA, S-video, and VGA)
No.
Input or Output
10 RS-232 serial port
11 Video input for Main camera
12 Video input for DOC camera
13 Audio input for VCR/DVD player
14 Audio output for VCR/DVD player
15 Audio input for microphone
16 LAN port for IP calls, People+Content IP, and
Polycom QDX 6000 Web Interface.
17 Audio input for microphone (not yet supported)
18 Power connector for power supply
Power switch
