Chapter 2: Jumpers and Connectors

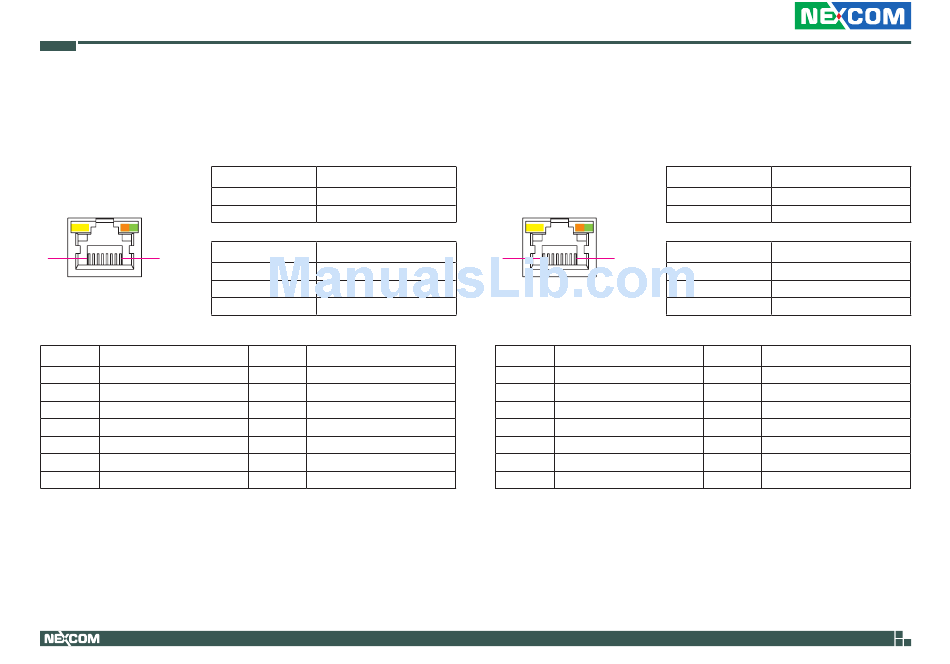

LAN2 Port

Connector type: RJ45 port with LEDs
Connector location: LAN1B
ACT LINK
8 1
Pin Definition
1 LAN2_MDI0P
3 LAN2_MDI1P
5 LAN2_TCTG
7 LAN2_MDI2P
9 LAN2_MDI3P
11 LAN2_LEDACT#
13 LAN2_LINK1G#
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Act Status
Flashing Yellow Data activity
Off No activity
Link Status
Steady Green 1G network link
Steady Orange 100Mbps network link
Off 10Mbps or no link
Pin Definition
2 LAN2_MDI0N
4 LAN2_MDI1N
6 LAN2_TCT
8 LAN2_MDI2N
10 LAN2_MDI3N
12 3VSB
14 LAN2_LINK100#

LAN3 Port

Connector type: RJ45 port with LEDs
Connector location: LAN1C
ACT LINK
8 1
Pin Definition
1 LAN3_MDI0P
3 LAN3_MDI1P
5 LAN3_TCTG
7 LAN3_MDI2P
9 LAN3_MDI3P
11 LAN3_LEDACT#
13 LAN3_LINK1G#
15
Act Status
Flashing Yellow Data activity
Off No activity
Link Status
Steady Green 1G network link
Steady Orange 100Mbps network link
Off 10Mbps or no link
Pin Definition
2 LAN3_MDI0N
4 LAN3_MDI1N
6 LAN3_TCT
8 LAN3_MDI2N
10 LAN3_MDI3N
12 3VSB
14 LAN3_LINK100#
