Chapter 2: Jumpers and Connectors

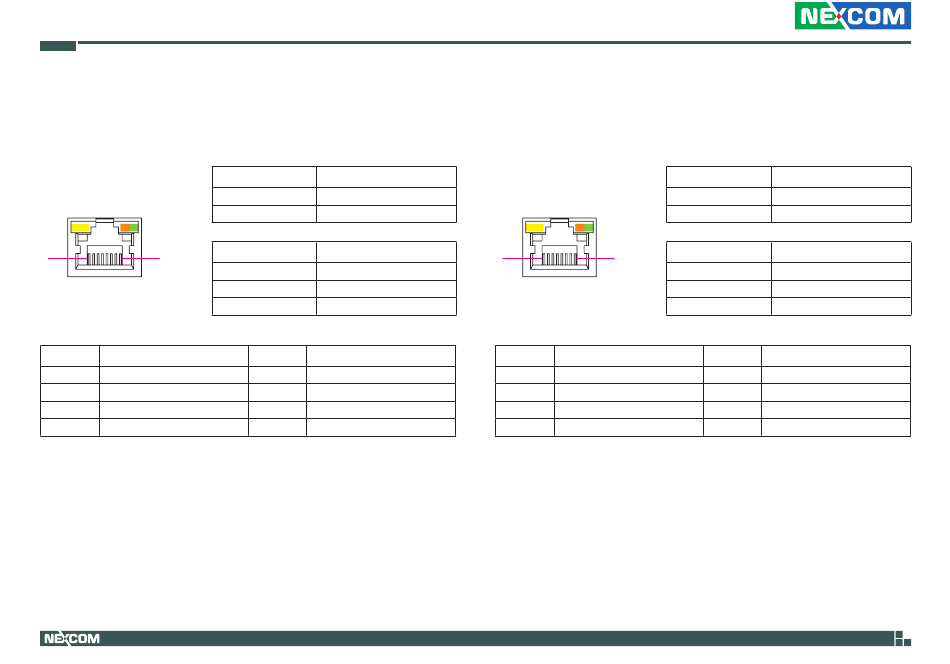

LAN1 Port
Support Wake on LAN (WOL)
Connector type: RJ45 port with LEDs
Connector location: LAN1
ACT
LINK
8
1
Pin
Definition
1
LAN1M0P
3
LAN1M1P
5
LAN1M2N
7
LAN1M3P
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Act
Status
Flashing Yellow
Data activity
Off
No activity
Link
Status
Steady Green
1G network link
Steady Orange
100Mbps network link
Off
10Mbps or no link
Pin
Definition
2
LAN1M0N
4
LAN1M2P
6
LAN1M1N
8
LAN1M3N
LAN2 Port
Connector type: RJ45 port with LEDs
Connector location: LAN2
ACT
LINK
8
1
Pin
Definition
1
LAN2M0P
3
LAN2M1P
5
LAN2M2N
7
LAN2M3P
17
Act
Status
Flashing Yellow
Data activity
Off
No activity
Link
Status
Steady Green
1G network link
Steady Orange
100Mbps network link
Off
10Mbps or no link
Pin
Definition
2
LAN2M0N
4
LAN2M2P
6
LAN2M1N
8
LAN2M3N
