b. Pull the cache module out of the DIMM slot (2).

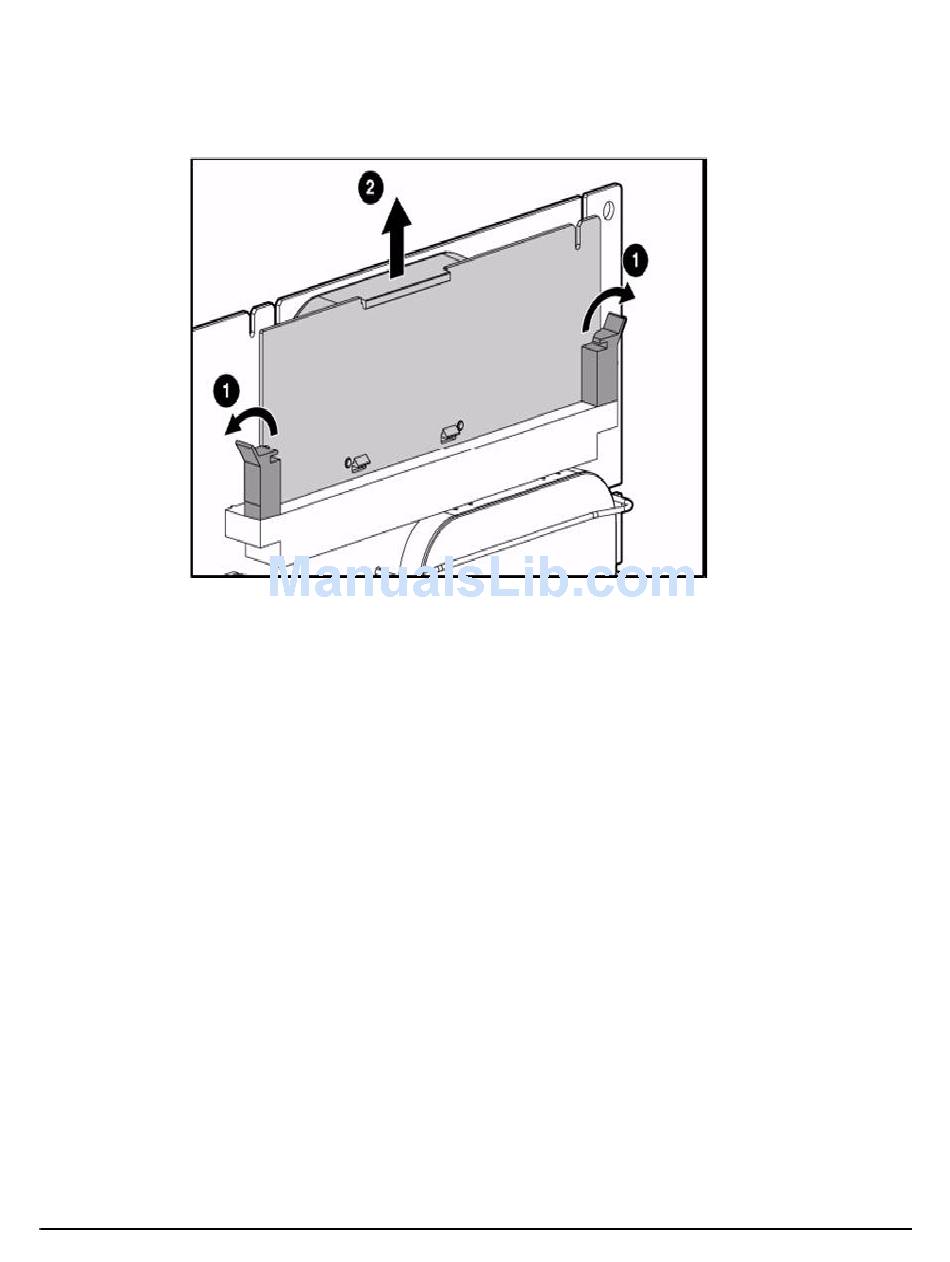

Figure D-11 Cache Module
Step 3. If you must replace the main cache battery, follow these steps:
a. Press the battery retainer tabs down, and push them through to the other side of the cache
board (1).
Appendix D
Core I/O Card Utilities
Smart Array P600 Controller
281
